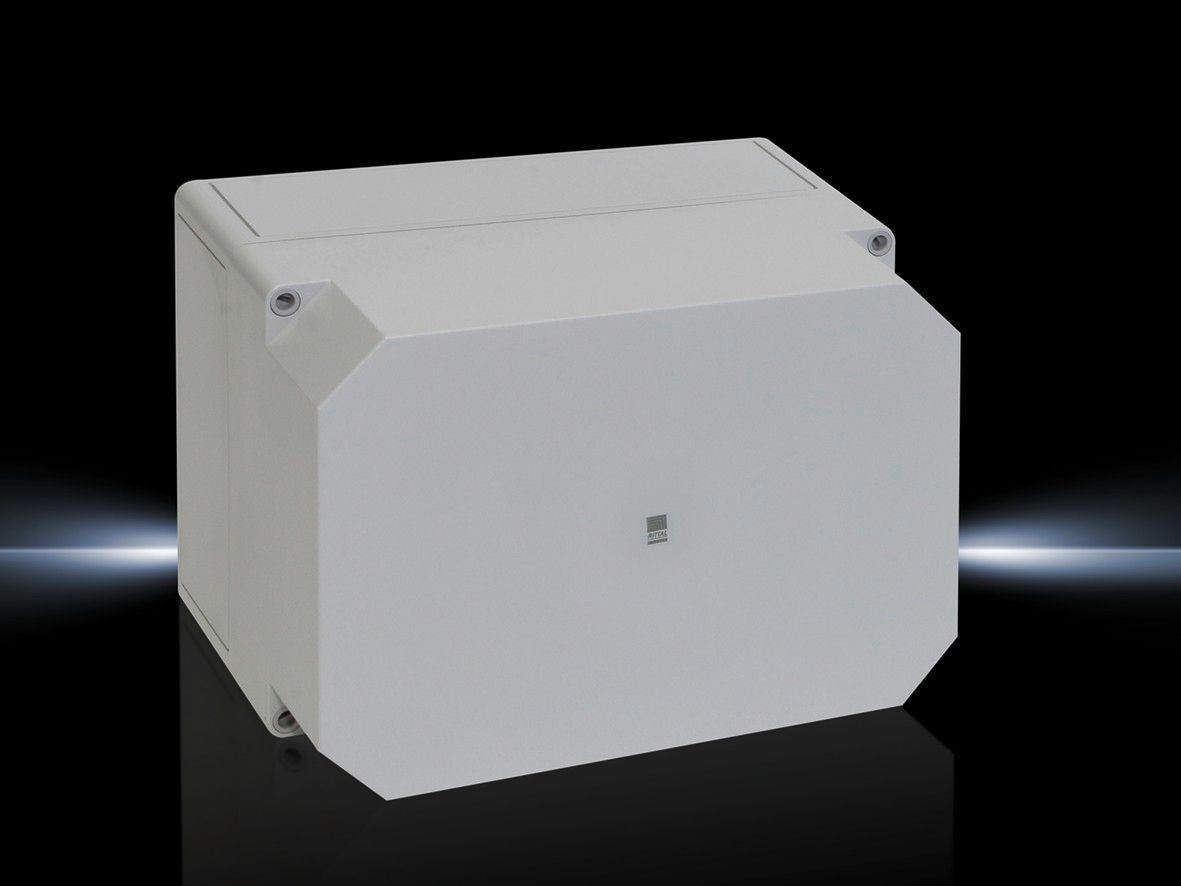

Rittal 9522000 PK Polycarbonate Enclosure - IP66

Part Number: 9522000
Manufacturer
Rittal
Part number
9522000
Alt Part Number
PK 9522.000

Quick Summary

Rittal PK 9522.000 polycarbonate enclosure protects electrical equipment in harsh industrial environments. End users often face dust, moisture, and downtime that slow productivity; this enclosure helps reduce ingress and maintenance intervals with rugged sealing and fast service capability. Key protections include IP66 rating, NEMA 4X enclosure integrity, and IK08 impact resistance, ensuring safe operation in demanding conditions. By combining a durable polymer body with quick-release fasteners and a grey cover, this solution delivers reliable enclosure performance while enabling faster panel servicing and lower total cost of ownership. For machine builders and industrial automation teams, it aligns with existing infrastructure and supports efficient, compliant panel protection.

Product Information

Extended Description

9522000 Rittal: PK Polycarbonate enclosure, WHD: 254x180x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9522.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 254 mm | Height: 180 mm | Depth: 165 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
1.16 kg
Customs tariff number
94037000
EAN
4028177139817
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 254x180x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate enclosure body with self-extinguishing material → Business Impact: Enhanced safety and durability in heat, dust, and chemical exposure environments → Application: Control cabinets in manufacturing cells and harsh industrial settings. Feature: IP66 and NEMA 4X protection → Business Impact: Superior ingress protection reduces downtime and unplanned maintenance → Application: Outdoor or damp indoor installations, corrosive or dusty lines. Feature: IK08 impact resistance → Business Impact: Better asset protection against accidental impacts during installation or service → Application: Robotic cells and high-traffic machinery. Feature: Operating temp -35 °C to 80 °C → Business Impact: Wide environmental compatibility lowers the need for alternative housings across sites → Application: Cold rooms, hot factories, and extreme climates. Feature: Wall-mount design with supplied screws and insulating bungs → Business Impact: Faster field deployment and simpler retrofits, reducing installation costs → Application: Industry standard machine enclosures with quick-change capability. Feature: Without knockouts and grey fibreglass-reinforced polycarbonate cover with PU seal → Business Impact: Customizable internal layouts, tight seal, and long-term moisture protection → Application: Custom control panels, power distribution, and sensor housings. Feature: Lightweight 1.16 kg per pack and compact WHD 254x180x165 mm → Business Impact: Easy handling and space-efficient mounting in dense control cabinets → Application: Compact automation cabinets and distributed I/O housings.

Get a Quick Quote for a Rittal 9522000

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Rittal 9522000? Enquire Now

FAQs

The PK 9522.000 is designed for wall mounting and ships with wall mounting screws and insulating bungs. Its compact WHD of 254x180x165 mm fits standard control cabinets, enabling straightforward retrofits and fast deployment in existing enclosures.
It offers IP66 and NEMA 4X protection with IK08 impact resistance, ensuring robust ingress protection and mechanical durability in dusty, wet, or outdoor environments.
Yes. Constructed from fibreglass-reinforced polycarbonate with a PU-sealed grey cover, it is rated for -35 to 80 °C and provides reliable protection against dust, water ingress, and minor impacts in outdoor or harsh indoor settings.
The enclosure measures 254 mm wide, 180 mm high, and 165 mm deep. It is supplied as a 1-piece pack with an approximate weight of 1.16 kg, facilitating easy handling during install and service.
A range of downloads is available, including PDF pages and technical details in multiple languages (CS, DA, DE, EN, ES, FI, FR, HU, IT, NL, NO, PL, RU, SV, TR, ZH) to assist with installation, compliance, and maintenance.
