Rittal PK 9522.100 Enclosure - IP66 NEMA 4X
Part Number: 9522100
Manufacturer
Rittal
Part number
9522100
Alt Part Number
PK 9522.100
Quick Summary
Rittal PK 9522.100 enclosure is a rugged wall-mounted housing designed for compact automation panels in harsh environments. Designed to simplify field service, it features quick-release cover screws that slash maintenance time and minimize downtime during cabinet access. Engineered for reliability, it carries IP66 ingress protection, NEMA 4X corrosion resistance, and IK08 impact protection, meeting stringent industrial standards. Constructed from fibreglass-reinforced polycarbonate with a transparent cover, it tolerates wide temperatures (-35 °C to +80 °C) and resists everyday wear while maintaining visibility for indicators and controls. The enclosure ships with mounting screws and insulating bungs, and its compact WHD footprint fits tight automation frames, helping reduce enclosure footprint and total cost of ownership.
Product Information
Extended Description

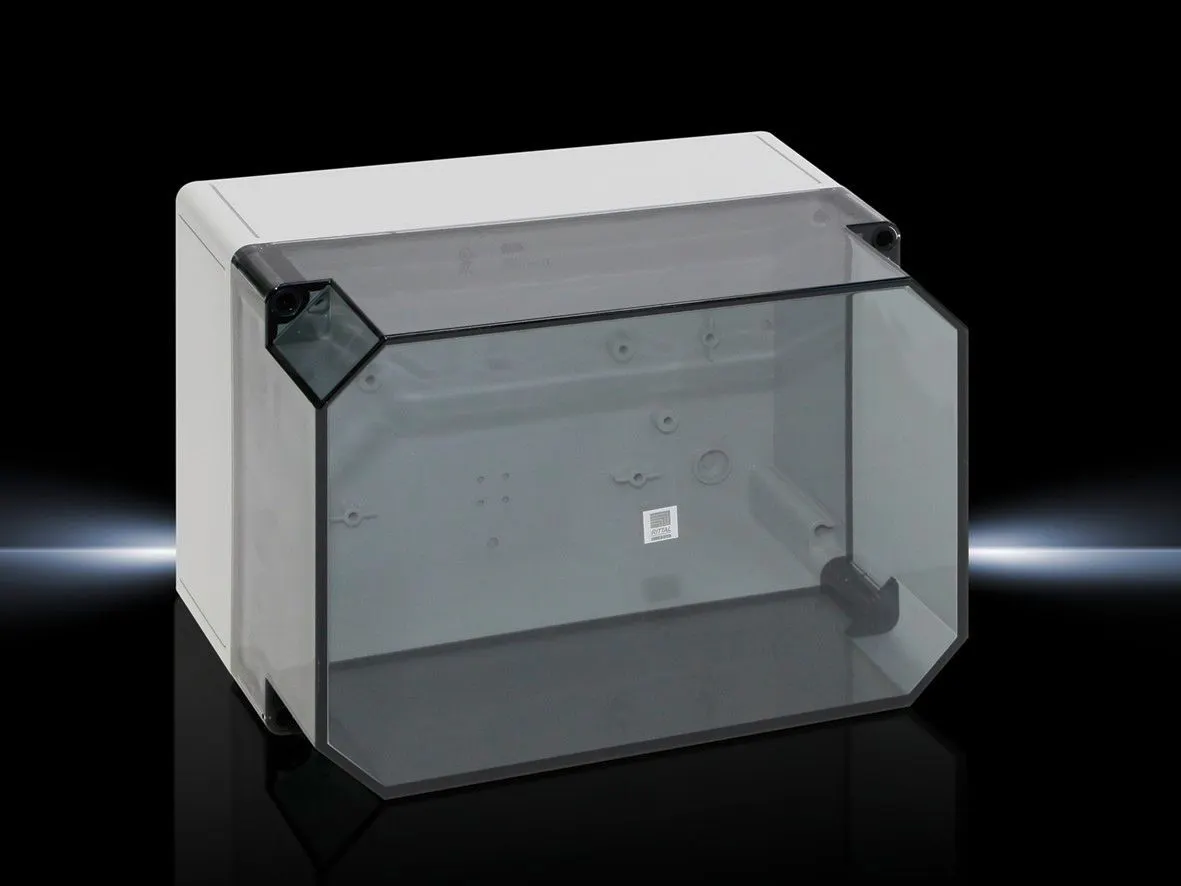

9522100 Rittal: PK Polycarbonate enclosure, WHD: 254x180x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Article number
PK 9522.100
Design
PK enclosure with transparent cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover transparent: Polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 254 mm | Height: 180 mm | Depth: 165 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
1.12 kg
Customs tariff number
94037000
EAN
4028177139831
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 254x180x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
The fibreglass-reinforced polycarbonate enclosure with a transparent cover delivers exceptional mechanical strength and clear visibility to indicators. This combination reduces inspection time and minimizes downtime in outdoor cabinets and washdown areas, where visibility matters for quickly confirming status indicators and controls. IP66 protection, NEMA 4X corrosion resistance, and IK08 impact rating provide robust ingress protection and mechanical defense against harsh environments. This means longer service life and lower replacement costs in steelworks, chemical plants, and outdoor installations. Quick-release cover screws streamline maintenance, enabling faster access without compromising sealing. In practice, technicians complete cabinet servicing in less time, improving overall plant uptime and reducing the risk of human error during reassembly. Wide operating temperature range of -35 to 80 °C supports reliable operation in exposed or unconditioned spaces, reducing the need for separate climate control or protective housings. Compact WHD of 254 x 180 x 165 mm and a modest weight fit tight automation frames while maintaining adequate internal space for compact controllers and wiring. In addition, included accessories—insulating bungs and wall-mount screws—simplify installation and ensure compliant mounting on various surfaces, enhancing installation versatility.
Get a Quick Quote for a Rittal 9522100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9522100?
Enquire Now
FAQs
PK 9522.100 is designed for wall mounting and ships with enclosure, cover screws, and insulating bungs for wall mounting screws. The footprints are 254 mm wide, 180 mm high, and 165 mm deep, with a weight of 1.12 kg per pack. No knockouts are present, simplifying surface mounting and reducing the need for additional fabrication. For installation, simply align, fasten with the supplied screws, and seal with the foam seal present on the transparent cover. This minimizes field assembly complexity and speeds up commissioning.
The PK 9522.100 enclosure provides IP66 ingress protection and NEMA 4X corrosion resistance, with IK08 impact protection. It operates reliably from -35 °C to +80 °C, making it suitable for outdoor installations, washdown zones, and devices exposed to wide temperature swings. The fibreglass-reinforced polycarbonate material contributes to durability in challenging environments while maintaining visibility through the transparent cover.
Yes. The enclosure is designed for harsh environments, featuring IP66 protection and NEMA 4X corrosion resistance, plus IK08 impact protection. Its fibreglass-reinforced polycarbonate construction and transparent cover help protect internal electronics from dust, water, and mechanical impact while allowing quick visual checks of status indicators. These attributes make it well-suited for outdoor, washdown, and dusty production areas.
The quick-release cover screws enable rapid access to internal components without lengthy fastener removal. This reduces maintenance time, accelerates routine inspections, and lowers downtime during servicing. Coupled with a secure all-round PU seal, the enclosure maintains its protective performance after reassembly, supporting faster turnaround without sacrificing IP66/NEMA 4X integrity.
The enclosure uses fibreglass-reinforced polycarbonate for the body and a transparent polycarbonate cover with a foamed-in PU seal, delivering robust electrical insulation and environmental sealing. Its self-extinguishing polycarbonate and insulating bungs contribute to safety in electrical installations, while the overall design supports compliant, durable operation in demanding industrial settings.
