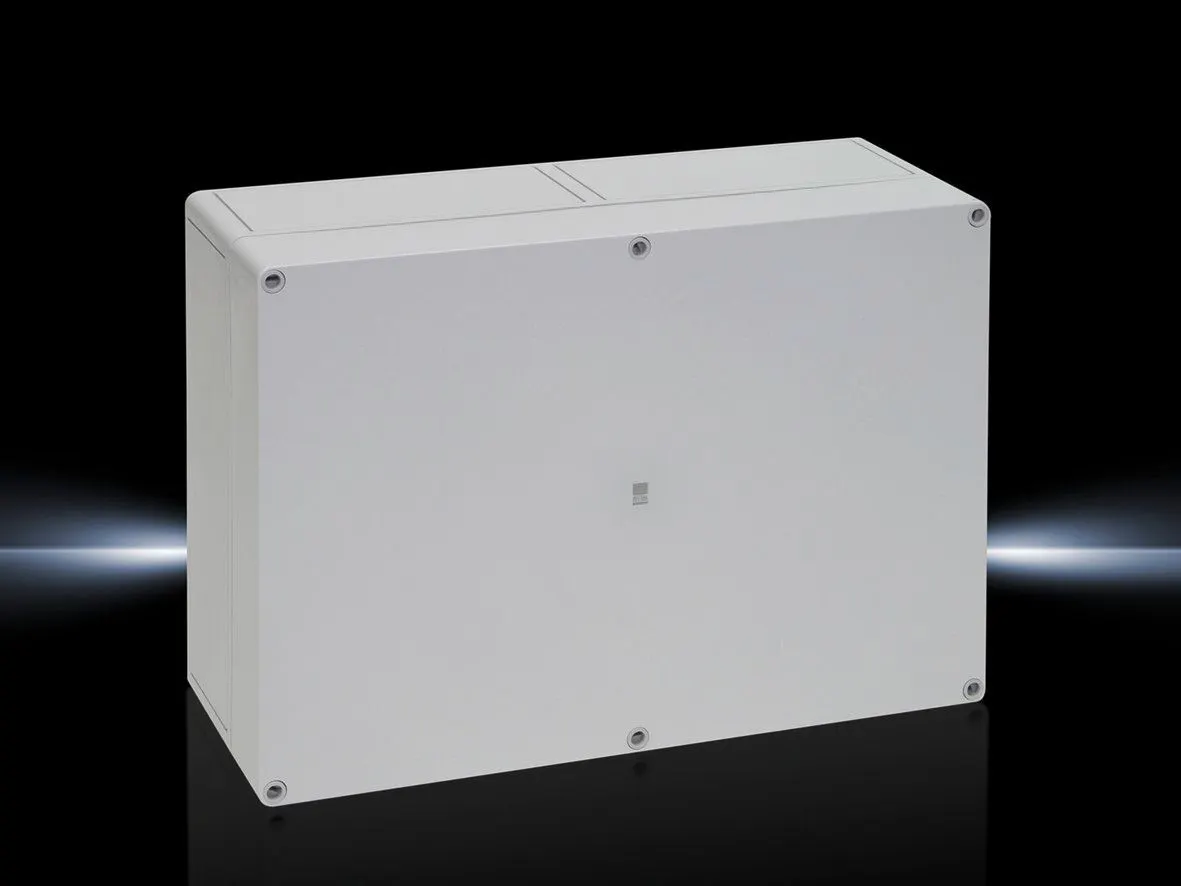

Rittal PK 9523.000 Wall-Mounted Enclosure - IP66
Part Number: 9523000
Manufacturer
Rittal
Part number
9523000
Alt Part Number
PK 9523.000
Quick Summary
PK 9523.000 wall-mounted enclosure protects sensitive electronics in harsh industrial environments. Maintenance downtime is often caused by difficult access and slow opening of covers. With IP66 and NEMA 4X ratings, IK08 impact resistance, and an operating range of -35 to 80 °C, this enclosure delivers reliable protection for demanding applications. The fibreglass-reinforced polycarbonate body and grey cover feature a self-extinguishing material and a robust PU seal for long-term safety. Quick-release fasteners enable rapid maintenance, reducing service time and equipment exposure. Ideal for control panels, automation cabinets, and instrumentation on factory floors or outdoor sites, PK 9523.000 combines durability with ease of installation and predictable lifecycle costs.
Product Information
Extended Description
9523000 Rittal: PK Polycarbonate enclosure, WHD: 360x254x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9523.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 360 mm | Height: 254 mm | Depth: 111 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
1.62 kg
Customs tariff number
94037000
EAN
4028177139855
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 360x254x111 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
The enclosure ships without knockouts, which reduces unintended entry points and helps preserve sealing integrity until you plan exact cable entry. This design drives longer service intervals and less dust or water ingress during routine maintenance. The fibreglass-reinforced polycarbonate construction provides high impact resistance, UV stability, and chemical resilience, delivering reliable performance in outdoor or washdown environments while maintaining a lighter footprint for easier handling. A grey solid cover with a foam-in PU seal offers superior sealing against dust and moisture, which translates into fewer field failures and more consistent internal climate control for critical components. Quick-release fasteners enable fast lid access, speeding inspections and firmware updates without compromising safety. The 360x254x111 mm footprint supports compact control panels and instrumentation enclosures, while the 1.62 kg weight per pack simplifies mounting and relocation in dynamic production lines. This product is particularly well-suited for automation cabinets, panel builders, and industrial equipment housings where dependable protection and fast service are essential.
Get a Quick Quote for a Rittal 9523000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9523000?
Enquire Now
FAQs
PK 9523.000 is designed without knockouts to maintain sealing integrity. For entry, use external gland plates or suitable external glands, ensuring the PU seal remains intact and IP66/NEMA 4X protection is preserved.
The enclosure operates from -35 °C to 80 °C, enabling protection for electronics in freezer, tropical, or high-heat industrial zones. This range helps prevent performance degradation and extends component lifecycles in challenging plants.
It provides IP66 protection for dust and water ingress and NEMA 4X for washdown and corrosion resistance, plus IK08 impact resistance, ensuring robust protection for cabinet-mounted equipment.
The enclosure and cover are made from fibreglass-reinforced polycarbonate with a fully all-round foamed-in PU seal and polyamide cover screws, delivering high impact resistance and reliable sealing across temperature and humidity variations.
Best for control panels, automation cabinets, and instrumentation housings in harsh industrial environments, including outdoor or washdown areas, where quick maintenance and durable protection are priorities.
