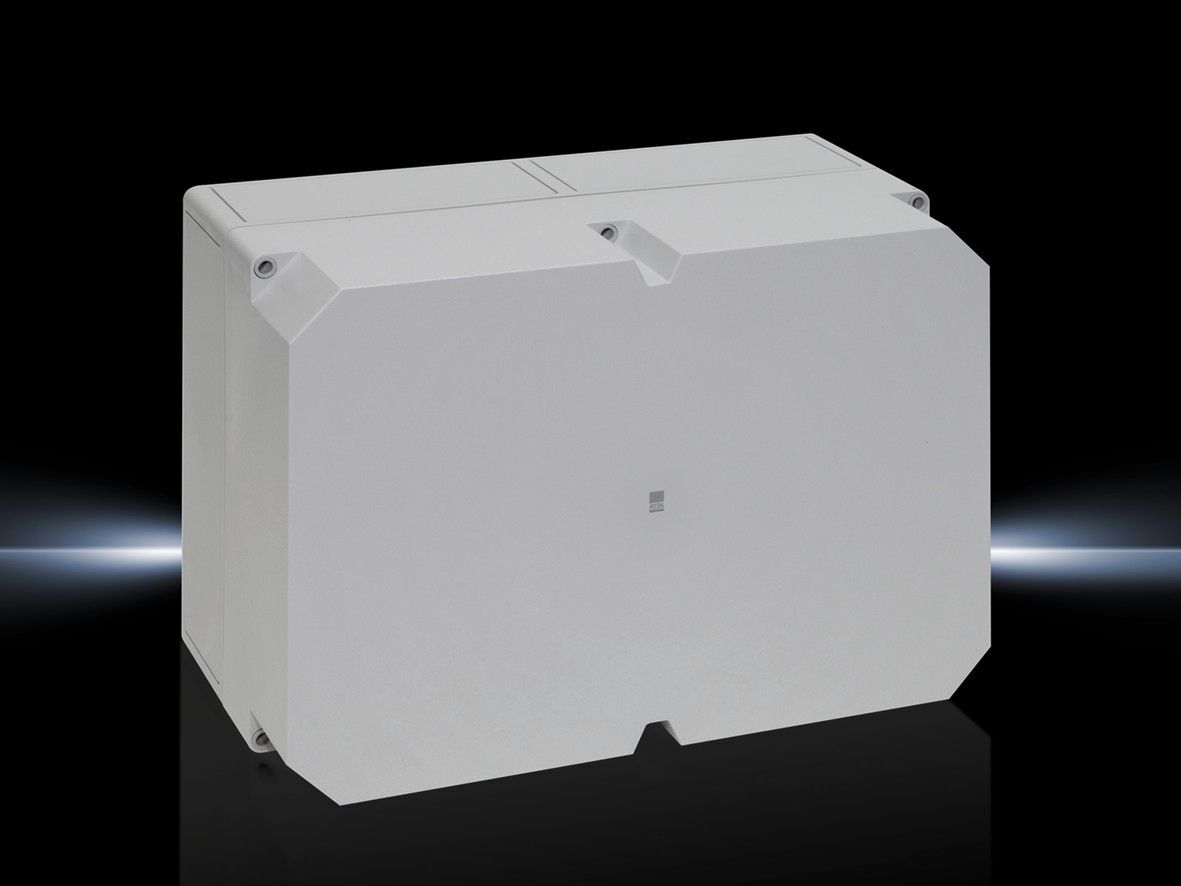

Rittal PK 9524.000 Wall-mounted Enclosure - IP66
Part Number: 9524000
Manufacturer
Rittal
Part number
9524000
Alt Part Number
PK 9524.000
Quick Summary
Rittal PK 9524.000 wall-mounted enclosure protects electrical components in demanding industrial environments. This compact fibreglass-reinforced polycarbonate enclosure keeps control panels safe while offering fast maintenance with quick-release cover screws. Operators and maintenance teams benefit from the robust IP66 and NEMA 4X protection, plus IK08 impact resistance, ensuring reliability in dusty, wet, or harsh conditions. The material is self-extinguishing for safety, and the enclosure maintains performance across a wide operating temperature range of -35 °C to 80 °C. By combining rugged protection with simple installation and configurable space, it reduces downtime and supports compliant, long-term automation investments. This fits industrial automation and electrical infrastructure applications where durability and safety are non-negotiable.
Product Information
Extended Description
9524000 Rittal: PK Polycarbonate enclosure, WHD: 360x254x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Article number
PK 9524.000
Design
PK enclosure with solid cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover grey: Fibreglass-reinforced polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 360 mm | Height: 254 mm | Depth: 165 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
2.02 kg
Customs tariff number
94037000
EAN
4028177139893
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 360x254x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with grey cover
Feature: Fibreglass-reinforced polycarbonate with self-extinguishing properties. Business impact: enhanced fire safety, longer service life, and reduced maintenance costs in demanding environments. Application: ideal for outdoor control panels and harsh indoor facilities in manufacturing and process automation. Feature: IP66 and NEMA 4X protection with an all-round PU seal. Business impact: trusted ingress protection against dust, water spray, and corrosion, supporting compliance with harsh-duty enclosures. Application: machine guarding, outdoor cabinets, and chemical plants. Feature: IK08 impact resistance with a compact 360x254x165 mm footprint. Business impact: rugged enclosure that tolerates knocks from routine maintenance without compromising seals. Application: space-constrained panels in crowded automation lines. Feature: Quick-release cover screws and a grey cover design. Business impact: faster maintenance and reduced downtime during servicing. Application: frequent field servicing and routine inspections across assembly lines. Feature: Supplied with cover screws and insulating bungs; without knockouts. Business impact: simple installation with configurable space for installed hardware; reduces preassembly time. Application: standard wall mounting in workshops and facilities. Feature: Operating range -35 to 80 °C and weight 2.02 kg. Business impact: reliable operation across diverse climates and easy handling during installation. Application: automotive, process, and general industrial automation environments.
Get a Quick Quote for a Rittal 9524000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9524000?
Enquire Now
FAQs
The PK 9524.000 ships as an enclosure with cover screws and insulating bungs for wall mounting screws. It comes without knockouts, so you can configure internal space to your installed equipment. Mounting is straightforward on standard walls or panels, with a footprint of 360x254x165 mm and a weight of about 2.02 kg per pack.
Yes. It provides IP66 ingress protection and NEMA 4X sealing, along with IK08 impact resistance, enabling dependable performance in dusty, wet, or corrosive environments. The operating temperature range from -35 °C to 80 °C supports use across diverse industrial locations.
The unit is supplied with the enclosure, grey cover, cover screws, and insulating bungs for wall mounting screws. If you need to mount in tight spaces, the 360x254x165 mm dimensions help plan enclosure layout alongside other components.
The enclosure features IP66 and NEMA 4X protection, IK08 impact resistance, and is documented with ETIM EC000261 and ECLASS 27180101 references. These certifications support compliance across many European and global industrial systems.
Quick-release cover screws enable faster maintenance cycles, reducing downtime during servicing. The self-extinguishing material and robust sealing improve reliability and safety, contributing to lower repair costs and longer intervals between replacements in automation environments.
