Rittal 9524100 PK Enclosure Wall-Mount - IP66 NEMA 4X
Part Number: 9524100
Manufacturer
Rittal
Part number
9524100
Alt Part Number
PK 9524.100
Quick Summary
Rittal PK 9524.100 polycarbonate enclosure is a rugged wall-mounted housing for electrical and control gear in demanding industrial settings. It helps minimize downtime by combining a transparent cover with quick-release fasteners for fast maintenance while keeping sensitive electronics shielded from dust, moisture, and contaminants. The enclosure delivers robust protection with IP66 ingress protection and NEMA 4X rating, plus IK08 impact resistance, ensuring durability in harsh environments. The self-extinguishing material enhances safety in potentially flammable areas, and the wide operating temperature range (-35 °C to +80 °C) supports diverse plant climates. For system integrators and maintenance teams, this enclosure offers reliable protection, ease of installation, and long-term cost savings through reduced service interruptions.
Product Information
Extended Description

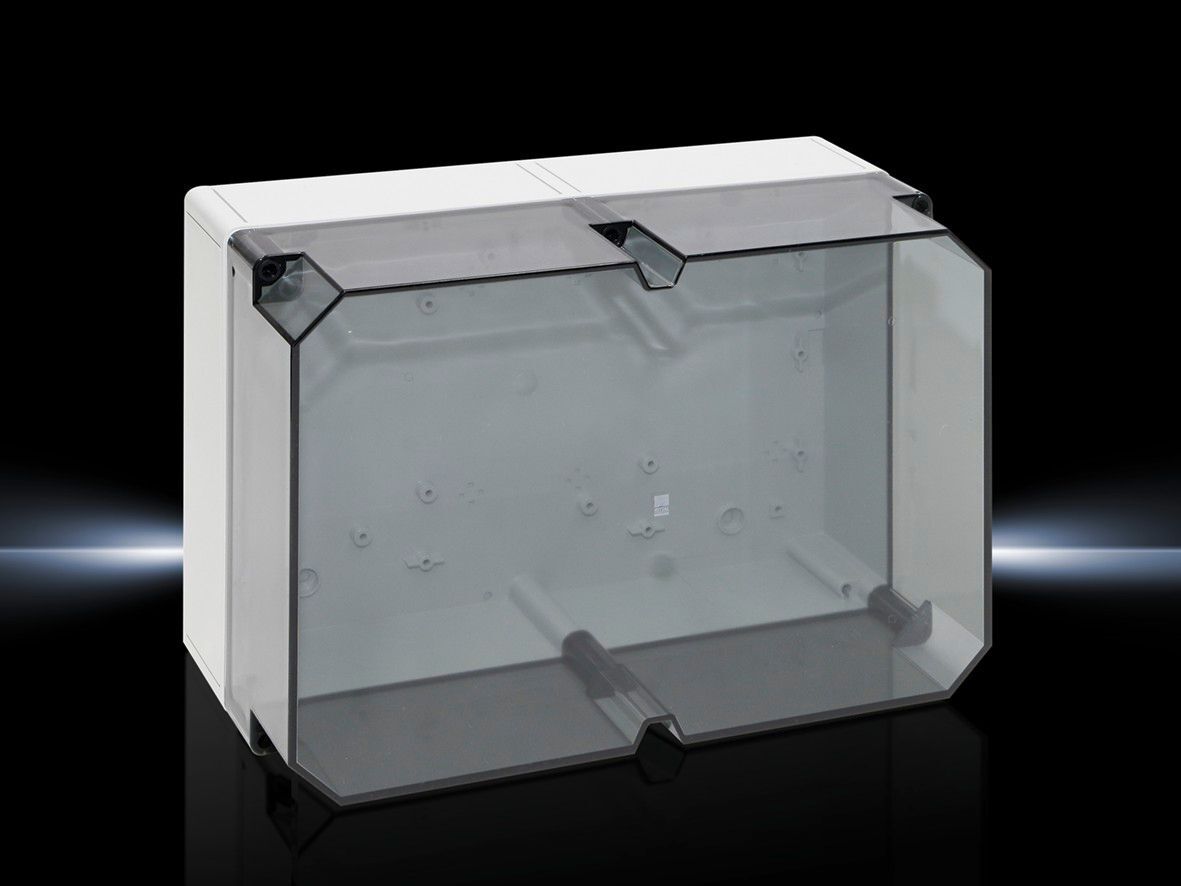

9524100 Rittal: PK Polycarbonate enclosure, WHD: 360x254x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Article number
PK 9524.100
Design
PK enclosure with transparent cover
Product description
Use within the ambient temperature range: -35 °C...+80 °C. The specified temperatures may be limited by the installed equipment.
Material
Enclosure: Fibreglass-reinforced polycarbonate | Cover transparent: Polycarbonate, all-round foamed-in PU seal | Cover screws: Polyamide | Insulating bungs: Polyethylene
Colour
RAL 7035
Supply includes
Enclosure with cover | Cover screws | Insulating bungs for wall mounting screws
Protection category NEMA
NEMA 4X
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 360 mm | Height: 254 mm | Depth: 165 mm
Operating temperature range
-35 °C...80 °C
Basic material
Polycarbonate
Packs of
1 pc(s).
Weight/pack
1.92 kg
Customs tariff number
94037000
EAN
4028177139916
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
PK Polycarbonate enclosure, WHD: 360x254x165 mm, fibreglass-reinforced polycarbonate, without knockouts, with transparent cover
Feature — Fibreglass-reinforced polycarbonate enclosure with a transparent cover delivers high strength while remaining lightweight. Business impact — This combination reduces the risk of damage in harsh environments and lowers replacement and maintenance costs. Application — Ideal for protecting electrical panels and control gear on factory floors, outdoor sites, and process lines where visibility of internal components is beneficial. Feature — IP66 ingress protection and NEMA 4X rating create a sealed, wash-down-ready enclosure. Business impact — Minimizes ingress-related downtime and simplifies regulatory compliance for moisture, dust, and chemical exposure. Application — Suitable for outdoor installations, damp plant areas, and sanitation-critical environments. Feature — IK08 impact resistance and self-extinguishing material enhance safety and durability. Business impact — Reduces fire risk and damage from incidental impacts, extending service life. Application — Ideal for busy production areas and environments with moving machinery or forklift traffic. Feature — Quick-release fasteners enable fast, tool-free cover access. Business impact — Cuts maintenance downtime and speeds routine inspections or component replacements. Application — Fits routine PLC programming, sensor calibration, and protective device checks without extended shutdowns. Feature — Wide operating temperature range (-35 °C to +80 °C) and standard color (RAL 7035) support consistent performance. Business impact — Ensures reliable operation across multi-shift climates and standardized installations, reducing customization. Application — Suitable for cold rooms, hot processes, and multi-station deployments where consistent aesthetics matter. Feature — Wall-mount design with provided screws and insulating bungs simplifies installation. Business impact — Speeds retrofit and reduces on-site procurement needs. Application — Ideal for rapid deployment across multiple panels or lines in a plant.
Get a Quick Quote for a Rittal 9524100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9524100?
Enquire Now
FAQs
The PK 9524.100 is designed for wall mounting and ships with enclosure, cover screws, and insulating bungs for wall mounting screws. It fits standard flat mounting surfaces and uses the included fasteners for quick, secure installation. With no knockouts by default, you can tailor access points as needed while maintaining ingress protection.
This enclosure offers IP66 ingress protection and a NEMA 4X rating for dust-tight, water- and wash-down resistant performance. IK08 provides robust impact resistance, and the fibreglass-reinforced polycarbonate construction ensures durability in demanding environments such as factories and outdoor installations.
Yes. With IP66 and NEMA 4X protection, plus a wide operating temperature range of -35 °C to 80 °C, it is well-suited for outdoor or damp indoor areas. The transparent cover enables inspection without opening the enclosure, while the self-extinguishing material enhances safety in potentially hazardous environments.
Quick-release fasteners allow tool-free access to the contents, significantly reducing maintenance time. This enables faster PLC updates, sensor checks, and routine inspections, minimizing production interruptions and improving overall uptime for critical control panels.
The enclosure ships at approximately 1.92 kg per pack and has dimensions of 360 mm width, 254 mm height, and 165 mm depth. This compact footprint facilitates retrofit and multi-site deployments, while the included mounting screws and insulating bungs simplify initial installation.
