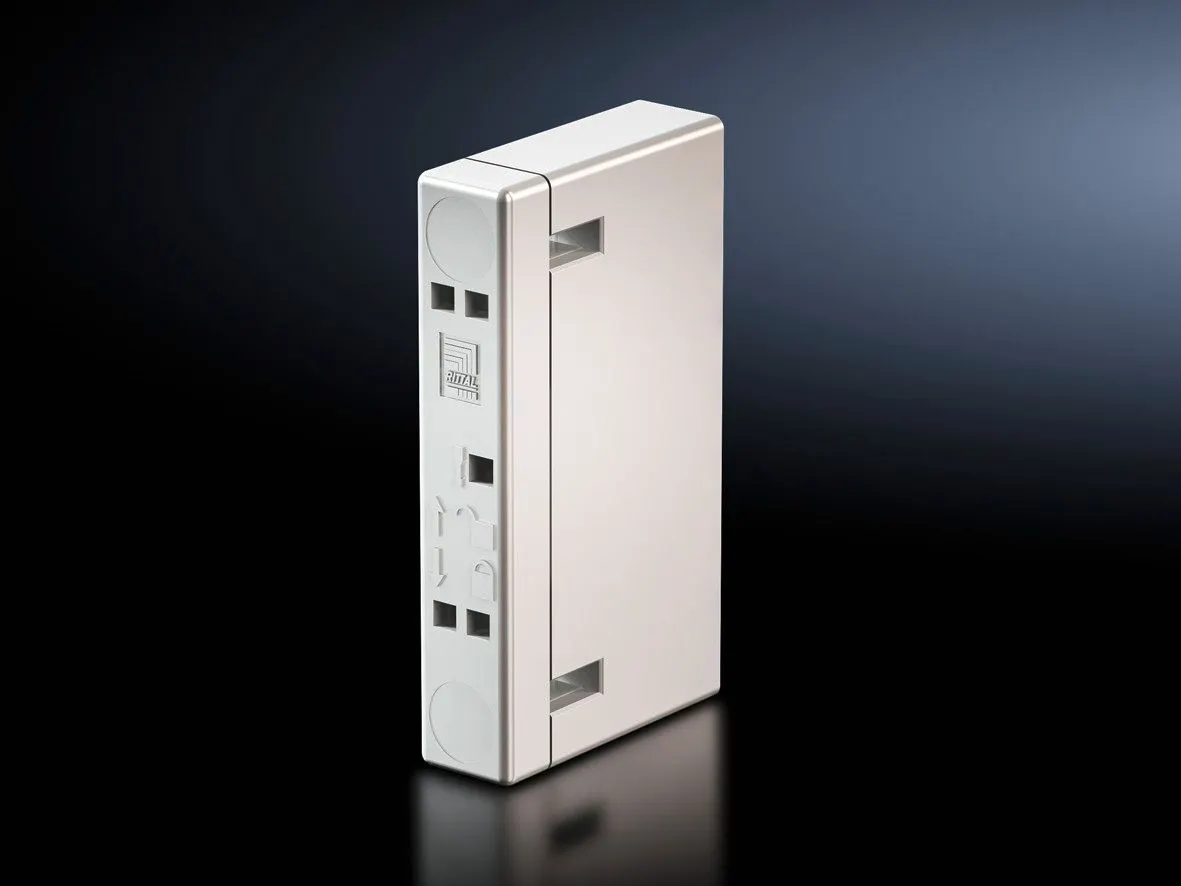

Rittal SV 9600.005 Busbar Support - 2-Pole UL 94-V0
Part Number: 9600005
Manufacturer
Rittal
Part number
9600005
Category
Alt Part Number
SV 9600.005
Quick Summary
SV 9600.005 busbar support provides reliable N/PE and PEN/N/PE termination for compact switchgear enclosures. Engineers often struggle with mounting hardware in tight panels while preserving correct busbar spacing and insulation. This part combines UL 94-V0 fire protection, a 1000 V rated operating voltage, and compatibility with ETIM EC001166 alongside ECLASS 27400607 for seamless procurement and cross‑brand specification. Designed for Rittal busbar systems, it enables fast, safe wiring, 2-pole installation, and scalable mounting in modern control panels. By using this accessory, teams reduce assembly time, improve wiring clarity, and maintain compliance across industrial automation projects.
Product Information
Extended Description
9600005 Rittal: SV Busbar support, 2-pole, 70 mm bar centre distance, for busbar WH: 12x5 mm
Article number
SV 9600.005
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
To fit busbars
12 x 5 mm
Number of poles
2-pole
Centre-to-centre spacing of busbars
70 mm
Rated operating voltage
1000 V, 2~
N/PE support
Yes
PEN/N/PE support
Yes
Packs of
4 pc(s).
Weight/pack
0.244 kg
Customs tariff number
85469010
EAN
4028177809031
ETIM 9
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, 2-pole, 70 mm bar centre distance, for busbar WH: 12x5 mm
Feature: 2-pole design with N/PE and PEN/N/PE support. Benefit: simplifies compliant grounding and reduces the need for extra adapters, speeding assembly. Application: ideal for PEN/N/PE distribution in small control panels. Feature: 70 mm centre-to-centre spacing and 12x5 mm busbars compatibility. Benefit: precise alignment improves insulation gaps and reduces risk of arcing. Application: supports standard Rittal WH busbar configurations across compact enclosures. Feature: Polyamide housing with UL 94-V0 fire protection. Benefit: robust, heat-resistant insulation that enhances safety in harsh environments. Application: suitable for indoor/outdoor panel installations requiring high fire performance. Feature: 1000 V rated operating voltage, 2~. Benefit: enables use in higher-voltage control circuits with maintained clearances. Application: common in power management and distribution panels. Feature: Pack of four units, weight per pack 0.244 kg. Benefit: efficient stocking, reduced procurement overhead, and streamlined logistics. Application: ideal for small-to-medium projects and OEM stockrooms. Feature: Distinctive color (RAL 7035) and compatibility with Rittal busbar systems. Benefit: consistent aesthetics and straightforward part identification during installations. Application: supports standardized panel interiors and serviceability.
Get a Quick Quote for a Rittal 9600005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9600005?
Enquire Now
FAQs
SV 9600.005 is designed to fit busbars with a WH profile of 12×5 mm, arranged in a 2-pole configuration with a 70 mm centre-to-centre spacing. It also supports N/PE and PEN/N/PE wiring schemes, making it suitable for common industrial power distribution in compact panels.
Installation involves aligning the 70 mm spaced busbars (12×5 mm) with the SV 9600.005 support and securing the component within the enclosure using standard mounting hardware. The 2-pole design simplifies wiring routes for N/PE and PEN/N/PE connections, reducing assembly time and ensuring compliant clearances in compact spaces.
SV 9600.005 uses UL 94-V0 fire protection and is rated for 1000 V operating voltage (2~). This combination supports safe operation in high-energy control panels and aligns with ETIM EC001166 and ECLASS 27400607 classifications for procurement and interoperability.
Yes. SV 9600.005 is sold in packs of four units, with each pack weighing 0.244 kg. This packaging approach enables efficient stocking and reduces the frequency of reordering for small-to-mid size projects.
Yes. The SV 9600.005 explicitly provides PEN/N/PE and N/PE support, enabling flexible grounding configurations in mixed power distribution schemes within compact enclosures. This capability helps simplify design considerations and ensures robust safety grounding in diverse installations.
