Rittal 9601000 Busbar - E-Cu, 120 mm² cross-section
Part Number: 9601000
Manufacturer
Rittal
Part number
9601000
Category
Alt Part Number
SV 9601.000
Quick Summary
Rittal 9601000 busbar is a compact E-Cu power conductor for panel and machine power distribution. In dense control panels, mismatched cross-sections and messy wiring drive heat, downtime, and costly rework. The data set shows ETIM 9 EC001522 and ECLASS 8.0 27370303 for standardization, but explicit CE, SIL, or IP ratings aren’t listed here; always verify certifications in official documentation. The SV Mini-PLS busbar features a 500 mm length and 120 mm² cross-section, delivering low-impedance connections and reliable current flow while 3-piece packs streamline procurement and installation in panel builds. This combination supports faster assembly, reduced part counts, and predictable lead times for industrial projects.
Product Information
Extended Description

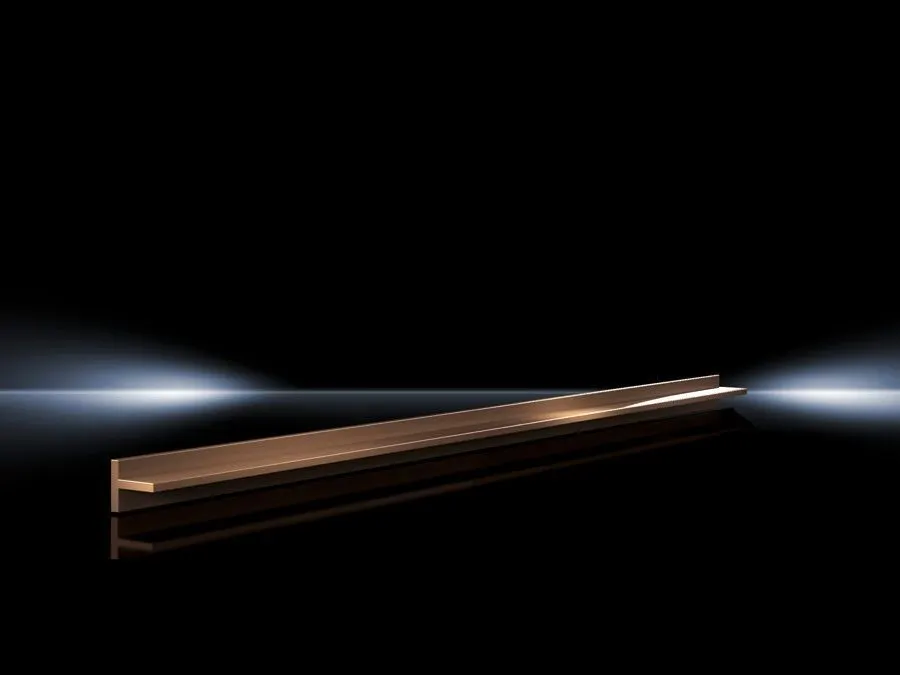

9601000 Rittal: SV Mini-PLS special busbar E-Cu, L: 500 mm, 120 mm² bar cross-section
Article number
SV 9601.000
Material
E-Cu
Bar thickness
3 mm
Cross-section
120 mm²
Length
500 mm
Dimensions
Length: 500 mm
Packs of
3 pc(s).
Weight/pack
1.863 kg
Copper weight (kg per piece)
0.54
Customs tariff number
74071000
EAN
4028177140523
ETIM 9
EC001522
ECLASS 8.0
27370303
Product description
SV Mini-PLS special busbar E-Cu, L: 500 mm, 120 mm² bar cross-section
Feature: E-Cu material with a 120 mm² cross-section and 3 mm bar thickness. Business impact: Lower electrical resistance and higher current carrying capacity reduce heat generation and improve efficiency in power distribution for control cabinets. Application: Ideal for SV Mini-PLS sections in 500 mm busbar runs in panels and switchgear. Feature: Length of 500 mm and packs of 3 pieces. Business impact: Modular segments enable flexible layouts, simplified stocking, and faster installation with consistent fit. Application: Suited for banked installations in switchgear and automation cabinets using SV Mini-PLS modules. Feature: Copper weight of 0.54 kg per piece; total pack weight 1.863 kg. Business impact: Predictable logistics and handling margins, aiding BOM accuracy and freight planning. Application: Streamlines procurement and site delivery planning for panel builds. Feature: 3 mm bar thickness provides mechanical rigidity. Business impact: Enhanced resistance to vibration and deformation, reducing maintenance and rework in harsh environments. Application: Reliable mounting in enclosures subject to mechanical stress. Feature: Standard classifications ETIM 9 EC001522 and ECLASS 8.0 27370303. Business impact: Improves cross-system compatibility and procurement traceability within ERP workflows. Application: Facilitates integration into catalogues, BOMs, and e-procurement for industrial automation projects.
Get a Quick Quote for a Rittal 9601000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9601000?
Enquire Now
FAQs
The SV 9601.000 is designed as part of the SV Mini-PLS family, with a 500 mm length and 120 mm² cross-section that fits typical control cabinet layouts. Its 3 mm bar thickness provides solid mechanical support, and the three-piece packaging simplifies routing and mounting inside standard Rittal enclosures.
Key specs include E-Cu material, 120 mm² cross-section, 3 mm bar thickness, and a 500 mm length. Copper weight per piece is 0.54 kg, with a pack weight of 1.863 kg, enabling predictable current handling and low impedance connections in power-distribution paths.
Yes, its 120 mm² cross-section and 3 mm thick copper bar offer robust current capacity with low resistance, supporting reliable operation in dense control panels. The 500 mm length allows flexible routing, while packs of 3 streamline stocking and installation in banked configurations.
The data set references ETIM 9 EC001522 and ECLASS 8.0 27370303 for standardization but does not list CE, SIL, or IP ratings. For regulatory certifications, consult the official Rittal technical documentation and the associated download assets in the product page.
With explicit part numbers (SV 9601.000), a defined 500 mm length, 120 mm² cross-section, and packaging as 3 pieces, the SV 9601.000 enables precise bill of materials entries and straightforward ERP cataloging, reducing procurement cycle times and minimizing misfits during assembly.
