Rittal 9605000 SV Mini-PLS base tray - UL 94-V0
Part Number: 9605000
Manufacturer
Rittal
Part number
9605000
Category
Alt Part Number
SV 9605.000
Quick Summary
Rittal SV Mini-PLS base tray 9605000 provides rear contact hazard protection for Mini-PLS assemblies. In crowded control panels, exposed busbar systems can cause safety incidents and unplanned downtime. The base tray employs thermally modified hard PVC with UL 94-V0 fire protection and aligns with ETIM EC002498 and ECLASS 27379201 standards. Its 500 mm length and RAL 7035 colour simplify installation, improve enclosure organization, and streamline procurement for industrial panels with consistent aesthetics. With a lightweight 0.44 kg per pack and straightforward mounting, it reduces handling effort and maintenance time in daily operations, while supporting safe, compliant operation across rugged environments.
Product Information
Extended Description

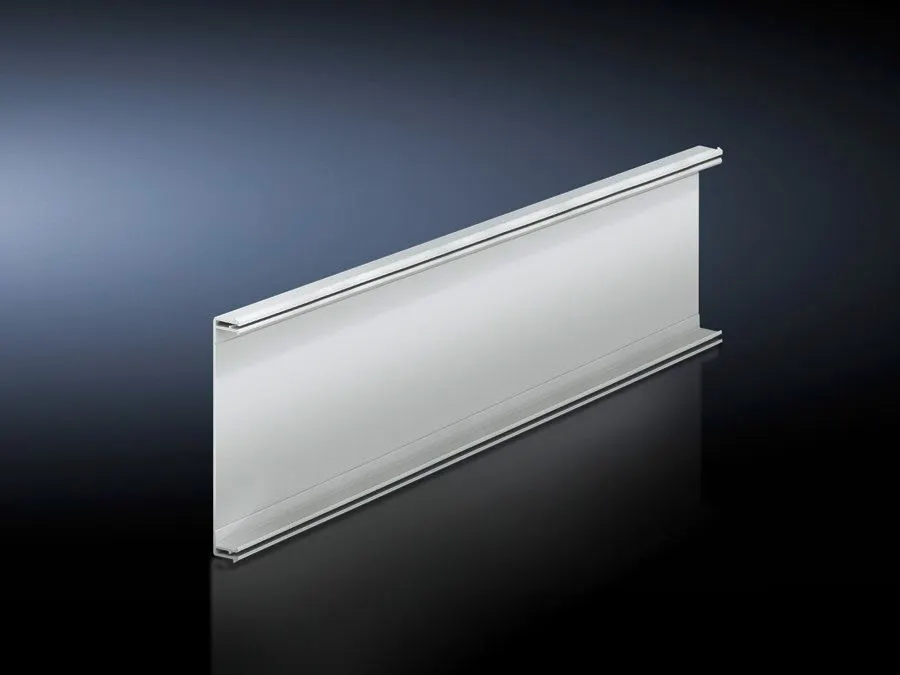

9605000 Rittal: SV Mini-PLS base tray, L: 500 mm
Article number
SV 9605.000
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Length
500 mm
To fit busbar system
Mini-PLS
Dimensions
Length: 500 mm
Packs of
1 pc(s).
Weight/pack
0.44 kg
Customs tariff number
85472000
EAN
4028177140608
ETIM 9
EC002498
ECLASS 8.0
27379201
Product description
SV Mini-PLS base tray, L: 500 mm
Rear contact hazard protection reduces operator exposure to live conductors, lowering safety incidents and maintenance risk in high-density panels. This directly improves uptime and supports safer servicing in challenging environments where Mini-PLS busbar systems are densely routed. Thermally modified hard PVC with UL 94-V0 flame rating enhances fire safety, durability, and resistance to harsh industrial conditions, helping you meet internal safety standards and supplier requirements while reducing replacement cycles. The 500 mm length is designed to fit standard Mini-PLS busbar layouts, minimizing field fabrication and enabling faster, predictable panel assembly. Lightweight at 0.44 kg per tray, the solution lowers shipping and on-site handling costs, making large-scale deployments more economical. The RAL 7035 colour ensures consistent aesthetics across enclosures, simplifying inventory management and visual inspections. Overall, this base tray supports scalable, modular deployments, reducing lifecycle costs and enabling quick upgrades when busbar configurations evolve.
Get a Quick Quote for a Rittal 9605000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9605000?
Enquire Now
FAQs
Install the tray as the base for Mini-PLS busbar assemblies in standard enclosures. It is designed to fit the Mini-PLS busbar system with a 500 mm length, aligning with common mounting patterns to avoid custom fabrication and speed up panel assembly.
The tray provides rear contact hazard protection to reduce exposure to live parts. It uses thermally modified hard PVC with UL 94-V0 flame protection and matches ETIM EC002498 and ECLASS 27379201 classifications, ensuring reliable safety performance in industrial environments.
Yes, it is designed to fit the Mini-PLS busbar system, matching standard enclosure layouts for consistent wiring and busbar routing. Its 500 mm length and color (RAL 7035) promote a tidy, uniform appearance and simplify stocking and replacement within multi-panel facilities.
Key standards include UL 94-V0 flame protection for the material, plus ETIM EC002498 and ECLASS 8.0 27379201 classifications to support procurement and cataloging. These help ensure compliance and easier component matching in catalogs and projects.
The base tray reduces safety incidents and maintenance downtime, speeds up installation with a standard 500 mm length, and lowers handling and logistics costs due to its light weight (0.44 kg per tray) and single-pack packaging. Over multiple cabinets, these factors contribute to lower lifecycle costs and faster panel upgrades.
