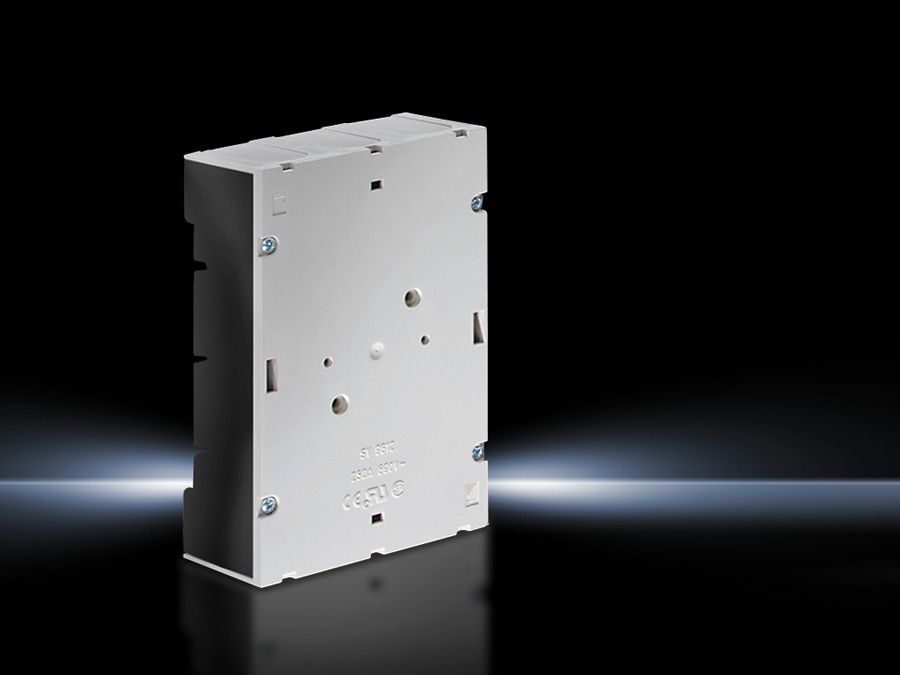

Rittal SV 9612.000 Busbar Adaptor - UL 94-V0 Fire Rated

High-current rating and voltage handling enable robust power distribution in compact enclosures. The SV 9612.000 supports up to 250 A at 690 V, reducing the need for multiple adapters and enabling streamlined panel designs for control cabinets and switchgear. In busy manufacturing environments, this translates to fewer connection points, lower resistance losses, and faster commissioning. Round conductor compatibility broadens wiring options and minimizes part variety. The 3-pole design accepts round conductors from 10 to 120 mm², which simplifies procurement and supports scalable layouts in growing automation lines. Installers benefit from fewer crimp adapters and clearer documentation when wiring laminated copper bars. Flexible cable routing improves maintenance and serviceability. With top and bottom cable outlets, engineers can choose the most convenient entry path, reducing bends and heat buildup. This yields cleaner harnesses, easier future upgrades, and measurable reductions in assembly time during panel builds. Secure, efficient copper connections with a defined clamping area. The 17 x 15 mm WH clamping zone is sized for laminated copper bars, delivering consistent contact pressure and low contact resistance. This minimizes hotspots and supports long-term reliability in power distribution networks of automation equipment. Safety and compliance are embedded in the material and construction. The polyamide housing offers UL 94-V0 fire protection, with dependable color coding (RAL 7035 chassis; RAL 9011 for chassis), and standard ETIM/ECLASS classifications to align with procurement systems. The result is a dependable, safe upgrade path for existing enclosures, with predictable weight and packaging for logistics.
