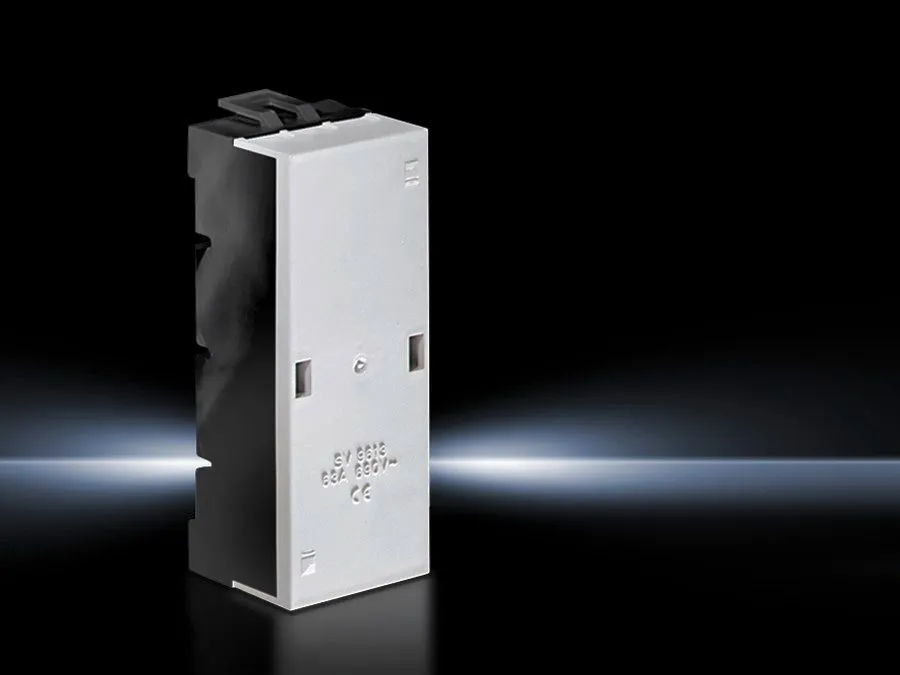

Rittal 9613000 SV Mini-PLS Busbar Adaptor - UL 94-V0
Part Number: 9613000
Manufacturer
Rittal
Part number
9613000
Category
Alt Part Number
SV 9613.000
Quick Summary
The Rittal SV Mini-PLS busbar adaptor provides compact, high‑current busbar connections inside electrical cabinets. In tight panel environments, engineers struggle with wasted space, complicated routing, and unreliable terminations that slow projects. UL 94‑V0 flame‑retardant polyamide housing supports safe operation, the device handles up to 690 V and 63 A, and it integrates neatly with laminated copper bars. Its top or bottom cable outlets and precise clamping area streamline installation while reducing assembly time and maintenance costs for industrial automation. Designed for 1.5–35 mm² round conductors, this adaptor delivers predictable performance in control cabinets, panel boards, and distributed power circuits.
Product Information
Extended Description
9613000 Rittal: SV Mini-PLS busbar connection adaptor, 63 A, 690 V, 3-pole, round conductor connection 1,5-35 mm², clamping area WH: 10x8 mm
Article number
SV 9613.000
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035 | Chassis: RAL 9011
Clamping area for laminated copper bars (W x H)
10 x 8 mm
Note
Wire end ferrules should be used with fine wire conductors
Cable outlet
Top/bottom
Rated operating voltage
690 V
Rated current max.
63 A
Dimensions
Width: 54 mm | Height: 160 mm
Connection for round conductor
1.5 ‐ 35 mm²
Packs of
1 pc(s).
Weight/pack
0.45 kg
Copper weight (kg per piece)
0.081
Customs tariff number
85369010
EAN
4028177140738
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Mini-PLS busbar connection adaptor, 63 A, 690 V, 3-pole, round conductor connection 1,5-35 mm², clamping area WH: 10x8 mm
Feature: 63 A / 690 V rating for the SV Mini-PLS busbar adaptor. Business Impact: Enables reliable power distribution for higher-demand zones within cabinets, reducing the need for multiple smaller connectors and saving space. Application: Ideal for compact power distribution in automation cabinets and compact switchgear. The benefit is faster, safer terminations with capacity headroom for routine load increases. Long-tail keywords: high-current busbar adaptor, 690 V cabinet wiring, compact power distribution solution. Feature: Top/bottom cable outlets provide flexible wiring options. Business Impact: Simplifies routing, improves accessibility for maintenance, and reduces wiring harness complexity. Application: Suitable for front or rear wiring access in control panels, minimizes panel depth impact. Long-tail keywords: top bottom cable outlet, panel wiring flexibility, wiring accessibility. Feature: Clamp area for laminated copper bars 10 x 8 mm. Business Impact: Ensures a secure, robust connection with low contact resistance, improving reliability under vibration. Application: Integrates laminated copper bars in high-density panels. Long-tail keywords: laminated copper bar clamping, robust busbar connection, low resistance terminations. Feature: UL 94‑V0 fire protection material (polyamide). Business Impact: Enhances safety and compliance in enclosures, reducing risk in critical installations. Application: Industrial cabinet environments requiring flame retardant housing. Long-tail keywords: flame retardant housing, UL 94‑V0 polymer, safe cabinet components. Feature: Dimensions 54 mm width x 160 mm height and 1.5–35 mm² conductor range. Business Impact: Delivers a compact footprint compatible with tight layouts while supporting a broad conductor spectrum. Application: Space-saving integration in control panels and distributed power schemes. Long-tail keywords: compact busbar adaptor, 1.5–35 mm² conductors, panel space optimization. Feature: Pack quantity and copper weight details. Business Impact: Predictable logistics and material usage for assembly planning; copper weight 0.081 kg per piece. Application: Standardized procurement for consistent builds. Long-tail keywords: unit packs, copper weight per piece, procurement planning.
Get a Quick Quote for a Rittal 9613000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9613000?
Enquire Now
FAQs
To install the SV 9613000, position the adaptor for accessible cable entry, align with the clamping area for laminated copper bars, and secure round conductors within 1.5–35 mm² using appropriate ferrules for fine-wire conductors. Ensure the top/bottom outlets are oriented to suit the service access and verify a solid 63 A current path at up to 690 V. This reduces termination time and improves long-term reliability.
The SV 9613.000 supports round conductors in the 1.5–35 mm² range. Use ferrules with fine-wire conductors as recommended to ensure a stable, low‑resistance connection and to preserve clamp integrity over time.
Yes. The adaptor provides a 10 x 8 mm clamping area designed for laminated copper bars, enabling secure, high‑ integrity connections in compact panel layouts while maintaining strain relief and ease of retrofit in existing cabinets.
The 9613000 features a UL 94‑V0 fire‑retardant polyamide housing and is rated for up to 690 V and 63 A. It also carries ETIM 9 EC001531 and ECLASS 8.0 27370304 identifiers, supporting standard classification in industrial procurement and engineering data ecosystems.
By reducing wiring complexity and enabling quick, reliable 3‑pole connections, the adaptor lowers installation time and panel downtime. The compact footprint and 1 pc pack simplify stocking and maintenance, delivering predictable lifecycle costs in automation cabinets and power-distribution panels.
