Rittal SV 9614.000 SV Mini-PLS adaptor - UL 94-V0
Part Number: 9614000
Manufacturer
Rittal
Part number
9614000
Category
Alt Part Number
SV 9614.000
Quick Summary
SV Mini-PLS component adaptor from Rittal delivers a compact 25 A, 690 V interface for secure, panel-mounted connections in control cabinets. Engineers often contend with limited space, fragile insulation, and time-consuming wiring when adding high-voltage accessories. Key certifications and standards include UL 94-V0 fire protection, ETIM EC001531, and ECLASS 8.0 27370304 to ensure compliance and efficient cataloging. With a compact 54x160 mm footprint and a 7.5 mm support rail, it simplifies installation and inventory management, reducing assembly time and risk of miswiring. Overall, the adaptor supports common ABB, Eaton, Siemens models and 25 A equipment, enabling faster deployments and predictable procurement.
Product Information
Extended Description

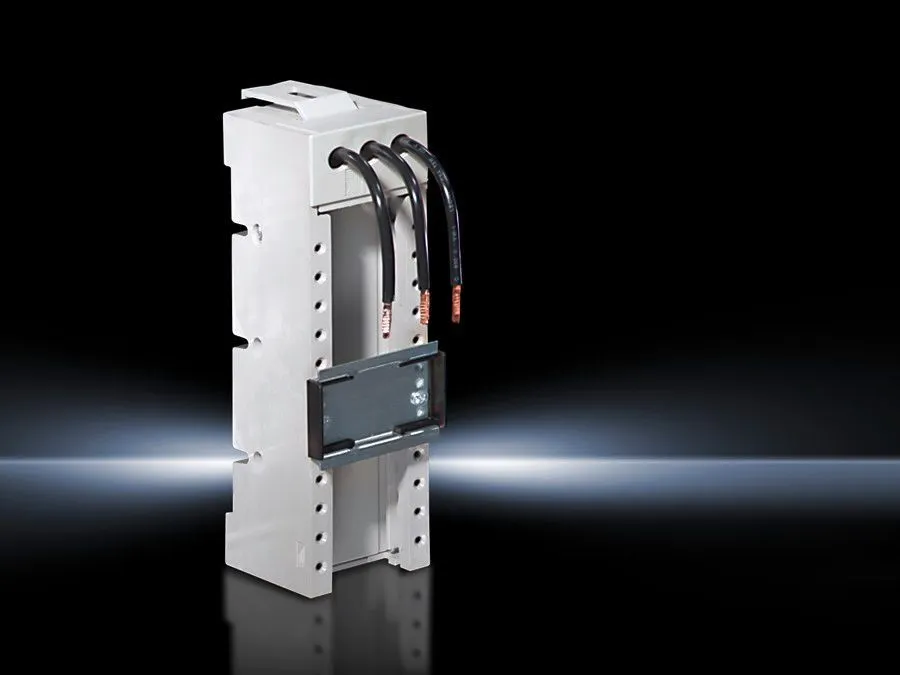

9614000 Rittal: SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 54x160 mm, support rail H: 7,5 mm
Article number
SV 9614.000
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Connection cables (AWG)
AWG 12
Rated operating voltage
690 V, 3~
Rated current max.
25 A
Dimensions
Width: 54 mm | Height: 160 mm
Support rails Qty/height
1 / 7.5 mm
To fit manufacturer (model)
ABB | Eaton | Siemens | MS325 | MS450 max. 25 A | MS451 max. 25 A | PKZM4 bis 25 A | PKE65 bis 25 A | 3RV10 31 bis 25 A
Packs of
1 pc(s).
Weight/pack
0.32 kg
Copper weight (kg per piece)
0.041
Customs tariff number
85369095
EAN
4028177140745
ETIM 7.0
EC001531
ECLASS 8.0
27370304
Product description
SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 54x160 mm, support rail H: 7,5 mm
Feature: 25 A at 690 V, 3-pole design with AWG 12 cables. Business Impact: Supports high-power loads with secure, standardized wiring, reducing overheating risk and simplifying panel layouts. Application: Ideal for control panels using 3-pole contactor modules and 25 A circuit segments. Feature: Compact 54x160 mm footprint on a 7.5 mm DIN rail. Business Impact: Saves panel space and enables denser smart-automation architectures, lowering enclosure costs. Application: Suitable for compact power distribution and modular cabinets. Feature: DIN rail compatibility and single-pack consistency (1 piece). Business Impact: Streamlines procurement and installation, improving installation speed and reducing part misplacement. Application: Fast retrofits in existing DIN rail systems. Feature: PA material with UL 94-V0 fire protection and RAL 7035 color. Business Impact: Enhances safety and color-coding for easier maintenance, with proven flame retardancy for electrical enclosures. Application: Harsh electrical environments and regulated panels. Feature: Broad compatibility with ABB, Eaton, Siemens models (MS325, MS450, PKZM4, PKE65, 3RV10) up to 25 A. Business Impact: Reduces integration risk and spare-parts complexity, enabling quicker design iterations. Application: New builds and retrofits across automation panels and switchgear cabinets with standard auxiliaries.
