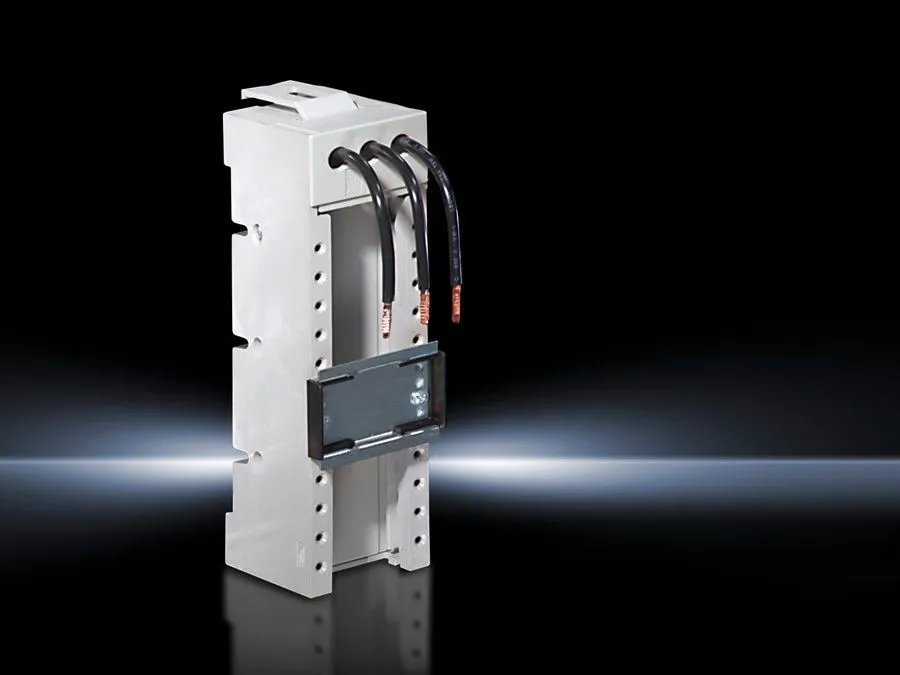

Rittal 9614100 SV Mini-PLS Adaptor - UL 94-V0
Part Number: 9614100
Manufacturer
Rittal
Part number
9614100
Category
Alt Part Number
SV 9614.100
Quick Summary
The Rittal SV Mini-PLS Adaptor enables compact, modular power distribution for control panel assemblies in industrial automation. When space is tight and standard adapters don’t fit a range of relays and contactors, installation can become error-prone. Its UL 94-V0 flame-retardant polyamide housing, along with 690 V three-phase capability and a 25 A rating, supports safe, compliant integration into panel circuits. Although SIL, CE, and IP ratings aren’t specified here, the adaptor aligns with UL 94-V0 for fire protection and with ETIM 9 EC001531 and ECLASS 8.0 27370304 classifications for streamlined cataloging. Designed for broad compatibility with ABB, Eaton, Schneider Electric, Siemens and other major brands, it speeds commissioning while reducing wiring complexity and BOM fragmentation, delivering measurable business value.
Product Information
Extended Description
9614100 Rittal: SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x160 mm, support rail H: 7,5 mm
Article number
SV 9614.100
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Connection cables (AWG)
AWG 12
Rated operating voltage
690 V, 3~
Rated current max.
25 A
Dimensions
Width: 45 mm | Height: 160 mm
Support rails Qty/height
1 / 7.5 mm
To fit manufacturer (model)
ABB | Eaton | Schneider Electric | Siemens | MS116 | PKZM0 bis 25 A | PKZM01 bis 25 A | PKE12 | PKE32 bis 25 A | GV2-P bis 25 A | GV2-RT | GV2-LE10 | GV3 bis 25 A | 3RV10 21 | 3RV20 21 bis 25 A | 3RV10 11 | 3RV20 11
Packs of
1 pc(s).
Weight/pack
0.3 kg
Copper weight (kg per piece)
0.041
Customs tariff number
85369095
EAN
4028177192546
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x160 mm, support rail H: 7,5 mm
Feature: Compact footprint with dimensions of 45 mm width and 160 mm height, plus a single 7.5 mm support rail and AWG 12 connection cables. Business Impact: Saves panel space, simplifies mounting, and accelerates wiring during initial builds or retrofits. Application: Ideal for tight control panels and modular power distribution in industrial cabinets. Feature: 25 A rated current and 690 V rated operating voltage in a 3-pole configuration. Business Impact: Supports common motor control and relay circuits with safe headroom, reducing the need for multiple adapters. Application: Suitable for PKZM0/PKZM01 up to 25 A, GV2-P/GV2-RT and similar devices. Feature: UL 94-V0 flame-retardant polyamide housing with robust mechanical design. Business Impact: Enhances electrical safety and regulatory alignment, lowering risk and inspection pass times. Application: Fits standard European and global panel environments. Feature: Broad brand compatibility including ABB, Eaton, Schneider Electric, and Siemens. Business Impact: Reduces BOM fragmentation and procurement complexity, speeding up project timelines. Application: Seamless use in mixed-brand control panels and retrofit projects. Feature: Lightweight packaging at 0.3 kg per pack with copper weight 0.041 kg per piece and 1 pack per order. Business Impact: Lowers shipping costs and inventory burden, improving total cost of ownership. Application: Efficient stocking for maintenance teams and job sites.
Get a Quick Quote for a Rittal 9614100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9614100?
Enquire Now
FAQs
The 9614100 SV Mini-PLS adaptor supports a wide range of manufacturer models including ABB, Eaton, Schneider Electric, Siemens, PKZM0 bis 25 A, PKZM01 bis 25 A, PKE12, PKE32 bis 25 A, GV2-P bis 25 A, GV2-RT, GV2-LE10, GV3 bis 25 A, 3RV10 21, 3RV20 21 bis 25 A, and 3RV10 11, providing flexible integration for mixed-brand control panels.
It features a rated current max of 25 A, rated operating voltage of 690 V (3~), a 3-pole configuration, and connection cables rated AWG 12. The unit ships as 1 piece per pack with a weight around 0.3 kg.
With a compact 45x160 mm footprint and a 7.5 mm rail, it streamlines mounting and reduces wiring complexity. The AWG 12 cables standardize connections, enabling faster assemblies and easier retrofits across multiple relay families.
Yes. The housing is made of UL 94-V0 rated polyamide, providing flame retardant performance that supports safety and compliance in standard European and global panel environments.
The adaptor reduces engineering time, minimizes BOM fragmentation across brands, and lowers shipping and inventory costs due to its compact packaging and universal compatibility, delivering faster project execution and easier future retrofits.
