Rittal SV 9615.000 SV Mini-PLS adaptor - 690V/25A UL94-V0
Part Number: 9615000
Manufacturer
Rittal
Part number
9615000
Category
Alt Part Number
SV 9615.000
Quick Summary
The SV Mini-PLS adaptor is a compact component solution for integrating 690 V, 3-pole connections in panel enclosures. In tight cabinets, convenient wiring and secure mounting are common challenges that slow assembly and increase risk. This part uses UL 94-V0 fire-rated polyamide and is classified within industry standards such as ETIM EC001531 and ECLASS 27370304, ensuring reliable procurement and interoperability with data-driven catalogs. For engineers pursuing efficiency and compliance, it supports faster installation and predictable performance in high-voltage control panels. The combination of compact footprint and robust materials translates into meaningful business value, especially when selecting a panel mounting solution that scales with project demands and supplier ecosystems.
Product Information
Extended Description

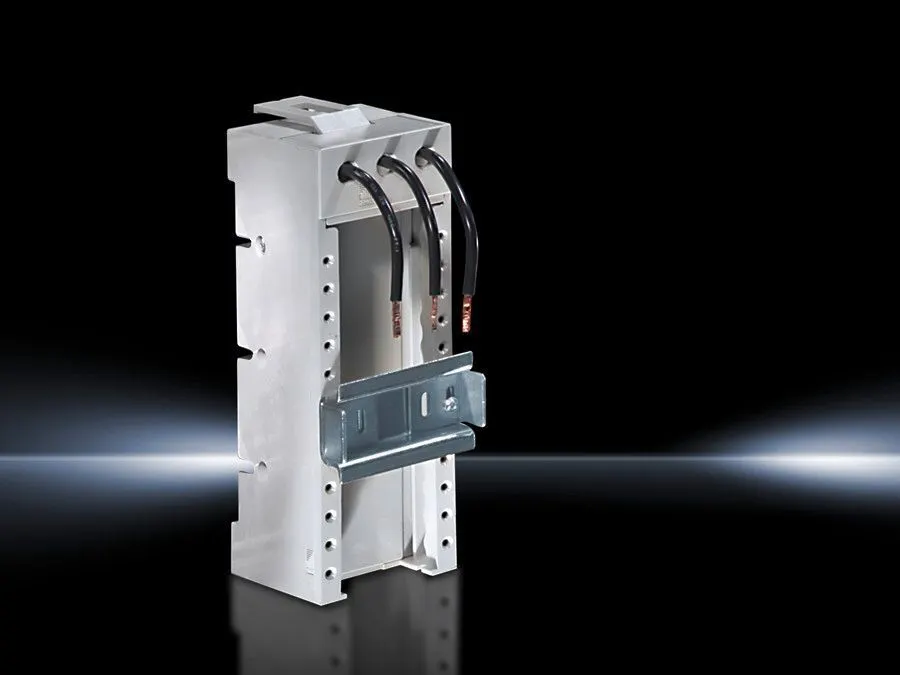

9615000 Rittal: SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 54x160 mm, support rail H: 15 mm
Article number
SV 9615.000
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Connection cables (AWG)
AWG 12
Rated operating voltage
690 V, 3~
Rated current max.
25 A
Dimensions
Width: 54 mm | Height: 160 mm
Support rails Qty/height
1 / 15 mm
Packs of
1 pc(s).
Weight/pack
0.36 kg
Copper weight (kg per piece)
0.041
Customs tariff number
85369095
EAN
4028177140769
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 54x160 mm, support rail H: 15 mm
Feature 690 V operation and 25 A rating → Business Impact: Enables safe high-voltage distribution in compact enclosures without overloading. Application: Control panels requiring 690 V three-pole connections with reliable current handling. Feature 3-pole design with AWG 12 cables → Business Impact: Simplifies wiring topology, reduces installation time, and minimizes connection errors. Application: Standardized high-current wiring inside Rittal enclosures. Feature Dimensions 54 mm W x 160 mm H → Business Impact: Fits narrow cabinet spaces while maintaining accessibility for maintenance. Application: DIN-rail mounted power distribution near modular components. Feature Material Polyamide with UL 94-V0 → Business Impact: Ensures fire safety and long-term durability in harsh electrical environments. Application: Enclosures where fire-rated plastics are mandated by safety guidelines. Feature Support rails 1 / 15 mm → Business Impact: Compatible with common 15 mm DIN rails for quick mounting. Application: Modular panel systems and space-constrained control cabinets. Feature Weight per pack 0.36 kg, Copper weight 0.041 kg → Business Impact: Lightweight yet sturdy integration reduces handling risk and supports efficient logistics. Application: Factory floor assembly and inventory planning. Feature Packs of 1 → Business Impact: Simple replenishment and predictable skus for procurement. Application: Standalone or modular installations with minimal packaging waste.
