Rittal SV 9615.100 SV Mini-PLS Adaptor - 3-pole, 690 V, 25 A
Part Number: 9615100
Manufacturer
Rittal
Part number
9615100
Category
Alt Part Number
SV 9615.100
Quick Summary
Rittal SV 9615.100 SV Mini-PLS adaptor provides compact power distribution for panel enclosures in industrial control cabinets. Engineers often face limited space and wiring complexity that slow installations and raise the risk of miswiring. This part uses UL 94-V0 fire-rated polyamide and aligns with ETIM EC001531 and ECLASS 27370304 to streamline procurement and maintenance. The combination of high-current capability, durable construction, and standardised data helps optimize cabinet layouts, reduce assembly time, and ensure reliable operation in power management and distribution applications.
Product Information
Extended Description
9615100 Rittal: SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x160 mm, support rail H: 15 mm
Article number
SV 9615.100
Material
Polyamide | Fire protection corresponding to ULÂ 94-V0
Colour
RAL 7035
Connection cables (AWG)
AWG 12
Rated operating voltage
690 V, 3~
Rated current max.
25 A
Dimensions
Width:Â 45 mm | Height:Â 160 mm
Support rails Qty/height
1Â /Â 15Â mm
Packs of
1 pc(s).
Weight/pack
0.34 kg
Copper weight (kg per piece)
0.041
Customs tariff number
85369095
EAN
4028177192553
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description

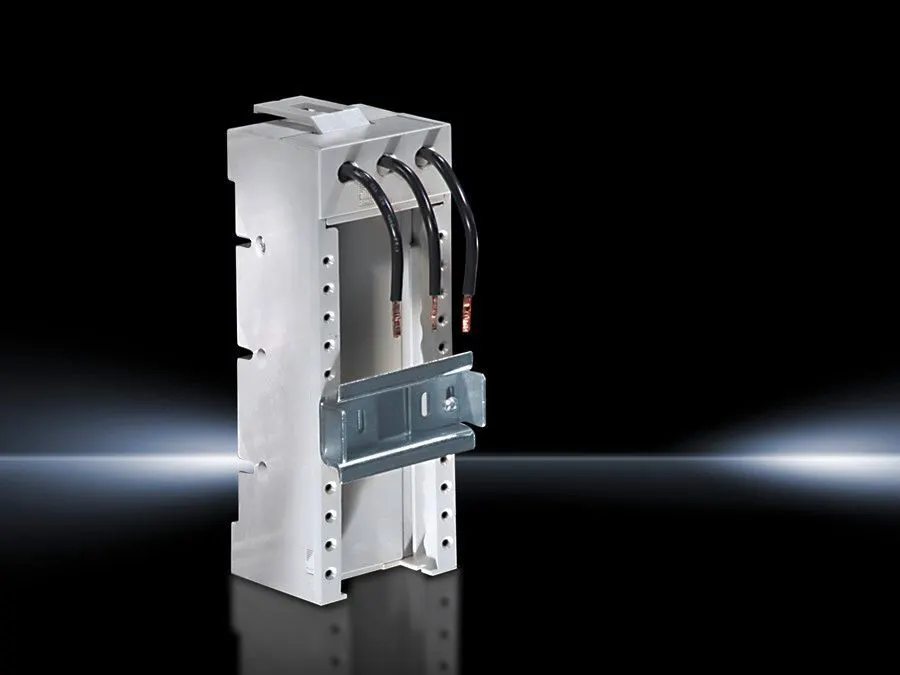

SV Mini-PLS component adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x160 mm, support rail H: 15 mm
The SV Mini-PLS adaptor delivers a maximum current of 25 A at 690 V across a 3-pole configuration, enabling efficient distribution of moderate loads within compact enclosures and reducing wiring complexity in control panels. This directly improves installation speed and circuitry organization for a typical Rittal cabinet, enhancing overall system reliability in power management and distribution scenarios. The 45 mm width and 160 mm height keep footprints small while maintaining accessible integration with standard DIN rails and 15 mm rail height, supporting faster retrofits and scalable layouts in evolving automation systems. Made from polyamide with UL 94-V0 fire protection, the housing offers durable, flame-retardant performance suitable for indoor electrical installations, contributing to safer operations and reduced risk of material failure during thermal events. Connection cables use AWG 12, balancing ease of sourcing with robust current carrying capability, and the unit ships in packs of one for modular procurement. With a copper weight of 0.041 kg per piece, the adaptor remains manageable in dense panel assemblies, simplifying installation and service. The product’s ETIM EC001531 and ECLASS 27370304 classifications align with modern ERP and procurement workflows, enabling accurate cataloging, stock management, and automated purchasing routines, while the included EAN 4028177192553 supports streamlined logistics and traceability in industrial supply chains.
