Rittal 9617000 SV Mini-PLS adaptor - UL 94-V0
Part Number: 9617000
Manufacturer
Rittal
Part number
9617000
Category
Alt Part Number
SV 9617.000
Quick Summary
Rittal 9617000 SV Mini-PLS adaptor is a compact power distribution module designed for control panels and machine enclosures. Engineers often struggle with space constraints, wiring complexity, and ensuring safe high-voltage interconnects in tight cabinets. This adaptor delivers UL 94-V0 fire-rated polyamide housing along with a 690 V, 40 A rating, supporting safe operation in demanding environments. By leveraging a 54 mm width, 160 mm height, and 15 mm rail compatibility, it enables rapid installation and scalable panel designs, reducing redesign costs. It also aligns with common ABB, Eaton PKZM4, and MS450 interface needs, offering a straightforward path from initial spec to compliant, reliable DIN rail adaptor and panel wiring integration.
Product Information
Extended Description

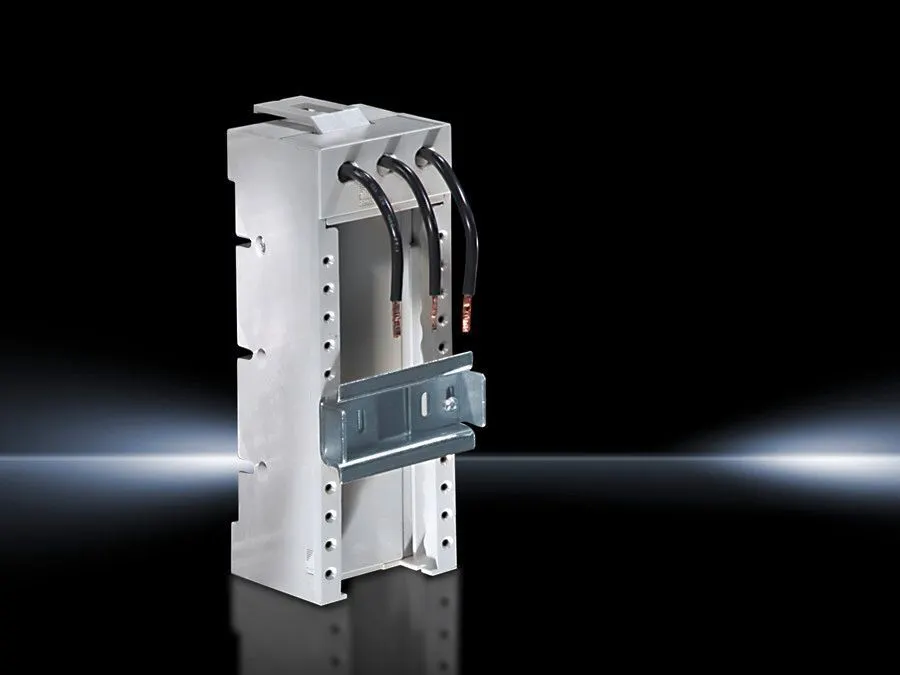

9617000 Rittal: SV Mini-PLS component adaptor, 40 A, 690 V, 3-pole, connection cable AWG 10, WH: 54x160 mm, support rail H: 15 mm
Article number
SV 9617.000
Material
Polyamide | Fire protection corresponding to ULÂ 94-V0
Colour
RAL 7035
Connection cables (AWG)
AWG 10
Rated operating voltage
690 V, 3~
Rated current max.
40 A
Dimensions
Width:Â 54 mm | Height:Â 160 mm
Support rails Qty/height
1Â /Â 15Â mm
To fit manufacturer (model)
ABB | Eaton | MS450 max. 40 A | PKZM4 max. 40 A
Packs of
1 pc(s).
Weight/pack
0.38 kg
Copper weight (kg per piece)
0.046
Customs tariff number
85369095
EAN
4028177140806
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Mini-PLS component adaptor, 40 A, 690 V, 3-pole, connection cable AWG 10, WH: 54x160 mm, support rail H: 15 mm
Compact footprint and DIN rail mounting enable space savings in crowded control cabinets, while simplifying installation with a 15 mm rail compatibility and a footprint of 54 x 160 mm. This directly translates to faster panel builds, reduced enclosure depth, and lower installation labor costs in every project from small machines to large system cabinets. The adaptor provides a robust 40 A current rating at 690 V, 3‑phase operation, enabling a single, reliable distribution point for critical loads and minimizing the need for multiple small modules, which reduces part count and potential fault points. Wiring efficiency is enhanced by AWG 10 connection cables, which streamline the interconnect process and support cleaner, safer terminations in high‑density panels. The polyamide housing delivers UL 94‑V0 fire protection, boosting safety margins in confined spaces where insulation integrity is essential. Finally, verified compatibility with ABB, Eaton PKZM4, and MS450 interfaces reduces integration risk and accelerates time‑to‑install for mixed‑vendor environments, a common scenario in modern industrial facilities.
