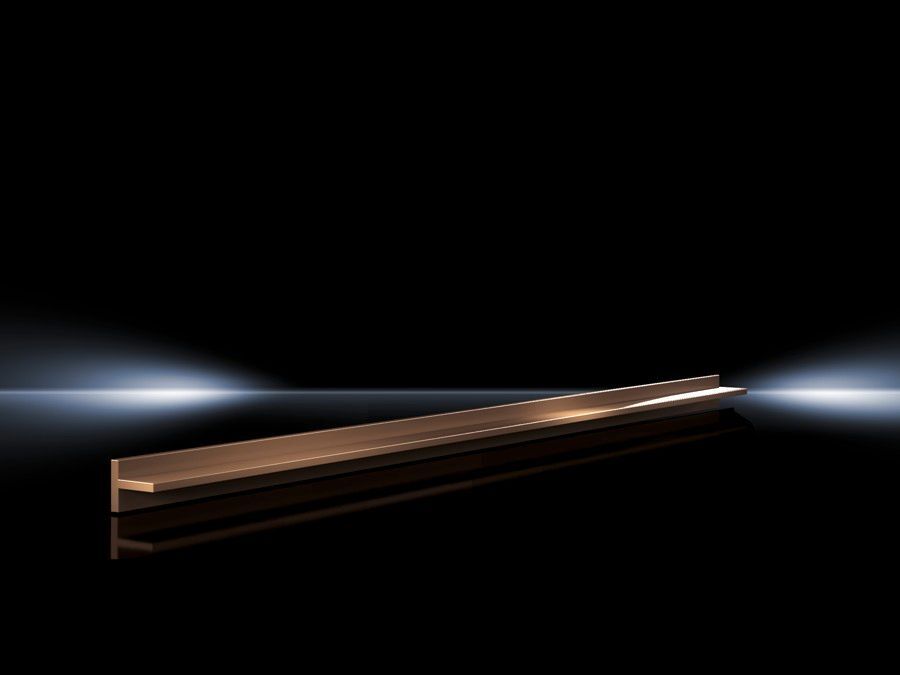

Rittal 9624000 SV Mini-PLS busbar - 120 mm² E-Cu
Part Number: 9624000
Manufacturer
Rittal
Part number
9624000
Category
Alt Part Number
SV 9624.000
Quick Summary
SV Mini-PLS busbar is a high-conductivity copper bar designed for power distribution in compact switchgear. Engineers often struggle with space constraints and thermal management, and this solution offers a 120 mm² cross-section in a 1,500 mm length to maximize current paths while preserving enclosure footprint. The data aligns with ETIM 9 EC001522 and ECLASS 8.0 27370303 classifications, supporting cataloging and interoperability; for explicit CE, SIL, or IP ratings, consult regional datasheets and the downloadable docs. In addition to copper quality and precise 3 mm bar thickness, the pack of three optimizes logistics and accelerates assembly, delivering consistent performance and lower total cost in productive automation environments.
Product Information
Extended Description
9624000 Rittal: SV Mini-PLS special busbar E-Cu, L: 1500 mm, 120 mm² bar cross-section
Article number
SV 9624.000
Material
E-Cu
Bar thickness
3 mm
Cross-section
120 mm²
Length
1,500 mm
Dimensions
Length: 1,500 mm
Packs of
3 pc(s).
Weight/pack
5.559 kg
Copper weight (kg per piece)
1.61
Customs tariff number
74071000
EAN
4028177140936
ETIM 9
EC001522
ECLASS 8.0
27370303
Product description
SV Mini-PLS special busbar E-Cu, L: 1500 mm, 120 mm² bar cross-section
Feature: E-Cu copper with a 120 mm² cross-section. Benefit: delivers lower electrical resistance and robust current capability, improving overall efficiency in power distribution for compact switchgear. Application: ideal for control panels and distribution boards where space is at a premium. Feature: Length of 1,500 mm and 3 mm bar thickness. Benefit: aligns with standard enclosure footprints and simplifies mounting, reducing installation time while maintaining structural integrity. Application: modular installations in Rittal SV Mini-PLS systems and similar rail-based layouts. Feature: Packs of 3 pieces and a per-piece copper weight of 1.61 kg. Benefit: streamlines logistics, inventory planning, and on-site handling, lowering procurement and labor costs. Application: bulk orders for OEMs and panel builders handling multi-bay assemblies. Feature: Material and classifications ETIM 9 EC001522 and ECLASS 8.0 27370303. Benefit: ensures seamless cataloging and cross-system compatibility, reducing sourcing risk. Application: procurement processes and ERP/murchasing workflows. Industry context: copper busbars with precise tolerances support reliable, low-impedance current paths in automation panels, delivering measurable gains in uptime and energy efficiency.
Get a Quick Quote for a Rittal 9624000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9624000?
Enquire Now
FAQs
The SV 9624.000 is designed for SV Mini-PLS integration and uses a 1,500 mm length suitable for standard 1500 mm panel buses. It is sold in packs of three, with a copper weight of 1.61 kg per piece and a 3 mm bar thickness to ensure reliable mounting within compatible enclosures. For exact enclosure compatibility and rail interfaces, consult the official datasheets and installation guides.
Key specs include a cross-section of 120 mm², material E-Cu (electrolytic copper), and a bar thickness of 3 mm, with a length of 1,500 mm. Each piece weighs 1.61 kg and the packs contain 3 pieces. These characteristics define the busbar’s low impedance path suitable for high-current distribution in compact panels.
This busbar is well suited for power distribution in industrial automation, control cabinets, and compact switchgear within manufacturing, process industries, and energy management systems. Its 1,500 mm length and 120 mm² cross-section support efficient, space-saving current distribution in modular Rittal SV Mini-PLS configurations and similar enclosure systems.
The product is classified under ETIM 9 EC001522 and ECLASS 8.0 27370303, which aids procurement and interoperability across ERP and PDM systems. The data does not explicitly list SIL, CE, or IP ratings; consult regional documentation or the downloads section for certification statuses and EN/CE-related documentation specific to your market.
Copper busbars like this SV 9624.000 offer durable, low-impedance current paths with minimal maintenance requirements compared with terminal-heavy wiring. The pack-of-three format simplifies stocking and reduces on-site rework, contributing to shorter installation times and lower labor costs. Long-term reliability in automated panels translates to lower downtime and favorable total cost of ownership.
