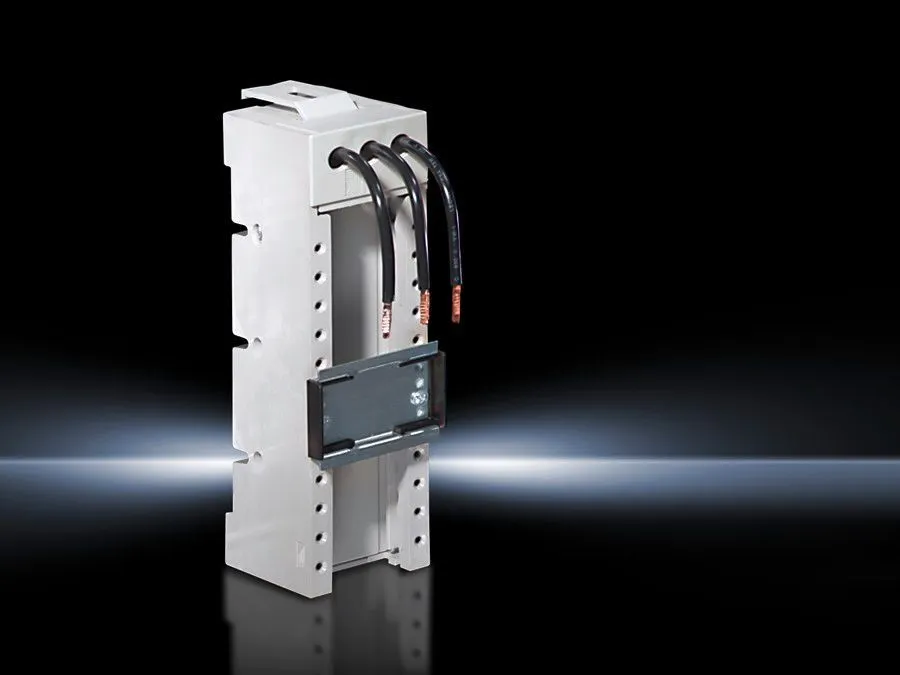

Rittal 9627000 SV Mini-PLS Adaptor - UL 94-V0
Part Number: 9627000
Manufacturer
Rittal
Part number
9627000
Category
Alt Part Number
SV 9627.000
Quick Summary
Rittal SV Mini-PLS adaptor 9627000 is a compact cable interface for modular distribution panels in electrical cabinets. Engineers often grapple with fitting high-current, multi-pole connections in tight enclosures while keeping insulation robust and wiring tidy. It carries UL 94-V0 fire protection and is designed for 690 V three-phase systems, with a 40 A rated current. The combination of compact dimensions, DIN rail mounting, and Eaton PKZ2 compatibility delivers faster installation and lower total cost of ownership. This solution supports reliable panel interconnections, reduces installation complexity, and aligns with demanding industrial environments, making it an ideal choice for modern automation cabinets and power distribution schemes.
Product Information
Extended Description
9627000 Rittal: SV Mini-PLS component adaptor, 40 A, 690 V, 3-pole, connection cable AWG 10, WH: 72x160 mm, support rail H: 7,5 mm
Article number
SV 9627.000
Material
Polyamide | Fire protection corresponding to ULÂ 94-V0
Colour
RAL 7035
Connection cables (AWG)
AWG 10
Rated operating voltage
690 V, 3~
Rated current max.
40 A
Dimensions
Width:Â 72 mm | Height:Â 160 mm
Support rails Qty/height
1Â /Â 7.5Â mm
To fit manufacturer (model)
Eaton | PKZ2
Packs of
1 pc(s).
Weight/pack
0.45 kg
Copper weight (kg per piece)
0.046
Customs tariff number
85369095
EAN
4028177140998
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Mini-PLS component adaptor, 40 A, 690 V, 3-pole, connection cable AWG 10, WH: 72x160 mm, support rail H: 7,5 mm
Feature → Business Impact → Application: The SV Mini-PLS adaptor offers a 40 A current rating and 690 V three-phase compatibility, ensuring safe power distribution without overloading; this translates to improved panel reliability and reduced rework in power management assemblies for data centers and manufacturing lines. The use of fire-protective polyamide (UL 94-V0) enhances enclosure safety and compliance, lowering risk of insulation-related failures in harsh environments, and supporting safer maintenance routines. The 72x160 mm footprint and 7.5 mm DIN rail compatibility simplify retrofits and new builds alike, enabling faster installation and modular scalability across conveyor systems and machine towers. With AWG 10 connection cables, installers gain consistent wire sizing benefits, improving termination quality and reducing field errors during commissioning. The adaptor is explicitly designed to fit Eaton PKZ2 models, streamlining compatibility in mixed-brand control panels and reducing stocking complexity. Copper weight and per-pack metrics aid in precise bill-of-materials planning and cost forecasting for projects with strict material traceability.
Get a Quick Quote for a Rittal 9627000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9627000?
Enquire Now
FAQs
Yes. The SV Mini-PLS adaptor is designed to fit Eaton PKZ2 assemblies, providing a reliable 40 A, 690 V three‑phase interface with AWG 10 conductors. Its 72x160 mm footprint and 7.5 mm DIN rail mounting simplify integration into existing panels and new builds alike, reducing field modification time.
Key specs include a rated operating voltage of 690 V (3~), a maximum current of 40 A, a 3-pole configuration, and connection cables sized to AWG 10. The component is built for compact installations with a width of 72 mm and height of 160 mm, suitable for tight control panels and power distribution enclosures.
Best suited for modular distribution panels in electrical cabinets within automation, machine-building, and power management contexts. It supports high-current, 690 V three-phase wiring in confined spaces, enabling safe interconnections for control cabinets, switchgear housings, and Eaton PKZ2-based systems.
The product carries UL 94-V0 fire-protection certification for its polyamide material, supporting safety compliance in industrial environments. It is specified for 690 V three-phase operation and is compatible with standard DIN rail mounting, aiding in compliant and repeatable installations.
The adaptor’s compact size and DIN rail mounting shorten installation time, while its compatibility with PKZ2 modules reduces complexity in mixed-brand panels. A lighter copper weight per piece and a 0.45 kg pack weight facilitate accurate BOM planning and warehousing, translating to lower labor costs and improved maintenance efficiency over the system lifecycle.
