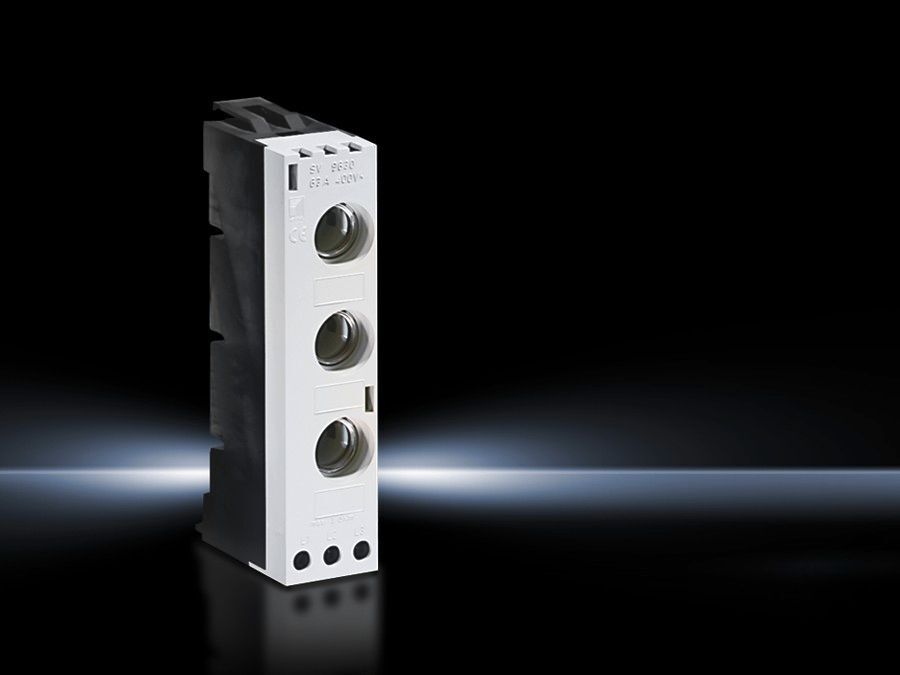

Rittal SV 9630.000 Fuse Base - 400 V, 63 A UL 94-V0
Part Number: 9630000
Manufacturer
Rittal
Part number
9630000
Category
Alt Part Number
SV 9630.000
Quick Summary
Rittal SV Mini-PLS fuse base is a compact bus-mounting solution that safely fuses and distributes power inside control panels. Engineers often struggle with limited panel space and complex wiring when expanding protection networks, which can slow commissioning and increase risk. This unit leverages UL 94-V0 fire-protection materials and a 400 V, 63 A three-pole design, aligning with ETIM EC001644 and ECLASS 27142120 standards for consistent data management. Designed for quick installation and scalable automation, the SV 9630.000 features a box-terminal connection for round conductors (1.5–16 mm²), an adaptor sleeve, and an included cover plate, delivering reliable performance in demanding environments.
Product Information
Extended Description
9630000 Rittal: SV Mini-PLS bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate
Article number
SV 9630.000
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 9011 | Cover: RAL 7035
Note
Wire end ferrules should be used with fine wire conductors
Type of electrical connection
Box terminal
Fuse inserts
D 02-E 18 (adaptor sleeve)
Rated operating voltage
400 V
Rated current max.
63 A
Dimensions
Width: 38 mm | Height: 160 mm
Connection for round conductor
1.5 ‐ 16 mm²
Packs of
1 pc(s).
Weight/pack
0.35 kg
Copper weight (kg per piece)
0.11
Customs tariff number
85369095
EAN
4028177149908
ETIM 9
EC001644
ECLASS 8.0
27142120
Product description
SV Mini-PLS bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate
3-pole, 400 V, 63 A capability ensures robust protection for motor drives and logic circuits in compact control panels. This translates to fewer component swaps and predictable short-circuit response, supporting faster commissioning in manufacturing lines. In practice, engineers can consolidate protection blocks without expanding cabinet depth. Adaptor sleeve with D02-E18 fuse inserts and box-terminal wiring for round conductors 1.5–16 mm² simplifies terminations and reduces wiring error. The result is consistent, repeatable installations and easier field servicing, which lowers maintenance time and improves overall equipment uptime. UL 94‑V0 fire-protection polyamide housing enhances enclosure safety in harsh environments and helps meet internal fire-safety standards. The strong, stable chassis color coding (RAL 9011/7035) aids visual inspection and quick fault isolation during audits. Space-efficient dimensions (38 mm wide, 160 mm tall) and an integrated cover plate reduce cabinet footprint and simplify mounting in tight panels. These features translate into lower warehousing, fewer part numbers, and faster project delivery for machine builders. Compatibility with standard Rittal components and ETIM/ECLASS classification ensures smoother procurement and data synchronization with ERP and BOM systems.
