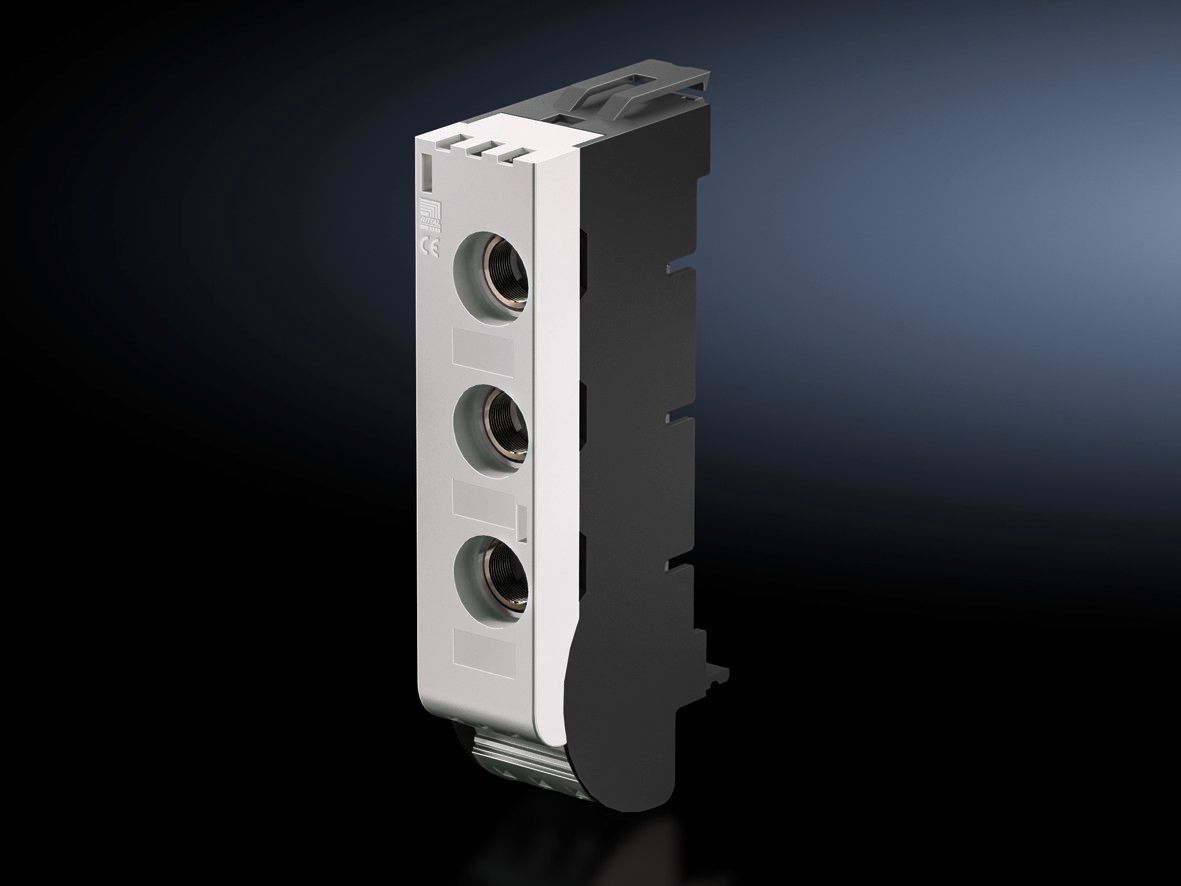

Rittal SV 9630.005 Fuse Base - 63 A, 400 V, UL 94-V0
Part Number: 9630005
Manufacturer
Rittal
Part number
9630005
Category
Alt Part Number
SV 9630.005
Quick Summary
Rittal SV 9630.005 is a bus-mounting fuse base designed for reliable power distribution in control panels and switchgear. It resolves common pain points around secure terminations and compact layouts in small to mid-size enclosures. Built with UL 94-V0 flame-rated polyamide and a robust 3-pole design, this base supports round conductors from 1.5 to 16 mm² and 400 V operation. The product integrates with ETIM EC001644 and ECLASS 27142120 data, ensuring smooth procurement and data synchronization across engineering and purchasing systems. In practice, it delivers consistent contact reliability, safer maintenance routines, and predictable performance in demanding automation applications.
Product Information
Extended Description
9630005 Rittal: SV Mini-PLS bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², tension spring clamp, WH: 39,5x189 mm
Article number
SV 9630.005
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 9011 | Cover: RAL 7035
Type of electrical connection
Spring terminal
Fuse inserts
D 02-E 18
Rated current max.
63 A
Dimensions
Width: 39.5 mm | Height: 189 mm
Connection for round conductor
1.5 ‐ 16 mm²
Packs of
1 pc(s).
Weight/pack
0.374 kg
Copper weight (kg per piece)
0.11
Customs tariff number
85369095
EAN
4028177809024
ETIM 9
EC001644
ECLASS 8.0
27142120
Product description
SV Mini-PLS bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², tension spring clamp, WH: 39,5x189 mm
Feature → Business Impact → Application: 63 A rated current with 400 V capability and D02-E18 fuse inserts delivers appropriate protection for mid-range power rails in automation panels, reducing overload risk and minimizing downtime. This translates to safer machine operation and lower warranty exposure in factory automation and packaging lines. Feature → Business Impact → Application: Round conductor connection 1.5–16 mm² with tension spring clamp ensures secure, vibration-resistant terminations, speeding field wiring and lowering maintenance labor in robotics cells and CNC controls. Feature → Business Impact → Application: SV Mini-PLS bus-mounting design provides a compact footprint (WH 39.5 x 189 mm) that fits tight control panel spaces while preserving accessibility for fuse replacement, ideal for space-constrained switchgear and motor control centers. Feature → Business Impact → Application: Polyamide housing with UL 94-V0 fire protection enhances safety compliance in harsh environments typical of machine rooms and process lines, supporting regulatory audits and reducing risk. Feature → Business Impact → Application: Chassis and cover color coding (RAL 9011/7035) aids panel organization and fault diagnosis during commissioning, aiding technicians in quick visual checks and reducing error rates. Feature → Business Impact → Application: One-piece packaging (1 pc per pack) with documented dimensions and copper weight (0.11 kg per piece) simplifies BOM planning and total cost of ownership for assembly lines and upgrade programs.
Get a Quick Quote for a Rittal 9630005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9630005?
Enquire Now
FAQs
The SV 9630.005 supports round conductors from 1.5 to 16 mm². It uses a tension spring clamp for secure terminations and is designed to accommodate D02-E18 fuse inserts, enabling reliable protection in 3-pole configurations up to 63 A at 400 V.
Install the base in a bus-mounting arrangement (SV Mini-PLS) with its 3-pole layout. Use the spring terminal connections for each pole, ensure the conductor gauge falls within 1.5–16 mm², and verify the footprint (WH 39.5 x 189 mm) fits the available panel space. Fuse inserts snap in as D02-E18.
Yes. The base is rated for 63 A maximum and 400 V operation, making it suitable for medium to high current protection in 3-pole panels and switchgear where compact bus-mounting is required.
The housing material is polyamide with UL 94-V0 flame protection, delivering enhanced fire-safety performance in industrial enclosures. This aligns with common safety expectations for components inside control panels and power distribution assemblies.
The unit ships 1 piece per pack and weighs 0.374 kg per pack, with copper weight 0.11 kg per piece. Having the D02-E18 fuse inserts on hand simplifies replacements, while the 39.5 x 189 mm footprint helps with accurate panel planning and fast swap-outs during preventive maintenance.
