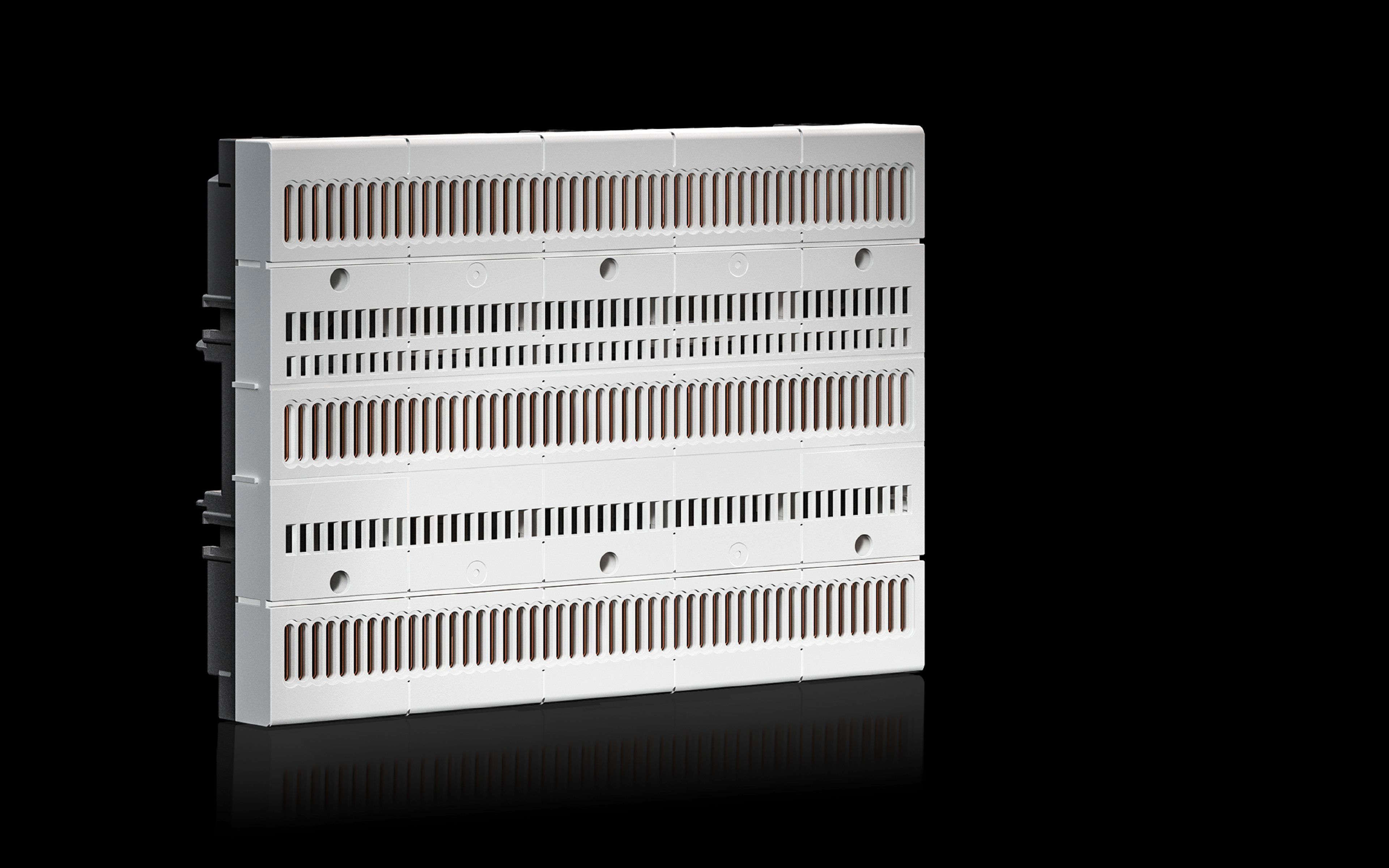

Rittal SV 9635.000 Board - UL 508, 125A, 690V
Part Number: 9635000
Manufacturer
Rittal
Part number
9635000
Category
Alt Part Number
SV 9635.000
Quick Summary
The Rittal SV 9635.000 board is a shock-hazard-protected busbar board for safe component mounting in control cabinets. Engineers often wrestle with wiring complexity and maintenance risk; this design simplifies tasks with plug-in mounting and integral busbars. It carries UL 508 compliance, IP 20 protection, and UL 94 fire performance to support global deployments and safety-critical applications. Designed for modular power distribution and easy integration with DIN rails and mounting plates, it helps reduce installation time, minimize wiring errors, and improve panel reliability for higher system uptime.
Product Information
Extended Description
9635000 Rittal: SV Board, 125 A, 690 V (AC). 600 V (DC), 3-pole, WHD: 225x160x45,1 mm
Article number
SV 9635.000
Function principle
Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting
Material
Polyamide | Polycarbonate | E-Cu | Fire protection corresponding to UL 94
Colour
RAL 7035
Supply includes
Integral busbars
Supply includes
Integral busbars
IP protection category to IEC 60 529
IP 20
Standards
UL 508
Rated current max.
125 A
Rated current (UL)
100 A
Rated operating voltage
690 V (AC)
Rated operating voltage (max.) UL
600 V (AC)
Max. pitch units @ 45 mm
5
Note
The technical data may vary for UL applications
For mounting on support rails
Yes
for mounting plate assembly
Yes
Dimensions
Width: 225 mm | Height: 160 mm | Depth: 45.1 mm
Packs of
1 pc(s).
Weight/pack
0.808 kg
Copper weight (kg per piece)
0.302
Customs tariff number
85469010
EAN
4028177817418
ETIM 8
EC001900
ETIM 7.0
EC001900
ECLASS 8.0
27400613
Product description
SV Board, 125 A, 690 V (AC). 600 V (DC), 3-pole, WHD: 225x160x45,1 mm
Feature: Integral busbars and the board’s Polyamide | Polycarbonate | E-Cu construction provide a robust, fire-protected foundation. Business Impact: Reduces wiring length and contact resistance while improving safety and reliability. Application: Ideal for control panels where compact, safe power distribution is required. Feature: Rated current max. 125 A and Rated operating voltage 690 V (AC). Business Impact: Supports higher current paths and broad voltage handling, enabling scalable distribution without frequent redesign. Application: Industrial machines and automation cabinets needing reliable power routing. Feature: 3-pole configuration with WHD 225 x 160 x 45 mm footprint. Business Impact: Delivers a compact, space-saving solution with straightforward installation. Application: Modern enclosures where panel depth is constrained. Feature: IP protection IP 20 and UL 508 standard. Business Impact: Ensures safety in nonhazardous environments and regulatory compliance across markets. Application: Panel assemblies subjected to clean or moderately industrial environments. Feature: Support rails and mounting plate compatibility. Business Impact: Simplifies mounting and reduces assembly time, improving maintenance efficiency. Application: DIN rail and plate-mounted systems in machine control panels. Feature: Weight and material details (0.808 kg per pack; copper weight 0.302 kg). Business Impact: Predictable thermal behavior and handling during field service. Application: Thermal management planning in compact enclosures with integral busbars.
