Rittal SV 9635.020 Board - UL 508, RiLine Compact
Part Number: 9635020
Manufacturer
Rittal
Part number
9635020
Category
Alt Part Number
SV 9635.020
Quick Summary
The Rittal SV 9635.020 Board is a shock-hazard-protected busbar for safe component mounting in control panels. Many engineers struggle with wiring complexity, hidden arcing risk, and inconsistent UL compliance in compact assemblies. It aligns with UL 508 and IP 20 protection while leveraging RiLine Compact for reliable distribution; this combination supports faster assembly and safer operation. By integrating integral busbars and a plug-in mounting approach, the solution reduces wiring effort, simplifies maintenance, and enhances panel reliability—delivering clear business value in control panel fabrication and machine-building projects.
Product Information
Extended Description

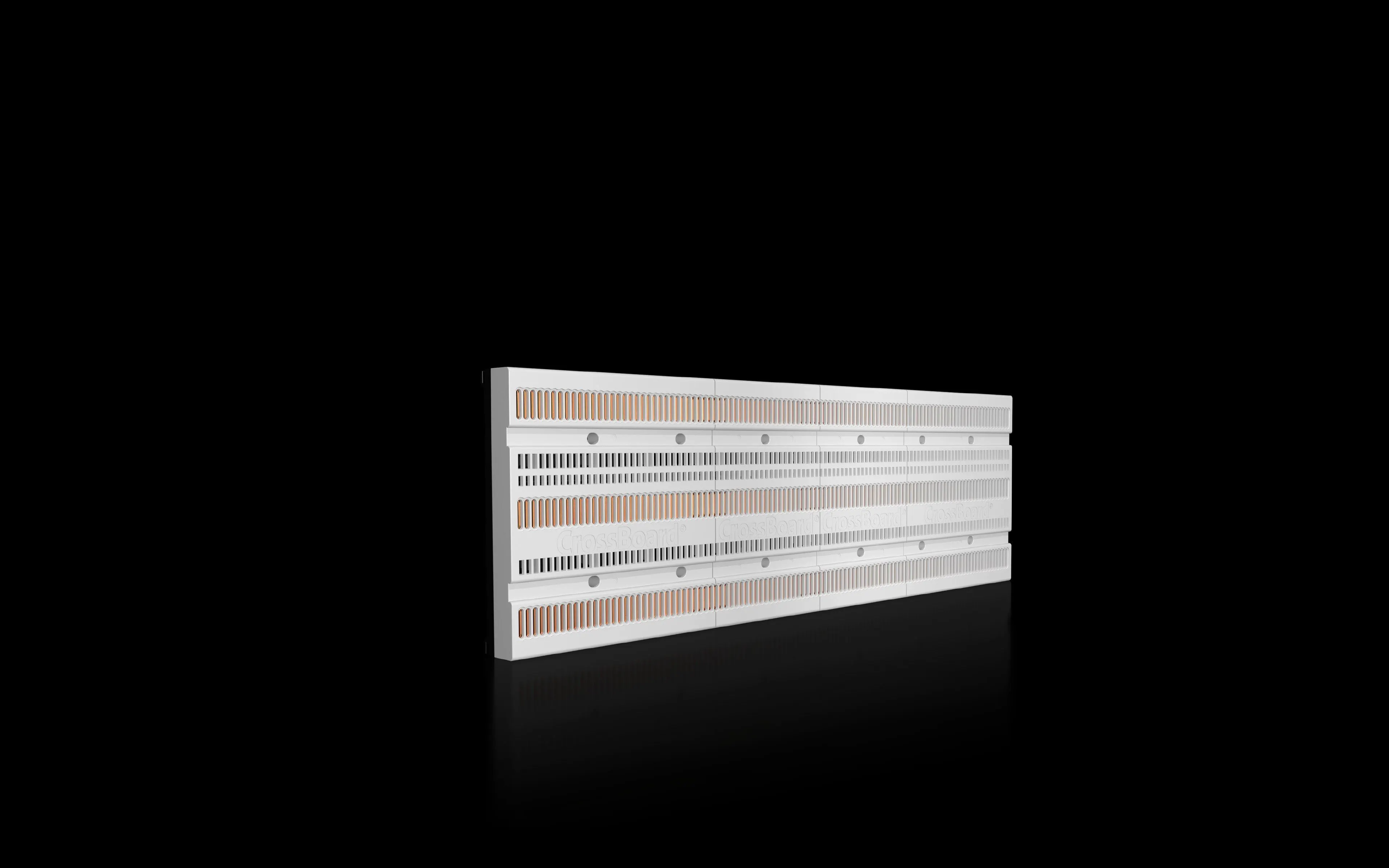

9635020 Rittal: SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 500x160x45 mm (RiLine Compact)
Article number
SV 9635.020
Function principle
Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting
Material
Polyamide | Polycarbonate | E-Cu | Fire protection corresponding to UL 94
Colour
RAL 7035
Supply includes
Integral busbars
IP protection category to IEC 60 529
IP 20
Standards
UL 508
Rated current max.
160 A
Rated operating voltage
690 V (AC)
Note
The technical data may vary for UL applications
for mounting plate assembly
Yes
Number of poles
3-pole
Dimensions
Width: 500 mm | Height: 160 mm | Depth: 45.1 mm
Packs of
1 pc(s).
Copper weight (kg per piece)
1.11
Customs tariff number
85469010
EAN
4028177978447
ETIM 9
EC001900
ETIM 8
EC001900
ECLASS 8.0
27400613
Product description
SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 500x160x45 mm (RiLine Compact)
Feature → Business Impact → Application: The SV 9635.020 Board uses shock-hazard-protected busbars to safely host components, reducing the risk of electrical contact and arcing in high-density panels. Business impact: improved safety, faster commissioning, and lower service downtime. Application: ideal for enclosed control panels and distribution boards in manufacturing lines where reliability matters. Feature → Business Impact → Application: Integral busbars supplied with the board streamline wiring and ensure consistent conductor alignment. Business impact: shorter wiring harnesses, reduced installation errors, and easier future upgrades. Application: machine builders seeking modular, scalable power distribution with RiLine Compact compatibility. Feature → Business Impact → Application: 3-pole, 160 A capacity at 690 V (AC) supports medium-power applications with a compact footprint. Business impact: higher current carrying capability within a 500x160x45 mm form factor. Application: compact control panels for automated systems and process machines. Feature → Business Impact → Application: UL 508 conforming design and IP 20 protection provide regulatory confidence and enclosure safety. Business impact: simplified compliance, safer operation, and predictable performance. Application: systems in machinery, packaging, robotics, and process automation where certified control components matter. This product is designed for easy mounting plate assembly, enabling rapid turnkey installations in standard cabinet enclosures.
