Rittal SV 9635.030 Board - UL 508
Part Number: 9635030
Manufacturer
Rittal
Part number
9635030
Category
Alt Part Number
SV 9635.030
Quick Summary
SV 9635.030 board provides shock-hazard-protected busbar assembly for safe contact in compact control panels. Engineers often wrestle with wiring complexity and mounting errors in RiLine Compact configurations. UL 508 compliance, IP20 ingress protection, and the UL 94 material rating provide reliable safety, environmental performance, and regulatory confidence across North American and European installations. This design reduces field wiring and simplifies installation through plug-in mounting, enhancing reliability and serviceability. It also supports standardized mounting plates, enabling quick panel customization and scalable power distribution for growing automation projects. The result is faster commissioning, lower installation cost, and improved maintainability for control panels and switchgear.
Product Information
Extended Description

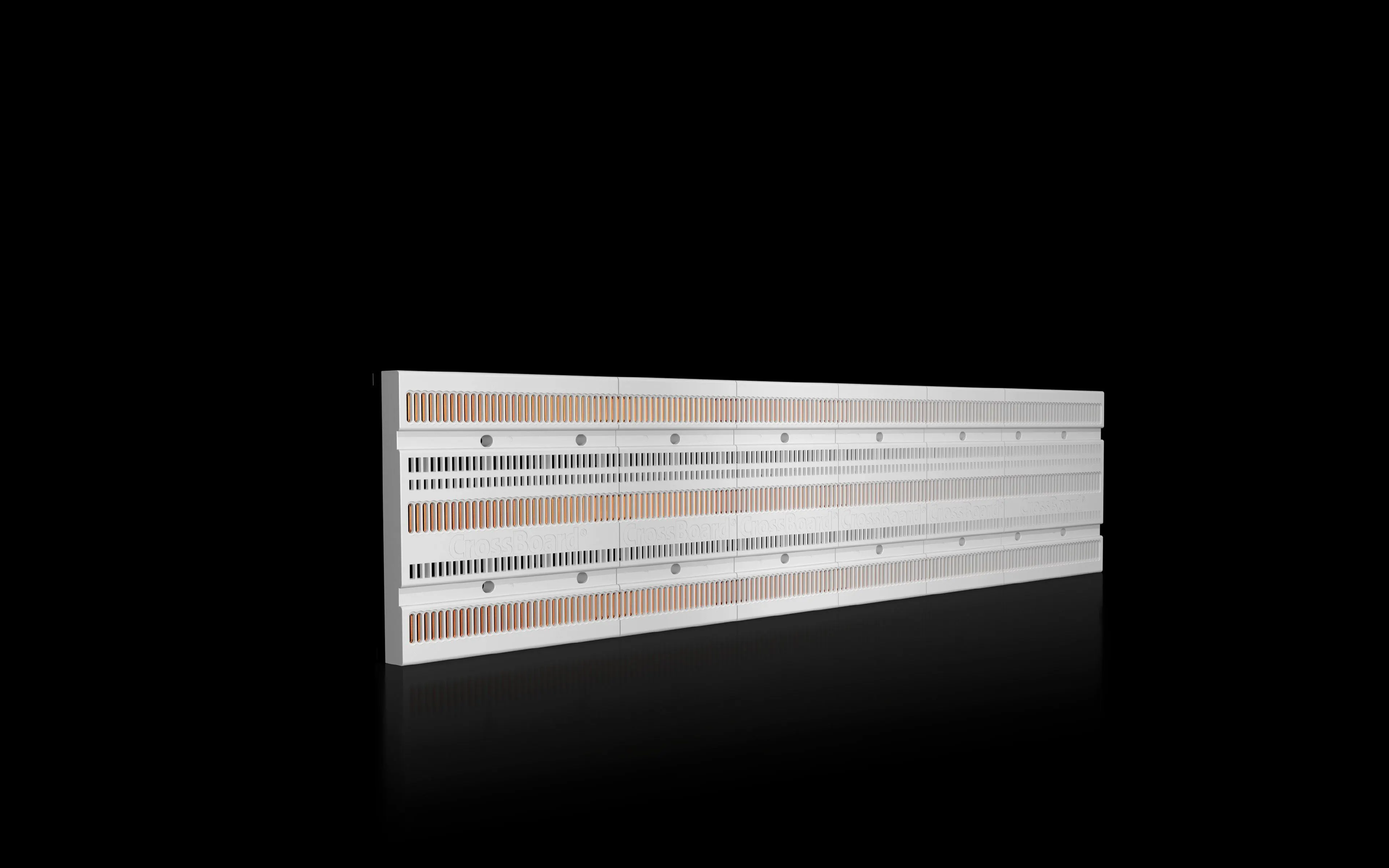

9635030 Rittal: SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 700x160x45.1 mm (RiLine Compact)
Article number
SV 9635.030
Function principle
Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting
Material
Polyamide | Polycarbonate | E-Cu | Fire protection corresponding to UL 94
Colour
RAL 7035
Supply includes
Integral busbars
IP protection category to IEC 60 529
IP 20
Standards
UL 508
Rated current max.
160 A
Rated operating voltage
690 V (AC)
Note
The technical data may vary for UL applications
for mounting plate assembly
Yes
Number of poles
3-pole
Dimensions
Width: 700 mm | Height: 160 mm | Depth: 45.1 mm
Packs of
1 pc(s).
Copper weight (kg per piece)
1.57
Customs tariff number
85469010
EAN
4028177978423
ETIM 9
EC001900
ETIM 8
EC001900
ECLASS 8.0
27400613
Product description
SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 700x160x45.1 mm (RiLine Compact)
Feature → Business Impact → Application: Shock-hazard-protected busbar board with simple plug-in mounting reduces wiring errors and enhances operator safety while shortening panel assembly time. This supports RiLine Compact configurations in control panels and distribution cabinets, delivering measurable gains in installation speed and fault resistance. Feature → Business Impact → Application: Integral busbars sized for 160 A and 690 V (AC) with 3 poles simplifies the power path, minimizing loose conductors and field connections, which lowers commissioning time and post-install adjustments in industrial automation projects. Feature → Business Impact → Application: Polyamide | Polycarbonate | E-Cu construction with UL 94 fire protection provides durable isolation and safety under demanding environments, helping manufacturers meet stringent fire and durability standards without extra enclosure hardware. Feature → Business Impact → Application: IP20 protection and UL 508 certification deliver reliable indoor performance and regulatory alignment for panel builders serving US/Canada and international sites, reducing compliance risks. Feature → Business Impact → Application: Dimensions (WHD 700x160x45.1 mm) and packs of 1 piece enable modular expansion and easy integration with mounting plates, allowing scalable power distribution in compact spaces. Feature → Business Impact → Application: Compatibility with RiLine Compact and plug-in mounting supports faster changes, easier maintenance, and lower total cost of ownership for medium-to-high demand control panels.
