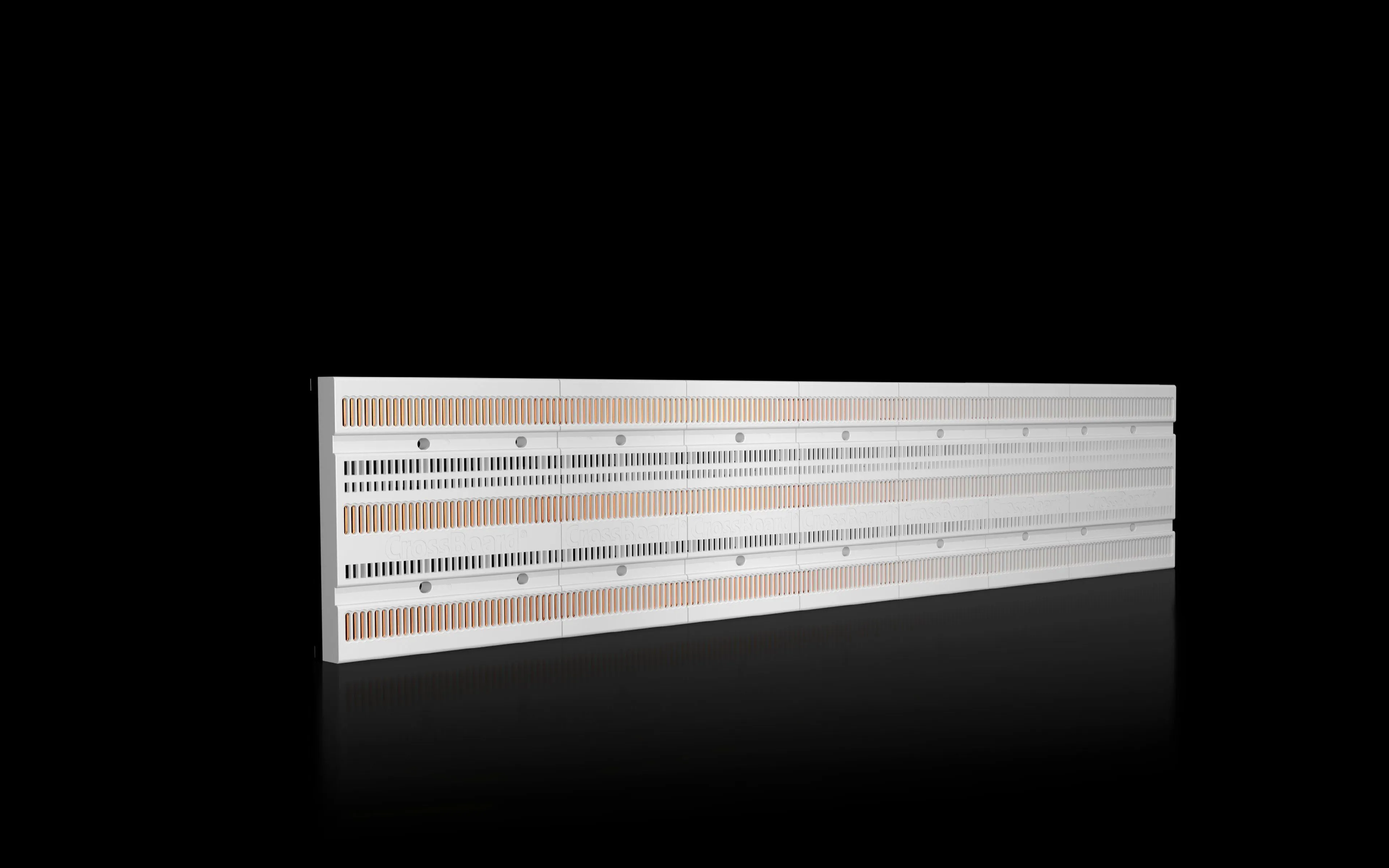

Rittal SV 9635.035 Board - Busbar System RiLine Compact
Part Number: 9635035
Manufacturer
Rittal
Part number
9635035
Category
Alt Part Number
SV 9635.035
Quick Summary
SV 9635.035 Board is a shock-hazard-protected busbar board for safe component mounting in RiLine Compact panels. Engineers often struggle with space constraints and the risk of wiring errors in confined control cabinets. This solution aligns with UL 508 for industrial control panels, IP 20 protection, and UL 94 flame resistance, supporting compliant, safety-driven installations. The plug-in mounting and integral busbars simplify assembly, cut wiring time, and improve serviceability, delivering measurable gains in reliability and total cost of ownership for power-management enclosures.
Product Information
Extended Description
9635035 Rittal: SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 800x160x45.1 mm (RiLine Compact)
Article number
SV 9635.035
Function principle
Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting
Material
Polyamide | Polycarbonate | E-Cu | Fire protection corresponding to UL 94
Colour
RAL 7035
Supply includes
Integral busbars
IP protection category to IEC 60 529
IP 20
Standards
UL 508
Rated current max.
160 A
Rated operating voltage
690 V (AC)
Note
The technical data may vary for UL applications
for mounting plate assembly
Yes
Number of poles
3-pole
Dimensions
Width: 800 mm | Height: 160 mm | Depth: 45.1 mm
Packs of
1 pc(s).
Copper weight (kg per piece)
1.79
Customs tariff number
85469010
EAN
4028177978416
ETIM 9
EC001900
ETIM 8
EC001900
ECLASS 8.0
27400613
Product description
SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 800x160x45.1 mm (RiLine Compact)
Feature: Integral busbars and 160 A rated current. Business impact: enables compact distribution with high current in a small footprint, improving panel efficiency and reducing enclosure size. Application: RiLine Compact cabinets used in machine building and automation. Feature: Shock-hazard protected design with simple plug-in mounting. Business impact: enhances operator safety and minimizes field wiring faults, lowering maintenance incidents. Application: routine cabinet servicing and retrofit projects. Feature: Flame-retardant material (UL 94) and IP 20 protection. Business impact: supports regulatory compliance and safer installations in harsh environments. Application: industrial control panels with stringent safety requirements. Feature: 3-pole configuration at 800x160x45.1 mm (W x H x D). Business impact: standardizes wiring layouts, reduces harness complexity, and enables faster panel builds. Application: RiLine Compact power distribution in control cabinets. Feature: UL 508 compliant and UL 94 noted materials. Business impact: reduces rework risk, accelerates certification processes, and improves reliability. Application: new machine builds and retrofits in regulated industries.
