Rittal SV 9635.045 Busbar Board - UL 508 Compliant
Part Number: 9635045
Manufacturer
Rittal
Part number
9635045
Category
Alt Part Number
SV 9635.045
Quick Summary
Rittal SV 9635.045 busbar board provides safe, compact power distribution for RiLine Compact systems in control cabinets. Wiring complexity and safety concerns often slow panel assembly and increase downtime. The unit meets UL 508, IP20 protection, and UL 94 flame protection, helping ensure regulatory compliance and safer operation in demanding industrial environments. With a 160 A rated current at 690 V AC, 3-pole configuration and integral busbars, it enables fast plug-in mounting and neater cable management. This design supports reliable, long-term performance in machine building and automated processes while aligning with RiLine Compact compatibility and standard enclosure practices.
Product Information
Extended Description

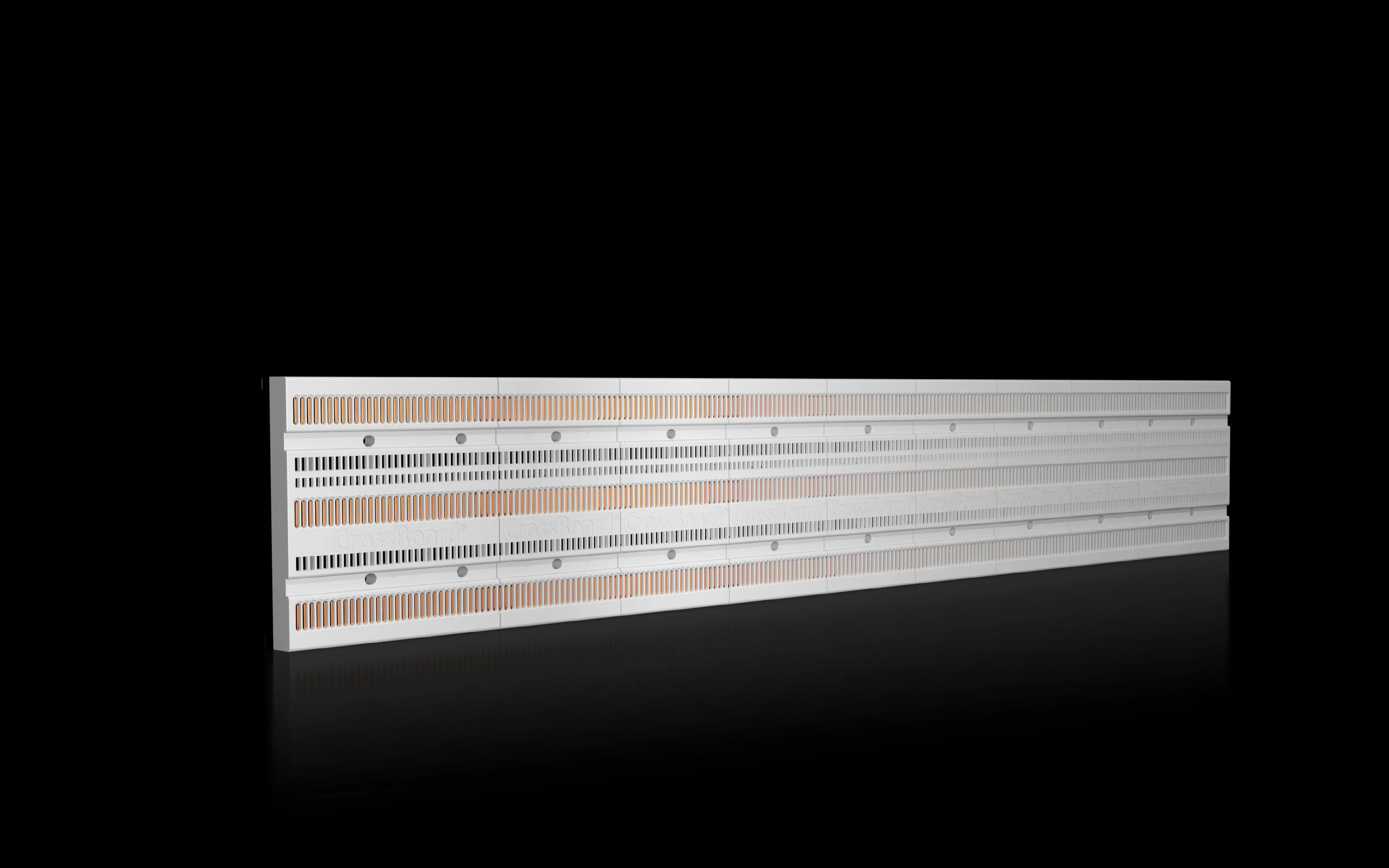

9635045 Rittal: SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 1000x160x45.1 mm (RiLine Compact)
Article number
SV 9635.045
Function principle
Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting
Material
Polyamide | Polycarbonate | E-Cu | Fire protection corresponding to ULÂ 94
Colour
RAL 7035
Supply includes
Integral busbars
IP protection category to IEC 60 529
IP 20
Standards
UL 508
Rated current max.
160 A
Rated operating voltage
690Â VÂ (AC)
Note
The technical data may vary for UL applications
for mounting plate assembly
Yes
Number of poles
3-pole
Dimensions
Width:Â 1,000 mm | Height:Â 160 mm | Depth:Â 45.1 mm
Packs of
1 pc(s).
Copper weight (kg per piece)
2.24
Customs tariff number
85469010
EAN
4028177978393
ETIM 9
EC001900
ETIM 8
EC001900
ECLASS 8.0
27400613
Product description
SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 1000x160x45.1 mm (RiLine Compact)
Shock-hazard-protected busbar board with simple plug-in mounting improves operator safety and speeds wiring, reducing commissioning time in control panels. In practice, technicians can connect components quickly while preserving robust electrical contact, which lowers the risk of loose connections during daily operation. The integral busbars and flame-retardant materials (polyamide, polycarbonate, EC copper; UL 94) enhance safety and help meet fire safety requirements in dense electrical cabinets. This construction yields durable, maintenance-friendly assemblies with fewer parts to stock, cutting downtime during upgrades or panel refurbishments. Rated for 160 A at 690 V AC and 3 poles, the SV 9635.045 supports reliable power distribution in RiLine Compact installations, improving consistency across automated lines. The IP20 protection and UL 508 compliance reduce regulatory risk while enabling straightforward integration into standard control enclosures. Compatibility with mounting plates and the 1000 x 160 x 45.1 mm footprint streamlines layout optimization and cabinet planning. Copper weight of 2.24 kg per piece ensures solid, low-resistance conductive paths for steady performance.
