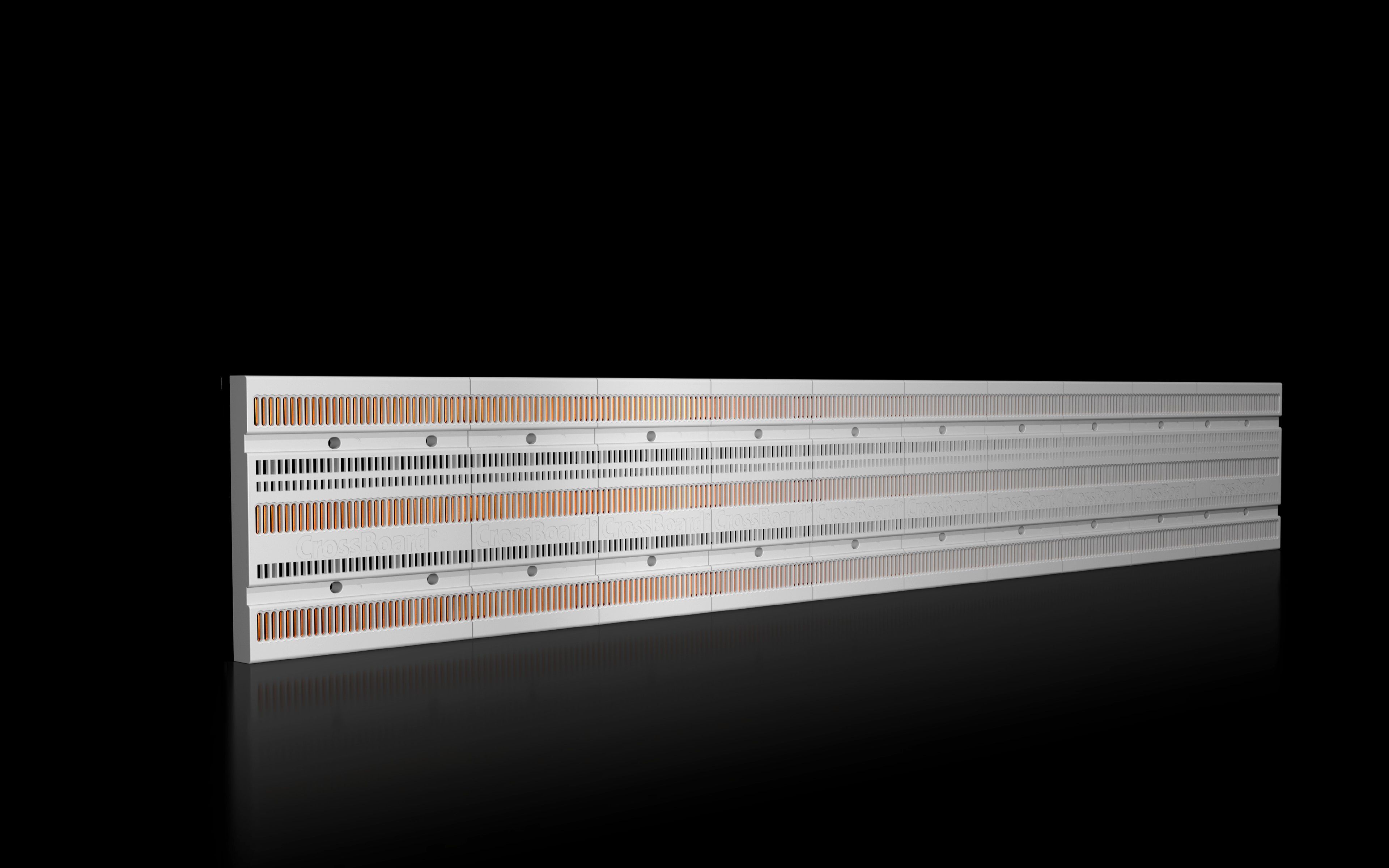

Rittal SV 9635.050 Busbar Board - RiLine Compact, UL 508
Part Number: 9635050
Manufacturer
Rittal
Part number
9635050
Category
Alt Part Number
SV 9635.050
Quick Summary
The Rittal SV 9635.050 Busbar Board distributes power safely within RiLine Compact systems. In panel builds, engineers struggle with space constraints, insulation reliability, and the risk of arc faults during wiring. This board carries UL 508 certification, IP 20 protection, and UL 94-compliant materials, delivering robust compliance in demanding factories. Its plug‑in mounting and integral busbars simplify installation, cut commissioning time, and support scalable panel design for future expansions. Aligned with RiLine Compact, it integrates smoothly with standard mounting plates, enabling predictable maintenance costs and safer, more efficient power distribution.
Product Information
Extended Description
9635050 Rittal: SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 1100x160x45.1 mm (RiLine Compact)
Article number
SV 9635.050
Function principle
Shock-hazard-protected busbar board for the safe accommodation and contacting of components, thanks to simple plug-in mounting
Material
Polyamide | Polycarbonate | E-Cu | Fire protection corresponding to UL 94
Colour
RAL 7035
Supply includes
Integral busbars
IP protection category to IEC 60 529
IP 20
Standards
UL 508
Rated current max.
160 A
Rated operating voltage
690 V (AC)
Note
The technical data may vary for UL applications
for mounting plate assembly
Yes
Number of poles
3-pole
Dimensions
Width: 1,100 mm | Height: 160 mm | Depth: 45.1 mm
Packs of
1 pc(s).
Copper weight (kg per piece)
2.47
Customs tariff number
85469010
EAN
4028177978386
ETIM 9
EC001900
ETIM 8
EC001900
ECLASS 8.0
27400613
Product description
SV Board, 160 A, 690 V (AC), 600 V (DC), 3-pole, WHD: 1100x160x45.1 mm (RiLine Compact)
Shock-hazard-protected busbar board with simple plug-in mounting enhances safety and accelerates wiring in control panels. The integrated design minimizes exposed conductors and allows rapid field upgrades, while RiLine Compact compatibility supports scalable configurations for evolving plant layouts. With a rated current of 160 A and a rated operating voltage of 690 V AC in a 3-pole configuration, the SV 9635.050 handles demanding power distribution tasks without oversizing components. The 1,100 mm width and 45.1 mm depth fit compact enclosures and simplify layout planning for panel builders. Constructed from a durable mix of polyamide, polycarbonate, and electro-conductive copper, the board offers intrinsic fire protection per UL 94 and IP 20 ingress protection, supporting safety compliance in harsh environments. Plug-in mounting and mounting plate assembly compatibility streamline installation; integral busbars cut wiring complexity and improve repeatability across assemblies. The copper weight of 2.47 kg per piece provides a sturdy contact path, helping reduce service interruptions during maintenance. UL 508 certification and related standards underpin compliance for industrial control panels, while the product description and ECLASS/ETIM references support procurement workflows. By standardizing on a known platform, panel shops achieve faster approvals, consistent BOMs, and lower total cost of ownership over the equipment lifecycle.
Get a Quick Quote for a Rittal 9635050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635050?
Enquire Now
FAQs
The SV 9635.050 supports plug-in mounting and is designed for mounting plate assembly compatibility, enabling quick integration into RiLine Compact panels. This approach reduces assembly steps, minimizes exposed conductors, and allows straightforward reconfiguration or expansion in evolving control cabinets.
Wiring is simplified by integral busbars and a plug-in mounting approach. Position the board within the panel, connect mating components to the integrated busbars, and secure with standard RiLine Compact mounting practices. This reduces field wiring complexity, shortens commissioning times, and improves repeatability across multiple panels.
Yes. The SV 9635.050 adheres to UL 508 for industrial control equipment and offers IP 20 protection. Its UL 94-compliant fire-protective materials further support compliance in regulated environments, making it suitable for UL-listed panel assemblies and broader industrial installations.
Installation time is reduced through plug-in mounting and integral busbars, which minimize wiring tasks and rework. The robust Cu busbars and standardized dimensions facilitate predictable maintenance intervals and faster component replacements, lowering downtime and total cost of ownership in high-demand manufacturing lines.
Safety is enhanced by shock-hazard protection and enclosure-integrated busbars, reducing touch risks. Compliance is supported by UL 508 certification and IP 20 protection, while UL 94 fire-protective materials provide additional safety margins. These features collectively simplify regulatory approvals and improve long-term reliability in panel builds.
