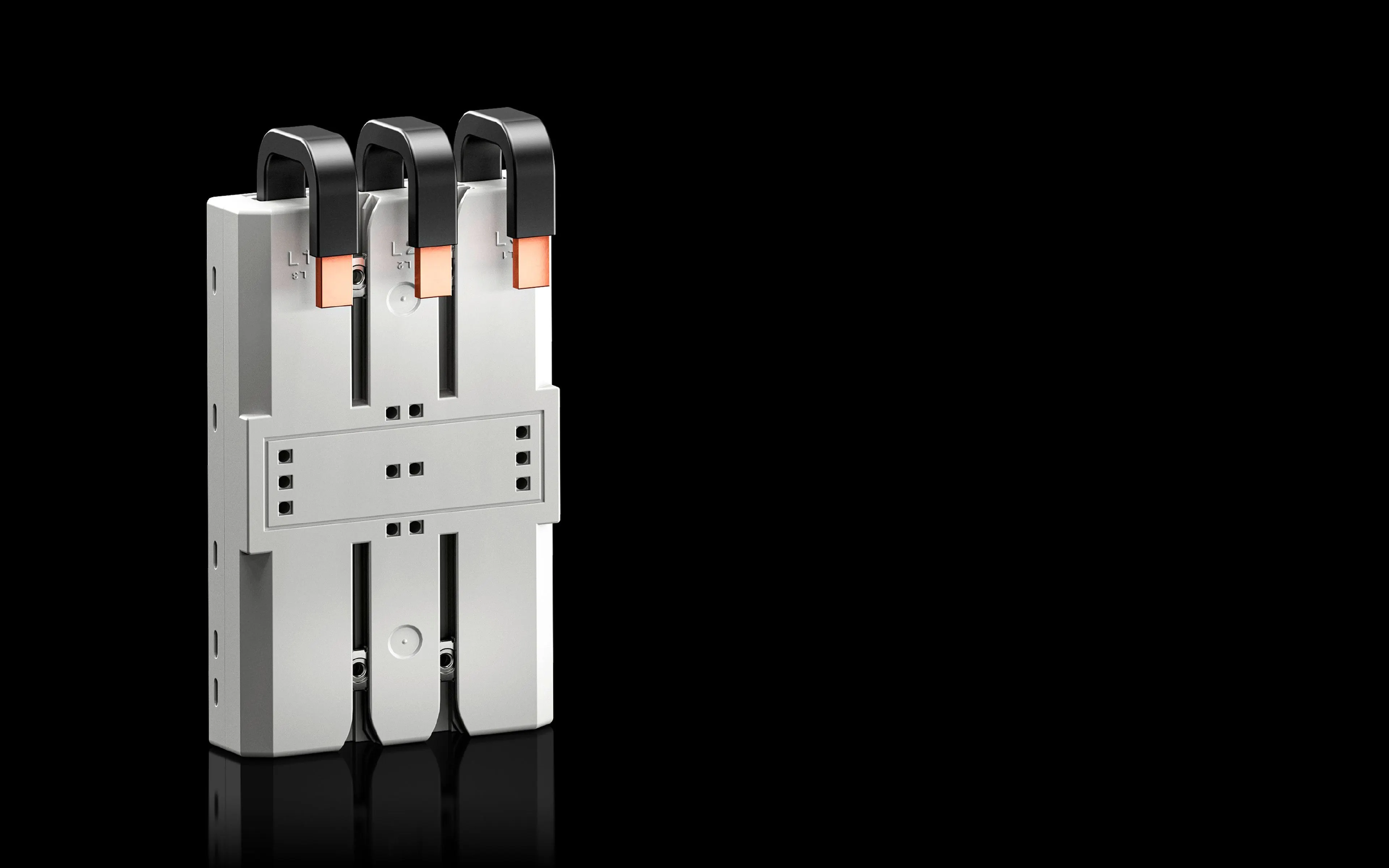

Rittal 9635100 SV CB component adaptor - UL 94-V0
Part Number: 9635100
Manufacturer
Rittal
Part number
9635100
Category
Alt Part Number
SV 9635.100
Quick Summary
SV CB component adaptor is a mounting accessory designed to attach circuit-breakers directly to control panels. Engineers face wiring complexity, insulation gaps, and inconsistent contact force when panel mounting isn’t optimized. This unit supports UL 94-V0 fire protection, handles up to 160 A and 600 V DC in a compact 3-pole design, and fits ABB XT1 modules. The 90 x 160 mm footprint with 25 mm mounting distance supports flexible layouts, while top/bottom cable outlets streamline wiring. Rittal's polyamide housing ensures reliable insulation across typical industrial temperatures, improving long-term safety. By simplifying assembly and improving contact reliability, it reduces panel-space usage and speeds commissioning. For panel builders and OEMs, this translates to lower risk, shorter lead times, and easier maintenance.
Product Information
Extended Description
9635100 Rittal: SV CB component adaptor160 A, 690 V (AC), 600 V (DC), 3-pole WH: 90 x 160 mm, mounting distance 25 mm
Article number
SV 9635.100
Function principle
For mechanical attachment and direct contacting of circuit-breakers on the board
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Note
Consider the mounting distance of the circuit-breaker when selecting the circuit-breaker component adaptor
Rated current max.
160 A
Rated operating voltage
600 V (DC), 3~
Number of poles
3-pole
Dimensions
Width: 90 mm | Height: 160 mm | Depth: 45 mm
Distance between fixing points
25 mm
Cable outlet
Top/bottom
To fit manufacturer (model)
ABB (XT1)
Packs of
1 pc(s).
Weight/pack
0.582 kg
Copper weight (kg per piece)
0.276
Customs tariff number
85369095
EAN
4028177951877
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV CB component adaptor160 A, 690 V (AC), 600 V (DC), 3-pole WH: 90 x 160 mm, mounting distance 25 mm
Feature → Business Impact → Application: The adaptor’s 3-pole design supports direct contacting of circuit-breakers on the board, enabling reliable, tight electrical connections that reduce contact resistance and improve safety in high-current environments. This translates to fewer field faults and easier maintenance in automated control panels found in manufacturing lines and process industries. Feature → Business Impact → Application: 90 x 160 mm footprint with a 25 mm mounting distance provides flexible placement within compact enclosures, accelerating panel layout optimization and enabling faster commissioning on ABB XT1-based assemblies. Feature → Business Impact → Application: Top/bottom cable outlets simplify wiring routes, reducing install time and enabling neater cable management for scalable dashboards and switchgear. Feature → Business Impact → Application: UL 94-V0 compliant polyamide housing ensures fire safety and insulation integrity across operating temperatures, supporting regulatory compliance and safer OEM deployments. Feature → Business Impact → Application: 160 A and 600 V DC ratings support demanding industrial apps, from machine tools to process automation, delivering robust performance with lower total cost of ownership. Feature → Business Impact → Application: ABB XT1 compatibility ensures seamless retrofit and standardization across existing control panels, reducing migration risk and vendor lock-in.
Get a Quick Quote for a Rittal 9635100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635100?
Enquire Now
FAQs
Ensure correct mounting distance of 25 mm and the 90 x 160 mm footprint, use top or bottom cable outlets for orderly wiring, and align the adaptor with ABB XT1 breakers. Verify UL 94-V0 material integrity and secure mounting to prevent contact misalignment during vibration.
The adaptor is rated for up to 160 A and 600 V DC, supporting robust breaker contact in demanding applications. This ensures reliable operation in 3-pole configurations and reduces the risk of overheating or insulation breakdown in automation panels.
Yes. The adaptor is designed to fit ABB XT1 models, with a 3-pole design and standardized mounting spacing that simplifies retrofits and standardization across panels, minimizing rework and downtime.
The adaptor features UL 94-V0 fire protection for improved insulation safety, a critical consideration for panel integrity and regulatory compliance in many regions. It also carries standard ratings (160 A, 600 V DC) that align with common industrial requirements.
By enabling straightforward assembly, reliable contacts, and ABB XT1 compatibility, the adaptor reduces commissioning time, lowers risk of wiring faults, and supports maintenance-friendly, scalable panel designs, yielding lower total cost of ownership over the life of the system.
