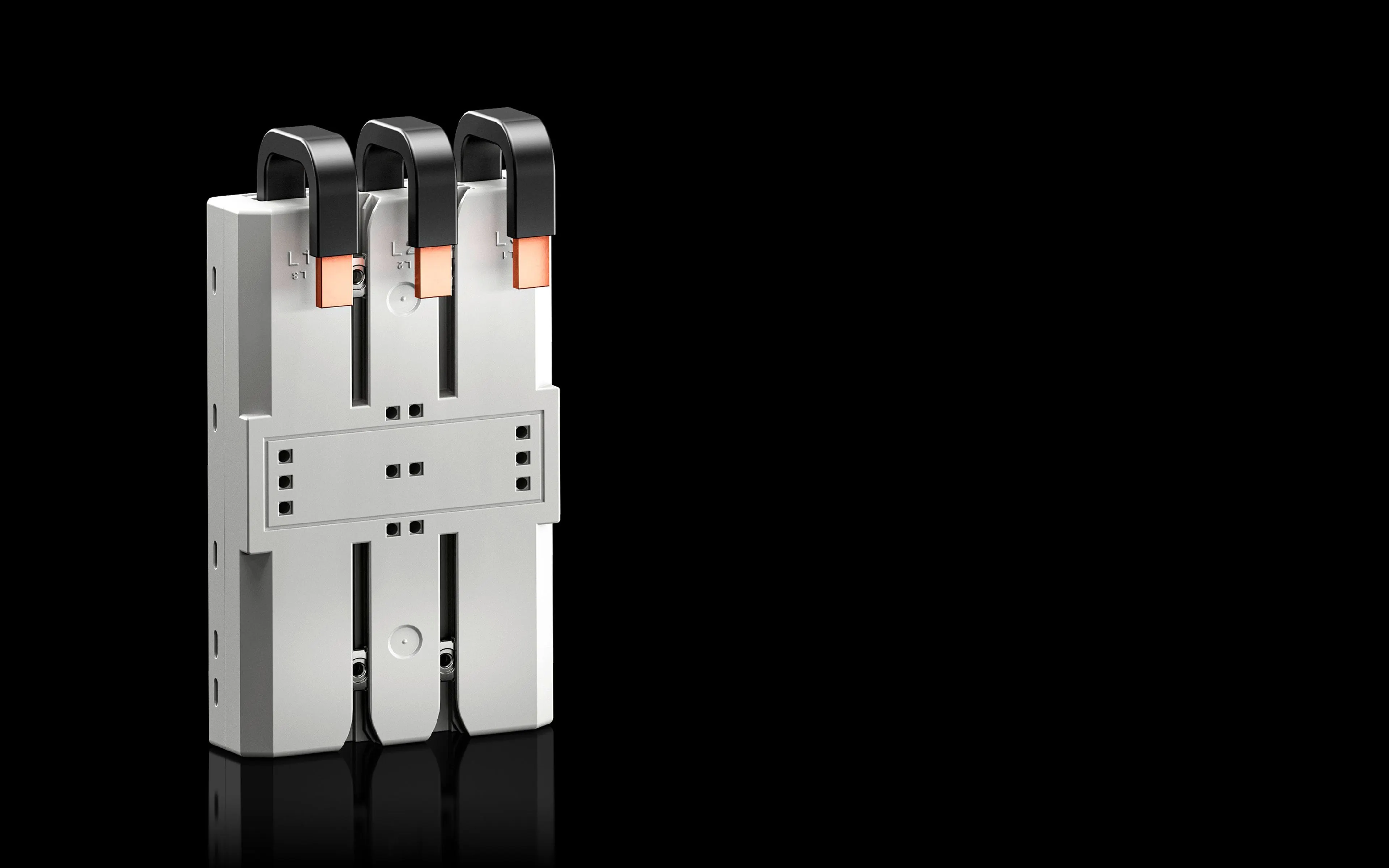

Rittal SV 9635.110 SV CB component adaptor - UL94-V0
Part Number: 9635110
Manufacturer
Rittal
Part number
9635110
Category
Alt Part Number
SV 9635.110
Quick Summary
SV 9635.110 SV CB component adaptor provides secure mechanical attachment for ABB XT2 circuit-breakers on board-level assemblies. Engineers often struggle with tight mounting tolerances and unreliable contact in compact panels, leading to intermittent faults and maintenance downtime. This adaptor combines a UL94-V0 fire-protected polyamide body with a robust 3-pole design, rated to 160 A at 690 V AC / 600 V DC, delivering safer, more reliable contacts in demanding environments. By aligning with ABB XT2 models and standard mounting distances, it simplifies procurement and installation, supporting faster assemblies, easier field servicing, and improved power-distribution reliability in industrial control panels.
Product Information
Extended Description
9635110 Rittal: SV CB component adaptor 160 A, 690 V (AC), 600 V (DC), 3-pole WH: 90 x 160 mm, mounting distance 30 mm
Article number
SV 9635.110
Function principle
For mechanical attachment and direct contacting of circuit-breakers on the board
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Note
Consider the mounting distance of the circuit-breaker when selecting the circuit-breaker component adaptor
Rated current max.
160 A
Rated operating voltage
600 V (DC), 3~
Number of poles
3-pole
Dimensions
Width: 90 mm | Height: 160 mm | Depth: 45 mm
Distance between fixing points
30 mm
Cable outlet
Top/bottom
To fit manufacturer (model)
ABB (XT2)
Packs of
1 pc(s).
Weight/pack
0.588 kg
Copper weight (kg per piece)
0.276
Customs tariff number
85369095
EAN
4028177951846
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV CB component adaptor 160 A, 690 V (AC), 600 V (DC), 3-pole WH: 90 x 160 mm, mounting distance 30 mm
Feature → Business Impact → Application: The SV 9635.110 is a 3-pole adaptor rated for 160 A and up to 690 V AC / 600 V DC, enabling direct contacting of circuit-breakers on the board with minimal wiring complexity. This reduces panel footprint and downtime during assembly while ensuring robust current-carrying capability for high-energy circuits in ABB XT2 configurations. Application: Ideal for control panels and power-distribution blocks where ABB XT2 circuit-breakers are deployed, delivering predictable performance in demanding applications. Feature → Business Impact → Application: Made from polyamide with UL94‑V0 fire protection, the component provides fire-safe operation in cabinet interiors, improving safety compliance and reducing risk in semi-enclosed spaces. Application: Suitable for harsh industrial environments requiring certified material performance and long-term durability. Feature → Business Impact → Application: Top/bottom cable outlets and a mounting distance of 30 mm streamline cable routing and fixings, cutting installation time and enabling cleaner, service-friendly panel layouts. Application: Use in compact enclosures where wiring ergonomics and accessibility are critical. Feature → Business Impact → Application: Dimensions 90 x 160 mm and 3-pole design support ABB XT2 integration with predictable mounting and alignment, minimizing misfit risk and simplifying spare-part inventory. Application: Efficient in retrofit or new-build scenarios to accelerate commissioning. Feature → Business Impact → Application: Weight 0.588 kg per pack and copper weight 0.276 kg indicate solid construction and reliable current-carrying capacity, reducing vibration-related wear and ensuring stable performance under vibration-prone industrial conditions. Application: Suitable for panels in automotive, process, and discrete manufacturing lines where stability matters. Feature → Business Impact → Application: Compatibility with ABB XT2 and documented product dimensions help procurement teams streamline sourcing, reduce mis-orders, and ensure BOM accuracy. Application: Ideal for automation projects requiring verified interoperability with standard ABB components.
