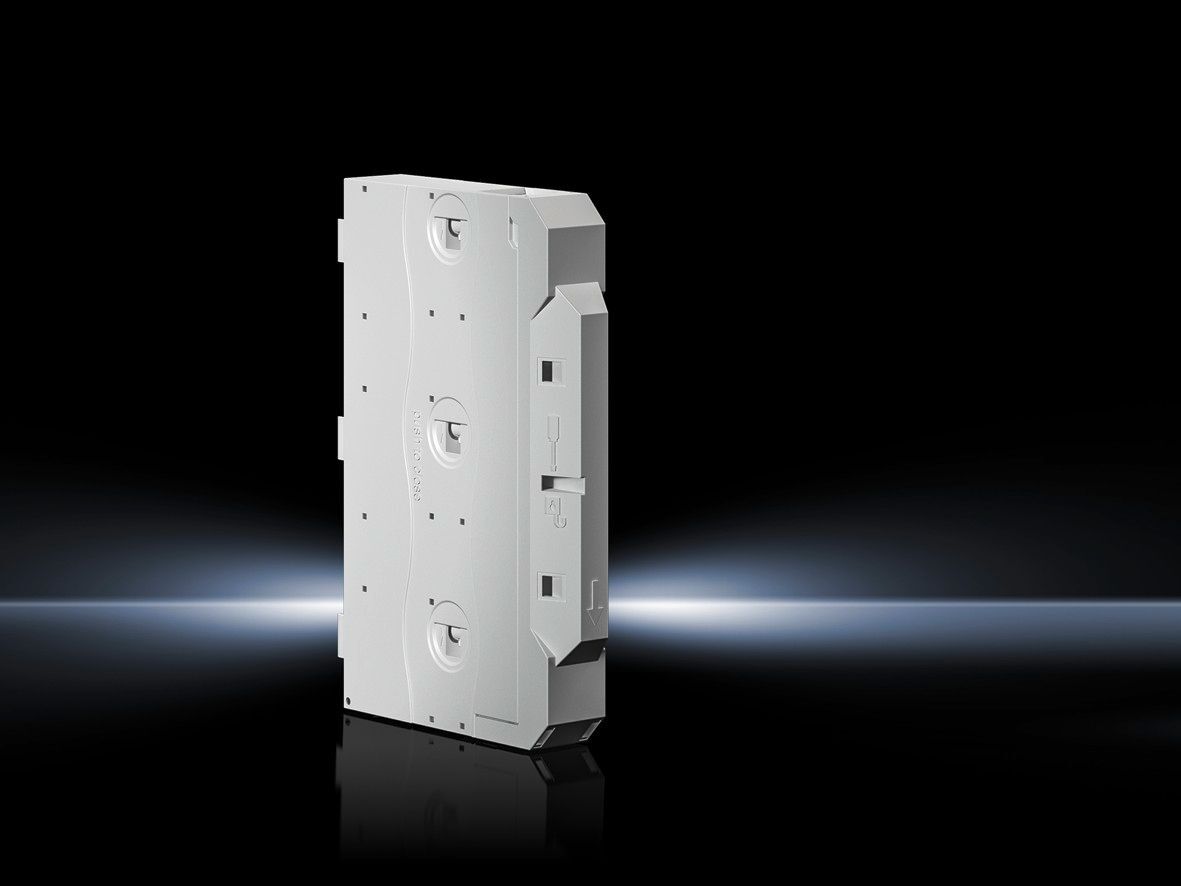

Rittal SV 9635.200 Busbar Connection Adaptor - 63 A max
Part Number: 9635200
Manufacturer
Rittal
Part number
9635200
Category
Alt Part Number
SV 9635.200
Quick Summary
Rittal SV 9635.200 busbar connection adaptor supplies power to industrial control boards in RiLine Compact configurations. In tight enclosures, wiring complexity and misconnection risk can slow projects; this adaptor simplifies terminations with a spring-terminal connection and top/bottom cable outlet. It features UL-rated electricals and a UL 94 fire-protection polyamide housing, supporting 690 V AC / 600 V DC in a robust 3-pole design. By aligning with RiLine Compact and standard enclosure practices, it delivers faster assembly, improved reliability, and safer maintenance for panel builders and system integrators.
Product Information
Extended Description
9635200 Rittal: Busbar connection adaptor 63 A, 690 V (AC), 600 V (DC), 3-pole, cable outlet top/bottom, connection of round conductors 1.5-16 mm² (RiLine Compact)
Article number
SV 9635.200
Function principle
To supply power to the board
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 7035
Note
The technical data may vary for UL applications
Note on Model No.
When using fine-wire round conductors 16 mm² with wire end ferrule, we recommend the following crimping tools: Rittal 4054.004, Weidmüller PZ 16, Phoenix Contact Crimpfox 25R
Rated current max.
63 A
Rated operating voltage
600 V (DC), 3~
Number of poles
3-pole
Cable outlet
Top/bottom
Electrical ratings UL
Rated current (UL): 48 A | Rated operating voltage (max.) UL: 600 V AC
Type of electrical connection
Spring terminal
Connection of round conductors, fine wire without wire end ferrule
1.5 ‐ 16 mm²
Connection of round conductors, fine wire with wire end ferrule
1.5 ‐ 16 mm²
Connection of round conductors, multi-wire
1.5 ‐ 16 mm²
Connection of round conductors, single-wire
1.5 ‐ 10 mm²
Connection for round conductor
AWG 6 - 16
Dimensions
Width: 22.5 mm | Height: 160 mm | Depth: 115.5 mm
Packs of
4 pc(s).
Weight/pack
0.788 kg
Copper weight (kg per piece)
0.023
Customs tariff number
85369010
EAN
4028177817395
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
Busbar connection adaptor 63 A, 690 V (AC), 600 V (DC), 3-pole, cable outlet top/bottom, connection of round conductors 1.5-16 mm² (RiLine Compact)
Feature: 3-pole design with a spring-terminal connection. Benefit: Delivers stable, low-impedance power delivery to distribution boards, reducing contact resistance and rework in high-current RiLine Compact installations. Application: Suitable for 63 A max loads in 690 V AC / 600 V DC systems inside compact control cabinets. Feature: Top/bottom cable outlets. Benefit: Simplifies routing in confined enclosures, minimizes bending stresses, and speeds wiring during panel builds. Application: Ideal for space-constrained automation cabinets and modular power bays. Feature: Connection of round conductors 1.5–16 mm² (fine wire with or without ferrule, multi-wire). Benefit: Broad conductor compatibility reduces the need for adapters and stock variety, lowering sourcing costs. Application: RiLine Compact feeder connections in diverse machine lineups. Feature: Polyamide housing with UL 94 fire protection. Benefit: Improves safety, flame retardancy, and compliance in electrical enclosures. Application: Cabinets requiring robust enclosure materials and regulatory alignment. Feature: 4 packs per box, dimensions and weight optimized for jobsite stocking. Benefit: Streamlines procurement and reduces on-site inventory and handling time. Application: Field reuse across multiple panels in a manufacturing line.
