Rittal SV 9635.300 Adaptor - Integral Fuse Holder
Part Number: 9635300
Manufacturer
Rittal
Part number
9635300
Category
Alt Part Number
SV 9635.300
Quick Summary
SV Component adaptor by Rittal enables mechanical attachment and direct contacting on switchgear boards for efficient assembly. In tight enclosures, space constraints and wiring complexity can slow projects and introduce wiring errors; this adaptor helps streamline installation and reduce panel depth. Key certifications include UL-rated up to 600 V AC and UL 94 fire-retardant polyamide material, with CE marking where applicable to support EU compliance. This solution delivers a compact, reliable interface compatible with 16 A, 690 V systems, helping you cut installation time while maintaining safety and traceability. It’s well suited for control panels, switchgear assemblies, and protective gear integration.
Product Information
Extended Description

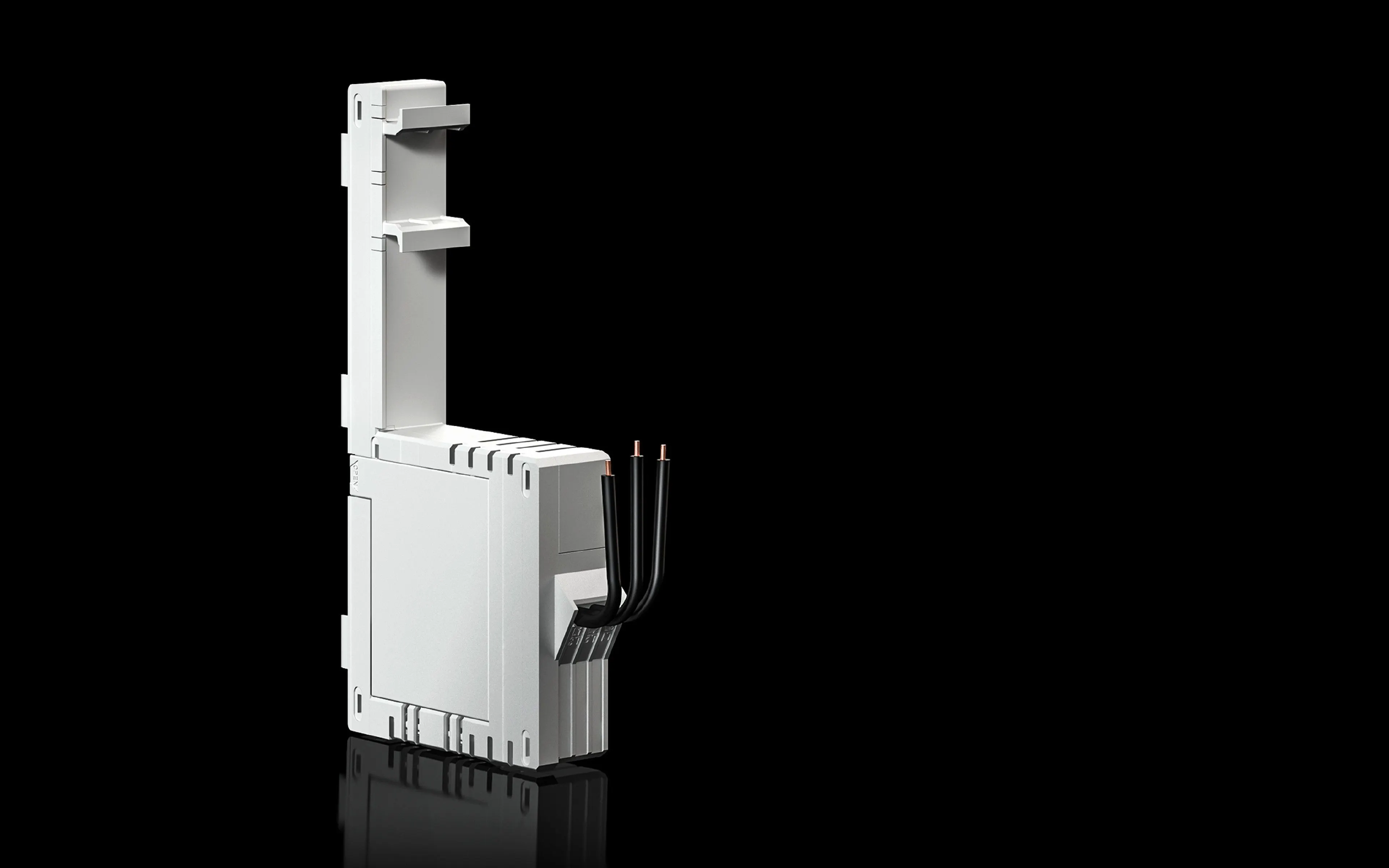

9635300 Rittal: SV Component adaptor, 16 A, 690 V (AC), 600 V (DC), 3-pole, for fuse 10x38 mm/Class CC, connection cable AWG 14 (L: 125 mm), WH: 22,5x160 mm
Article number
SV 9635.300
Design
With integral fuse holder
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to ULÂ 94
Colour
RAL 7035
Note
The technical data may vary for UL applications
Rated current max.
16 A
Rated operating voltage
690Â VÂ (AC)
Number of poles
3-pole
For fuse type (class)
CC
Electrical ratings UL
Rated operating voltage (max.) UL:Â 600 V AC
Connection cables (AWG)
AWG 14
Length of connection cable
125 mm
Support rails Qty/height
1Â /Â 10Â mm
Support rail type
static
Dimensions
Width:Â 22.5 mm | Height:Â 160 mm | Depth:Â 80 mm
Packs of
1 pc(s).
Weight/pack
0.134 kg
Copper weight (kg per piece)
0.02
Customs tariff number
85369095
EAN
4028177817388
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Component adaptor, 16 A, 690 V (AC), 600 V (DC), 3-pole, for fuse 10x38 mm/Class CC, connection cable AWG 14 (L: 125 mm), WH: 22,5x160 mm
Feature: Integral fuse holder design built into the adaptor simplifies fuse integration and reduces the number of separate parts required in assemblies. Benefit: This lowers bill-of-materials, minimizes parts management, and speeds wiring in control panels. Application: Ideal for 10x38 mm/Class CC fuses in 3-pole configurations where fast, reliable fuse replacement is needed during maintenance. Feature → Business Impact → Application: A single unit provides both mounting and contact points, reducing assembly time for compact switchgear while maintaining compliant electrical connections in industrial cabinets. Feature: Rated current max. 16 A and rated operating voltage up to 690 V AC support demanding automation circuits. Benefit: Supports high-power control circuits without oversizing components, enabling tighter equipment layouts in machine builds. Application: Suitable for motors, starters, and protection circuits in production lines. Feature: Polyamide body with UL 94 fire protection and color coded in RAL 7035 for clear identification. Benefit: Improves safety, material compatibility, and traceability across assemblies. Application: Used in UL and EU-compliant control panels where visible, durable plastic housings are required. Feature: Connection cables AWG 14, length 125 mm, with static support rails (1 per 10 mm height). Benefit: Simplifies lead routing and panel mounting, reducing wiring length and potential voltage drops. Application: Fits standard cable harnesses and DIN rail-mounted configurations in medium-size enclosures. Feature: Package includes 1 piece per pack and weighs 0.134 kg, with copper weight 0.02 kg per piece. Benefit: Lightweight, easy to handle during installation and replacement, with predictable shipping and storage costs. Application: Streamlines inventory planning for spares in serviceable switchgear setups. Note: While UL data is provided, always verify UL applications for your specific configuration and jurisdiction; CE applicability should be confirmed for your market.
Get a Quick Quote for a Rittal 9635300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635300?
Enquire Now
FAQs
The adaptor is designed for DIN-rail mounting with static support rails. Attach the unit to the board, align the 3-pole contacts, and connect the AWG 14 cable (125 mm) to the fuse holder and corresponding circuit. Ensure the fuse 10x38 mm/Class CC is properly seated for reliable protection and verify the 690 V AC rating aligns with your panel voltage.
Key specs include a rated current of 16 A, rated operating voltage up to 690 V AC, and 3-pole configuration for Class CC fuses. The assembly supports AWG 14 connection cables and a 125 mm lead length, with UL-listed compatibility and fire protection per UL 94 for the polyamide housing.
The component uses UL-rated performance and UL 94 fire-retardant material, which supports many EU applications when CE marking is applied. Always confirm current regulatory compliance for your specific market and ensure the overall panel assembly meets regional requirements and electrical codes.
Best suited for compact switchgear assemblies, control panels, and protective gear integrations where a reliable mechanical contact is needed with a built-in fuse holder. It supports 16 A, 690 V AC circuits and simplifies wiring with a standard AWG 14 lead, improving installation speed in production lines.
By consolidating mounting and fuse connectivity into a single adaptor, you reduce parts, wiring time, and potential mis-wiring risks. The 0.134 kg per pack weight and 1 piece per pack packaging streamline stocking and FIFO maintenance, delivering faster commissioning and easier spares management for switchgear assets.
