Rittal SV 9635.310 Component Adaptor - UL 94 Fire Rated
Part Number: 9635310
Manufacturer
Rittal
Part number
9635310
Category
Alt Part Number
SV 9635.310
Quick Summary
Rittal SV 9635.310 component adaptor enables switchgear assembly and direct contacting of electrical equipment in control panels. Engineers often struggle with reliable terminations and compact wiring within dense enclosures, which can lead to reliability and safety concerns. This adaptor leverages UL 94 fire-safe polyamide and a 3-pole design to support up to 16 A and up to 600 V DC / 690 V AC, improving safety margins and regulatory alignment. Its rugged construction complements static rails and AWG 14 cable runs, helping you reduce wiring complexity while maintaining access for testing and maintenance. In practice, this translates to faster assembly, predictable performance, and a more compact panel footprint for industrial automation projects.
Product Information
Extended Description

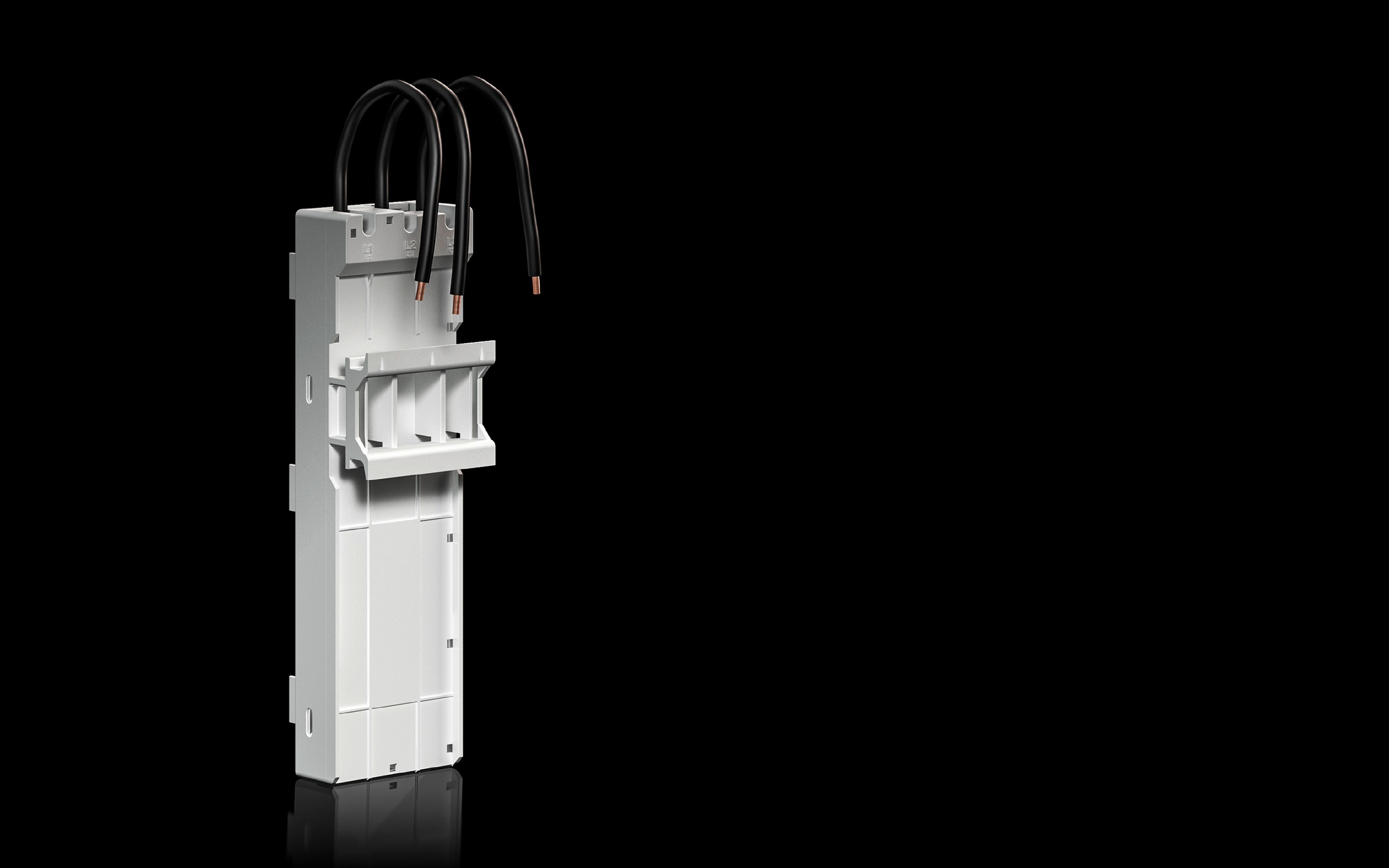

9635310 Rittal: SV Component adaptor (Basic), 16 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 14 (L: 120 mm), WH: 45x160 mm
Article number
SV 9635.310
Design
Basic
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to ULÂ 94
Colour
RAL 7035
Note
The technical data may vary for UL applications
Rated current max.
16 A
Rated operating voltage
600Â VÂ (DC), 3~
Number of poles
3-pole
Electrical ratings UL
Rated operating voltage (max.) UL:Â 600 V AC
Connection cables (AWG)
AWG 14
Length of connection cable
120 mm
Support rails Qty/height
1Â /Â 10Â mm
Support rail type
static
Dimensions
Width:Â 45 mm | Height:Â 160 mm | Depth:Â 34.5 mm
Packs of
4 pc(s).
Weight/pack
0.428 kg
Copper weight (kg per piece)
0.024
Customs tariff number
85369095
EAN
4028177817371
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Component adaptor (Basic), 16 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 14 (L: 120 mm), WH: 45x160 mm
Feature: 3-pole design with 16 A current rating. Business Impact: Simplifies multi-pole connections in control panels, reducing wiring errors and rework. Application: Ideal for compact switchgear assemblies where reliable mechanical attachment and direct contacting are required. Feature: Connection cables AWG 14, 120 mm length. Business Impact: Standardizes lead length and conductor size, lowering assembly time and stocking diversity. Application: Fits common field-wire kits and panel layouts without custom cabling. Feature: Material polyamide with UL 94 fire protection. Business Impact: Increases fire safety and material compatibility in enclosure environments, supporting risk mitigation and compliance. Application: Suitable for internal components exposed to heat and electrical stress. Feature: Dimensions 45x160x34.5 mm and static rail compatibility. Business Impact: Delivers a compact footprint with straightforward mounting on static rails, enabling denser panel design. Application: Works with standard 10 mm rail spacing for modular assemblies. Feature: Weight and copper weight data; packs of four. Business Impact: Aids cost forecasting and logistics by providing pack sizing and mass estimates. Application: Enables efficient stocking and shipping for bulk orders. Feature: ECLASS EC001531 and ETIM EC data; UL-rated electrical characteristics. Business Impact: Improves integration with ERP/product data workflows and ensures regulatory alignment. Application: Facilitates data-driven procurement for panel builders and OEMs.
