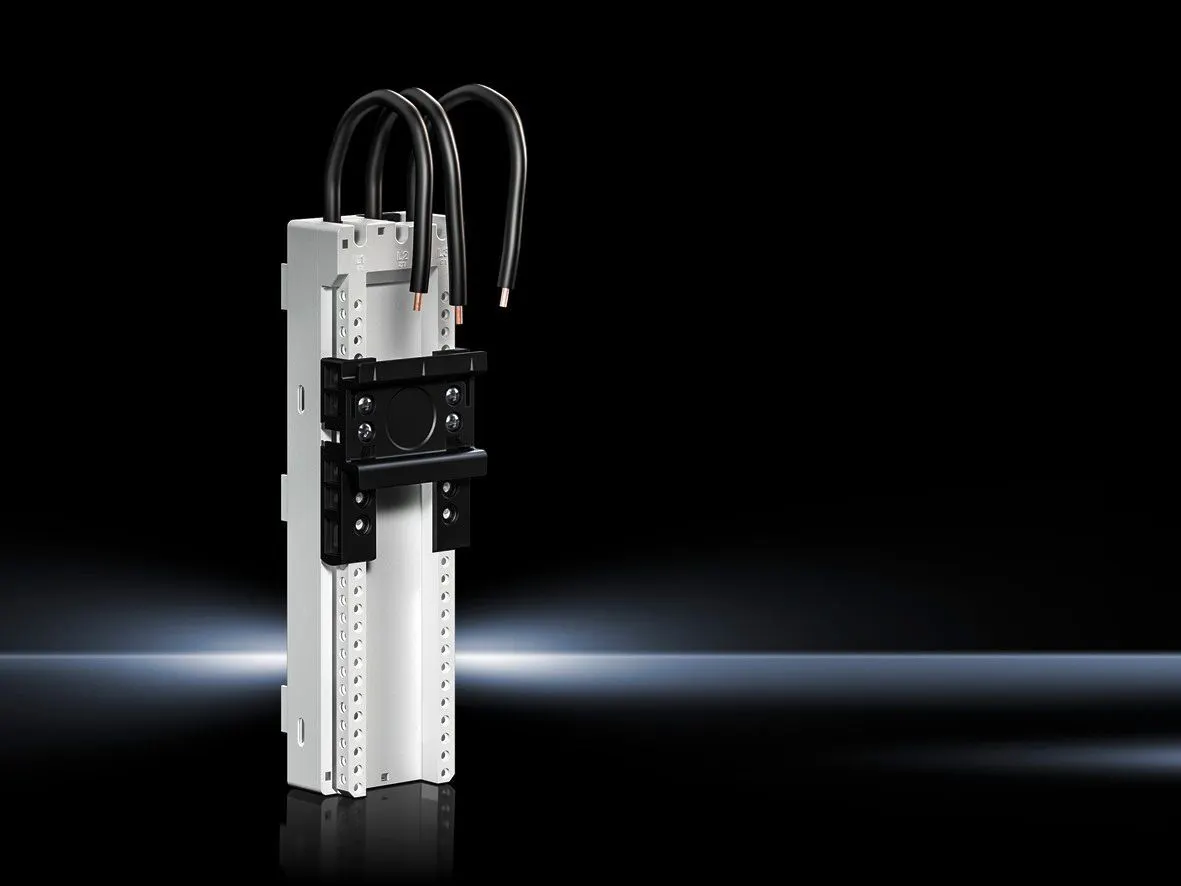

Rittal SV 9635.340 Component Adaptor - 25 A, 690 V

3-pole SV component adaptor handles 25 A at up to 690 V AC (600 V DC) through a 100 mm AWG12 connection cable. This design enables mechanical attachment and direct contacting of electrical equipment on switchgear boards. In high-density control panels, it reduces assembly steps and minimizes contact risk, delivering faster, more reliable installations. Made from polyamide with UL 94 fire protection, the adaptor helps meet safety and insulation standards in cabinet assemblies. The material's flame retardant properties support compliance during internal testing and field operation, while the design maintains mechanical integrity under vibration. Adjustable support rails and 1 per 10 mm height grid enable flexible mounting within standard 10 mm DIN rails. This flexibility reduces pre-assembly planning time and simplifies future upgrades or revisions. The combination of 3-pole arrangement and standardized dimensions helps ensure consistent spacing and contact alignment across modules in control cabinets. Compact footprint (45x160 mm, depth 34.5 mm) frees enclosure space for additional components and cabling. The integrated 100 mm wiring length minimizes field trimming and supports neat routing of AWG12 conductors. Packaging in 4-piece packs simplifies procurement and lowers shipping costs, while copper weight per piece remains modest at 0.03 kg for efficient handling. From a procurement perspective, the SV 9635.340 aligns with UL and ETIM/ECLASS standards (EC001531, 27370304) and includes the EAN 4028177817340 for easy SKU matching. The design supports quick installation, reduces risk of miswiring, and offers predictable performance for panel builders and automation integrators.
