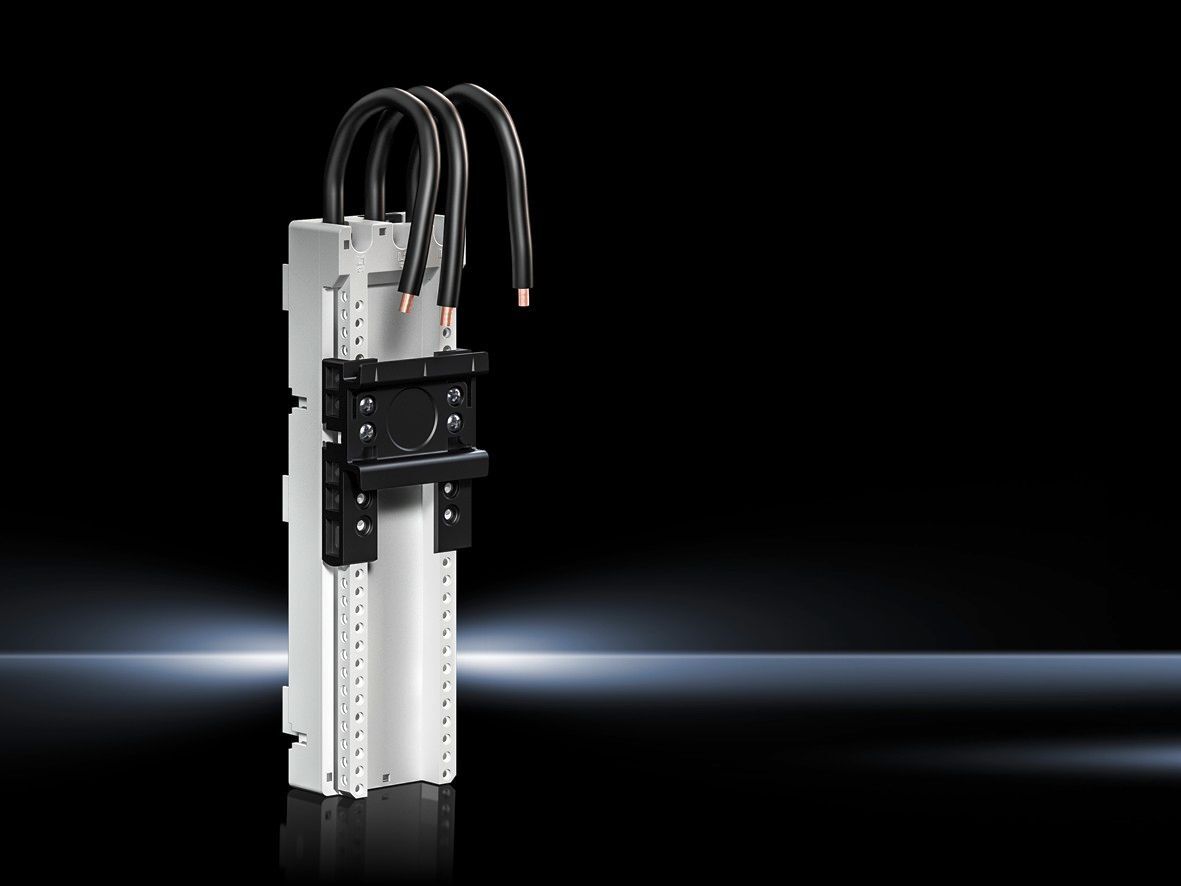

Rittal SV 9635.350 SV Component Adaptor - 3-pole
Part Number: 9635350
Manufacturer
Rittal
Part number
9635350
Category
Alt Part Number
SV 9635.350
Quick Summary
Rittal SV 9635.350 is a component adaptor for mounting and direct contacting electrical equipment on compact switchgear. In crowded control panels, installers often struggle with secure attachment, reliable insulation, and tidy cable routes. It features UL 94 fire-rated polyamide and supports up to 32 A at up to 690 V AC or 600 V DC, with adjustable rails to suit multiple frame heights. For panel builders and machine manufacturers, this translates to faster assembly, improved safety margins, and consistent contact quality, reducing rework. The design also aligns with common industry standards and is compatible with standard AWG 10 wiring and 45 mm width frame spaces, supporting scalable distribution and simplified procurement.
Product Information
Extended Description
9635350 Rittal: SV Component adaptor (Comfort), 32 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 10 (L: 100 mm), WH: 45x160 mm
Article number
SV 9635.350
Design
Comfort
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to ULÂ 94
Colour
RAL 7035
Note
The technical data may vary for UL applications
Rated current max.
32 A
Rated operating voltage
600Â VÂ (DC), 3~
Number of poles
3-pole
Electrical ratings UL
Rated operating voltage (max.) UL:Â 600 V AC
Connection cables (AWG)
AWG 10
Length of connection cable
160 mm
Support rails Qty/height
1Â /Â 10Â mm
Support rail type
adjustable
Dimensions
Width:Â 45 mm | Height:Â 160 mm | Depth:Â 34.5 mm
Packs of
4 pc(s).
Weight/pack
0.58 kg
Copper weight (kg per piece)
0.055
Customs tariff number
85369095
EAN
4028177817333
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Component adaptor (Comfort), 32 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 10 (L: 100 mm), WH: 45x160 mm
The SV 9635.350 uses a fire-rated polyamide housing that meets UL 94 requirements, delivering inherent safety during enclosure mounting and direct equipment contact, which lowers risk in energy-intensive control panels. This translates to a measurable business impact: reduced fault channels, faster commissioning, and easier regulatory compliance for control cabinets. Application-wise, it suits 3-pole assemblies in switchgear boards across industrial automation and power distribution projects. The 32 A maximum rating and 690 V AC/600 V DC operation support a broad range of motor drives and logic modules, enabling single-part solutions for varied panel duties. The 160 mm length of the AWG 10 connection cables simplifies harnessing and minimizes extra cabling, while the adjustable 1/10 mm rails enable precise alignment without frame modifications. The compact 45Ă—160 mm footprint fits within standard 45 mm width frames, delivering space efficiency in dense enclosures. Color-coded in RAL 7035 for clear identification, it helps with fast fault isolation and maintenance.
Get a Quick Quote for a Rittal 9635350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635350?
Enquire Now
FAQs
To install, align the adaptor with the frame opening, mount on adjustable 10 mm rails, and secure the 3-pole unit. Use AWG 10 connection cables up to 160 mm and ensure the assembly sits within the 45x160 mm footprint. Verify UL 94 material integrity and re-check contact alignment after rail tightening.
SV 9635.350 provides a 32 A maximum current with a rated operating voltage of 690 V AC and 600 V DC in a 3-pole configuration. It uses AWG 10 cables with a 160 mm length. Ensure compatibility with your switchgear frame and verify UL operating voltage ratings for your region.
Yes. The 3-pole design supports typical 3-phase control panels and 3‑phase distribution in automation and process control environments. It is especially suitable where direct contacting of electrical equipment aboard the board is required and where space constraints favor a 45 mm width and 160 mm tall module.
The adaptor uses UL 94 fire-rated polyamide and carries notes on UL applications. It is listed with industry classifications such as ETIM EC001531 and ECLASS 27370304, with the EAN 4028177817333 for traceability. Always verify local CE/UL requirements for your installation site.
The robust polyamide housing and reliable 3-pole contact reduce maintenance needs by maintaining stable electrical contact over time. The adjustable rails simplify installation, shorten commissioning, and reduce spare-part variety with a single 4‑pack option, lowering procurement complexity and total cost of ownership in panel builds.
