Rittal 9635360 SV Component Adaptor - UL 94 Fire
Part Number: 9635360
Manufacturer
Rittal
Part number
9635360
Category
Alt Part Number
SV 9635.360
Quick Summary
SV Component adaptor by Rittal provides secure mechanical attachment and direct contacting for switchgear assemblies. Engineers face tight spaces and complex wiring when wiring 690 V AC and 600 V DC systems, making reliable mounting and clean connections a challenge. The design emphasizes UL 94 fire protection in the material and supports UL electrical ratings up to 600 V, helping you meet safety and performance requirements. It also leverages ETIM EC001531 and ECLASS 27370304 classifications to streamline data-driven sourcing. In practice, you gain faster installation, reduced risk of loose connections, and predictable performance across Rittal-based enclosures. This adaptor integrates smoothly with adjustable rails and standard cabinet footprints, delivering value in control panels and switchgear deployments.
Product Information
Extended Description

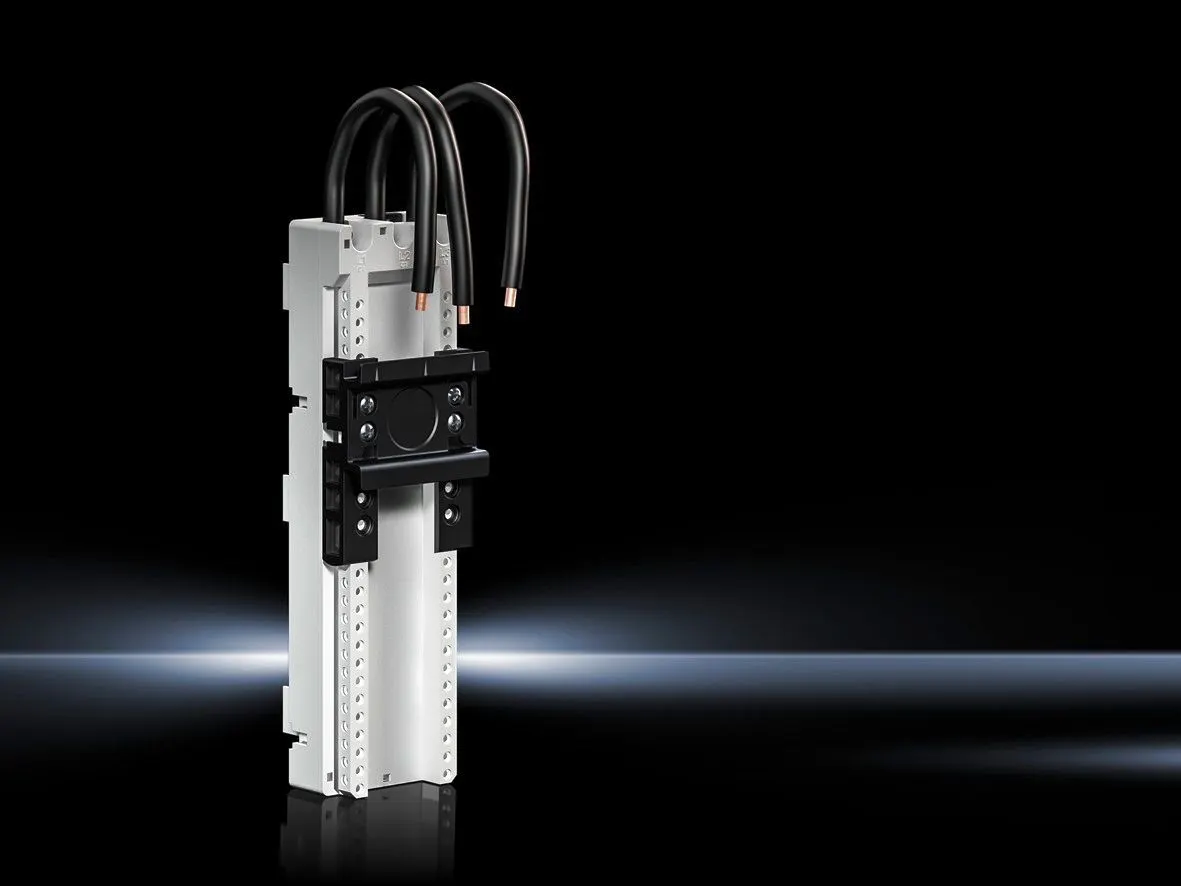

9635360 Rittal: SV Component adaptor (Comfort), 45 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 8 (L: 100 mm), WH: 45x160 mm
Article number
SV 9635.360
Design
Comfort
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to ULÂ 94
Colour
RAL 7035
Note
The technical data may vary for UL applications
Rated current max.
45 A
Rated operating voltage
600Â VÂ (DC), 3~
Number of poles
3-pole
Electrical ratings UL
Rated operating voltage (max.) UL:Â 600 V AC
Connection cables (AWG)
AWG 8
Length of connection cable
100 mm
Support rails Qty/height
1Â /Â 10Â mm
Support rail type
adjustable
Dimensions
Width:Â 45 mm | Height:Â 160 mm | Depth:Â 34.5 mm
Packs of
4 pc(s).
Weight/pack
0.684 kg
Copper weight (kg per piece)
0.062
Customs tariff number
85369095
EAN
4028177817326
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Component adaptor (Comfort), 45 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 8 (L: 100 mm), WH: 45x160 mm
Feature: 3-pole design with 45 A rated current and 600 V maximum. Business Impact: Enables safe, reliable operation of three‑phase circuits in compact panels, reducing overload risk and enabling denser layouts. Application: ideal for assembly of switchgear and protective gear on standard 45 mm width and 160 mm height slots within Rittal enclosures. Feature: Connection cables consisting of AWG 8, 100 mm length. Business Impact: Simplifies wiring, lowers the risk of mis-wiring, and minimizes voltage drop across interconnections. Application: direct contacting of electrical equipment on the board in control cabinets. Feature: Adjustable support rails (one per 10 mm height). Business Impact: Flexible mounting across DIN rails and internal rack heights, simplifying revisions and upgrades. Application: mounting within adjustable rail configurations in modular switchgear setups. Feature: Polyamide housing with UL 94 fire protection. Business Impact: Improved safety and fire performance, supporting regulatory compliance in critical enclosures. Application: safe integration inside control panels and equipment racks. Feature: Compact footprint with defined dimensions (45 x 160 x 34.5 mm) and weight (0.684 kg per piece); Packs of 4 facilitate procurement. Business Impact: Predictable space planning and easier stocking for panel builds. Application: panel assembly kits for rapid deployment in switchgear systems.
Get a Quick Quote for a Rittal 9635360
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635360?
Enquire Now
FAQs
The SV 9635.360 is designed as a 3-pole adaptor with a 45 A rated current and 600 V (DC) / 3~ operating voltage. It uses AWG 8 connection cables of 100 mm length and fits 45 mm wide by 160 mm high spaces, with adjustable 10 mm height rails. It is compatible with standard Rittal enclosures and DIN rail configurations, enabling straightforward integration into existing switchgear and control-panel builds.
This adaptor supports up to 45 A continuous current and a maximum operating voltage of 600 V (DC and AC 3-phase). It employs AWG 8 conductors and provides a 100 mm connection lead, suitable for direct contacting of electrical equipment on the board in multi-pole switchgear applications.
Yes, the design uses UL94 fire-rated polyamide material and is specified for UL electrical ratings up to 600 V. When selecting for UL-compliant installations, consider the UL-related data note that technical data may vary for UL applications, and verify the final configuration against your end-use UL requirements.
By reducing wiring complexity with a pre-terminated 100 mm AWG 8 lead and enabling quick mounting on adjustable rails, maintenance and commissioning time decrease significantly. The robust polyamide housing and UL fire rating reduce risk of failures due to wiring faults or overheating, contributing to lower lifecycle costs in high-availability switchgear systems.
The adaptor’s 3-pole, 45 A, 600 V capabilities align with typical switchgear board requirements, while adjustable rails and DIN-rail compatibility fit common enclosure standards. Its standardized dimensions and packing (4 pieces per pack) simplify procurement, stocking, and replacement within modular protection schemes and control cabinets.
