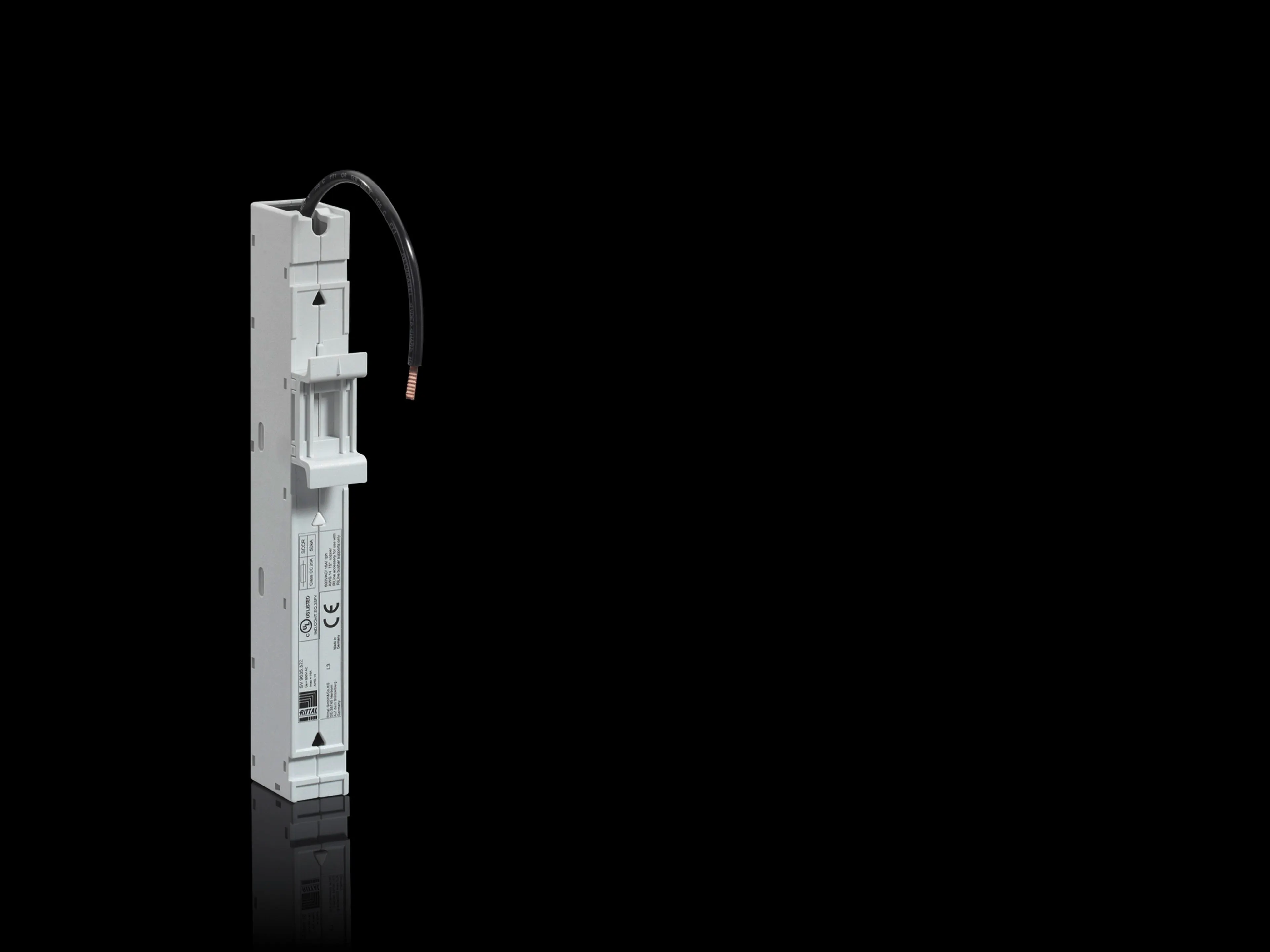

Rittal SV 9635.372 Adaptor - 16 A, 690 V, L2 UL 94
Part Number: 9635372
Manufacturer
Rittal
Part number
9635372
Category
Alt Part Number
SV 9635.372
Quick Summary
The Rittal SV 9635.372 Adaptor offers reliable single-pole mounting for switchgear assemblies, enabling mechanical attachment and direct contacting of electrical equipment on the board. Engineers often face crowded panels and routing challenges that slow assembly and increase fault risk. This adaptor uses UL 94 fire-protected polyamide and supports up to 690 V AC at 16 A, helping maintain safety and performance in compact enclosures. With a 100 mm connection cable and 18 × 160 mm footprint, it streamlines installation and wiring in power-management systems. Standardized dimensions and static-rail compatibility reduce inventory complexity, delivering faster, compliant panel builds for industrial automation.
Product Information
Extended Description
9635372 Rittal: SV component adaptor 16 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 14, WH: 18 x 160 mm
Article number
SV 9635.372
Design
L2
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 7035
Note
Different adaptor versions are required depending on the preferred phase connection
Rated current max.
16 A
Rated operating voltage
690 V (AC), 1~
Number of poles
Single-pole
Connection cables (AWG)
AWG 14
Length of connection cable
100 mm
Support rails Qty/height
1 / 10 mm
Support rail type
static
Dimensions
Width: 18 mm | Height: 160 mm | Depth: 35 mm
Packs of
6 pc(s).
Weight/pack
0.372 kg
Copper weight (kg per piece)
0.008
Customs tariff number
85369095
EAN
4028177934580
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV component adaptor 16 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 14, WH: 18 x 160 mm
The adaptor provides single-pole mounting for direct contacting of electrical equipment on the board, enabling straightforward integration into switchgear assemblies and faster commissioning. Business impact: reduced assembly time, lower labour costs, and improved reliability in control panels. Application: ideal for compact power distribution in industrial automation environments and space-constrained enclosures. The 16 A, 690 V AC rating ensures compatibility with common distribution topologies while maintaining a safety margin for peak loads, helping you meet design specs without overbuilding. Material and safety: polyamide housing with UL 94 fire protection reduces flammability risk and supports safer panel construction, a crucial factor in audit-ready compliance and safe operation. Installation advantages include a 100 mm connection cable and a 18 × 160 mm WH footprint, which simplify routing in tight cabinets and support rail alignment. This adaptor is compatible with static 1/10 mm rails, enabling quick mounting and straightforward maintenance. Stocking and logistics are optimized by packs of 6 pieces and modest copper weight per piece, aiding low-cost procurement and predictable supply planning. Long-term value comes from ETIM 9 EC001531 and ECLASS 8.0 27370304 classification alignment, streamlining digital catalogs and procurement workflows.
Get a Quick Quote for a Rittal 9635372
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635372?
Enquire Now
FAQs
Begin by locating a suitable 10 mm rail position and align the adaptor in the intended single-pole orientation. Mount on a static rail, ensuring correct rail sizing and spacing per enclosure guidelines. Connect the AWG 14 cable to the designated terminal area, using the 100 mm lead length to minimize bend radius and maintain clean routing on the board.
The SV 9635.372 adaptor is rated for 16 A and 690 V AC, single-pole operation. This makes it suitable for typical switchgear and distribution tasks in 690 V AC environments while preserving safe mechanical attachment and direct contact with mounted equipment.
Designed for compact power-management enclosures, it fits panels that utilize static 10 mm rails and a per-board 18 × 160 mm footprint. It supports modular assembly in control panels and standard switchgear configurations where single-pole connections and 16 A, 690 V AC performance are required.
The product uses UL 94 fire-protected polyamide material, addressing flame retardancy requirements. It is classified in ETIM 9 as EC001531 and in ECLASS 8.0 as 27370304, aiding standardized procurement and data integration. CE marking and IP ratings should be verified with the supplier for your specific region and application.
The adaptor ships in packs of six and weighs 0.372 kg per pack, with copper weight of 0.008 kg per piece, supporting economical stocking and predictable lead times. Its simple 100 mm lead and standard rail compatibility reduce field rewiring and maintenance time, contributing to lower total cost of ownership in established switchgear installations.
