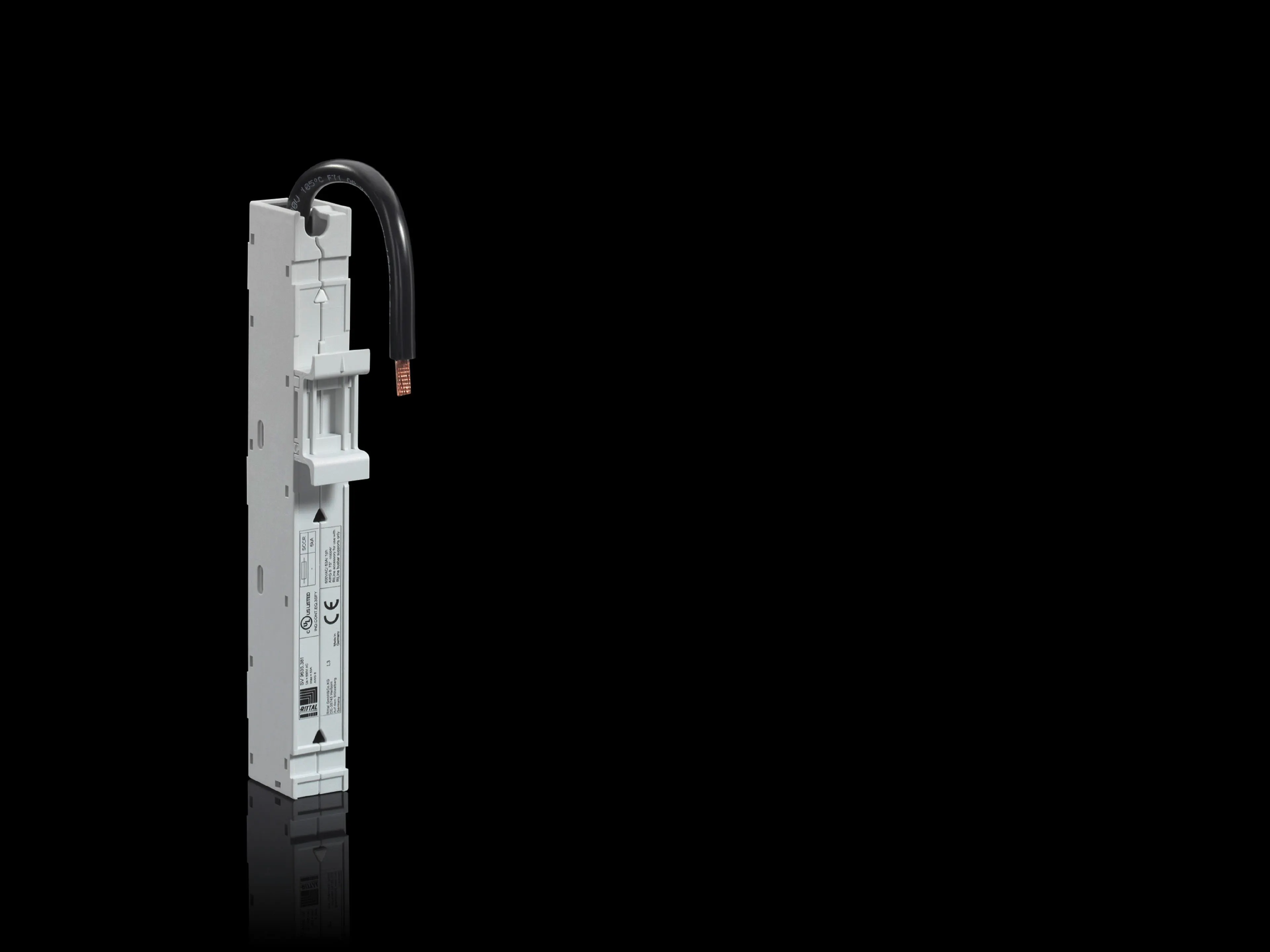

Rittal SV 9635.381 Adaptor - 63 A, 690 V
Part Number: 9635381
Manufacturer
Rittal
Part number
9635381
Category
Alt Part Number
SV 9635.381
Quick Summary
SV 9635.381 adaptor is a compact mechanical attachment and direct-contact solution for mounting electrical equipment on switchgear boards. Engineers often face challenges with cable routing and reliable contacts in high-current assemblies, leading to downtime and inspection overhead. The design leverages UL 94 fire-rated polyamide and aligns with ETIM 9 EC001531 and ECLASS 8.0 27370304 for procurement clarity. Its 63 A rating at 690 V AC and its 18 x 160 mm footprint support scalable, safe installations across Rittal enclosures, while the 100 mm connection cable enables clean, repeatable wiring. In practice, this adaptor reduces installation time and ensures consistent contacts, delivering tangible value for panel builders and maintenance teams.
Product Information
Extended Description
9635381 Rittal: SV component adaptor 63 A, 690 V (AC), 1-pole (variant L1), connection cable AWG 8, WH: 18 x 160 mm
Article number
SV 9635.381
Design
L1
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to UL 94
Colour
RAL 7035
Note
Different adaptor versions are required depending on the preferred phase connection
Rated current max.
63 A
Rated operating voltage
690 V (AC), 1~
Number of poles
Single-pole
Connection cables (AWG)
AWG 8
Length of connection cable
100 mm
Support rails Qty/height
1 / 10 mm
Support rail type
static
Dimensions
Width: 18 mm | Height: 160 mm | Depth: 35 mm
Packs of
6 pc(s).
Weight/pack
0.36 kg
Copper weight (kg per piece)
0.015
Customs tariff number
85369095
EAN
4028177934535
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV component adaptor 63 A, 690 V (AC), 1-pole (variant L1), connection cable AWG 8, WH: 18 x 160 mm
Feature: Single-pole L1 design provides a straightforward mechanical attachment and direct contacting of electrical equipment on the board. Benefit: Reduces assembly steps and contact resistance, speeding up panel builds and improving reliability in dense control cabinets. Application: Ideal for switchgear assemblies in motor control centers and power distribution units. Feature: Rated current max. 63 A and rated operating voltage 690 V AC (1~) with an AWG 8 connection cable. Benefit: Supports high-current connections with a compact footprint, enabling safe, compliant layouts and reducing the need for additional jumpers. Application: Suitable for feeder connections on industrial power shelves and protective gear mounting on enclosure boards. Feature: 100 mm length of connection cable and dimensions 18 x 160 x 35 mm. Benefit: Facilitates tidy cable routing and minimizes space impact on crowded panels, improving serviceability and heat management. Application: Best for compact enclosures where space is at a premium. Feature: Material is Polyamide with UL 94 fire protection. Benefit: Delivers fire safety compliance and durable insulation in demanding environments, lowering risk during routine maintenance. Application: Critical for safety-critical control panels and enclosure assemblies. Feature: Support rails qty/height 1 / 10 mm and static rail type with width 18 mm. Benefit: Ensures compatibility with standard static rails, simplifying installation and reducing part count. Application: Works across most Rittal rail-based board layouts. Feature: Packs of 6 with weight per pack 0.36 kg and copper weight per piece 0.015 kg. Benefit: Improves stock planning and cost predictability while keeping each adaptor lightweight for handling and installation. Application: Batch purchasing for production lines and service teams. Note: Different adaptor versions are required depending on the preferred phase connection. Benefit: Allows engineers to select the correct L1 variant for their specific phase wiring scheme, minimizing rework and downtime.
