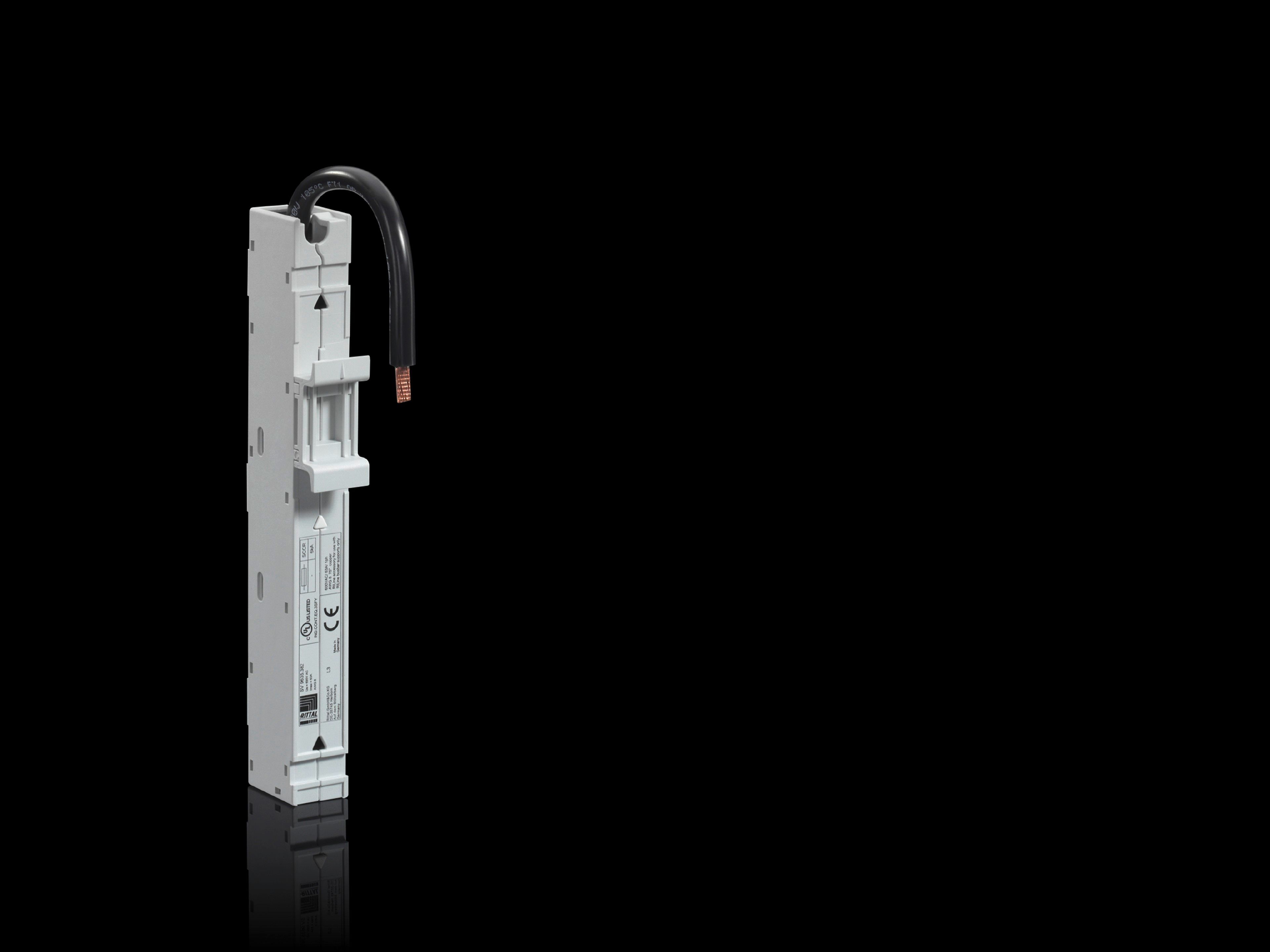

Rittal SV 9635.382 SV Adaptor - Fire Protection UL 94
Part Number: 9635382
Manufacturer
Rittal
Part number
9635382
Category
Alt Part Number
SV 9635.382
Quick Summary
The SV 9635.382 adaptor by Rittal enables compact, safe assembly of switchgear and protective gear in control panels. In tight panel spaces, wiring and mounting often collide with rails and clearances, increasing risk of misrouting and errors; this adaptor minimizes those issues and streamlines installation. It carries UL 94 fire protection for the polyamide housing and aligns with ETIM EC001531 and ECLASS 27370304 classifications to improve procurement and interoperability. With a 63 A rating at 690 V and a 100 mm AWG 8 connection cable, it delivers robust power transfer while enabling efficient, repeatable assembly. This translates to faster builds, lower installation labor, and improved long-term reliability for power distribution enclosures.
Product Information
Extended Description
9635382 Rittal: SV component adaptor 63 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 8, WH: 18 x 160 mm
Article number
SV 9635.382
Design
L2
Function principle
For mechanical attachment and direct contacting of electrical equipment on the board
Material
Polyamide | Fire protection corresponding to ULÂ 94
Colour
RAL 7035
Note
Different adaptor versions are required depending on the preferred phase connection
Rated current max.
63 A
Rated operating voltage
690Â VÂ (AC), 1~
Number of poles
Single-pole
Connection cables (AWG)
AWG 8
Length of connection cable
100 mm
Support rails Qty/height
1Â /Â 10Â mm
Support rail type
static
Dimensions
Width:Â 18 mm | Height:Â 160 mm | Depth:Â 35 mm
Packs of
6 pc(s).
Weight/pack
0.396 kg
Copper weight (kg per piece)
0.021
Customs tariff number
85369095
EAN
4028177934559
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV component adaptor 63 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 8, WH: 18 x 160 mm
Feature: Compact dimensions (Width 18 mm, Height 160 mm, Depth 35 mm) with static 10 mm rails—Business Impact: Saves panel space and simplifies retrofits in compact switchgear assemblies; Application: used in control panels and power distribution blocks. Feature: 63 A max current and 690 V AC rating, single-pole L2 design—Business Impact: Supports high-power equipment while maintaining safe, direct contact; Application: assembly of protective gear and switchgear on board. Feature: Connection cable AWG 8, 100 mm length with copper weight 0.021 kg per piece—Business Impact: Proven conductor size reduces resistance and voltage drop; Application: reliable field wiring to gear modules. Feature: Fire-safe polyamide with UL 94 rating—Business Impact: Enhances safety compliance and reduces risk in enclosures; Application: durable housing in industrial panels. Feature: Pack content 6 pieces per pack, weight/pack 0.396 kg—Business Impact: Streamlined procurement and predictable logistics for assembly lines; Application: bulk stocking for panel shops. Feature: Clear notes on phase-connection variants—Business Impact: Prevents wrong adaptor selection and accelerates project scoping; Application: standardizes adaptor choice across phase configurations.
Get a Quick Quote for a Rittal 9635382
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9635382?
Enquire Now
FAQs
Yes. The adaptor is designed for static rails and mounts on standard 10 mm rail systems, with a compact width of 18 mm and a height of 160 mm. The 100 mm AWG 8 connection cable facilitates straightforward wiring to adjacent equipment, enabling quick, repeatable installations in existing Rittal frames.
The adaptor is rated for a maximum of 63 A and 690 V AC (1‑phase, single‑pole, variant L2). This makes it suitable for direct contact and mechanical attachment in mid‑to‑high power switchgear applications, while ensuring safe operation within its ratings.
Ideal for power management and distribution applications in industrial control panels, switchgear assemblies, and protection gear housings. Its compact form factor and UL 94‑rated housing support integration in automotive, process, and factory automation environments where space is limited and safety is critical.
Key standards include UL 94 fire protection for the polyamide housing, with procurement alignment through ETIM EC001531 and ECLASS 27370304 classifications. These references support interoperability and compliant sourcing across engineering and procurement workflows.
Utilizing the SV 9635.382 reduces assembly time with its compact footprint and straightforward wiring (AWG 8, 100 mm). Pack quantities (6 pcs per pack) simplify stocking, while robust UL 94 rated material lowers safety risk. Overall, you gain faster builds, fewer installation errors, and lower long‑term risk in power distribution enclosures.
