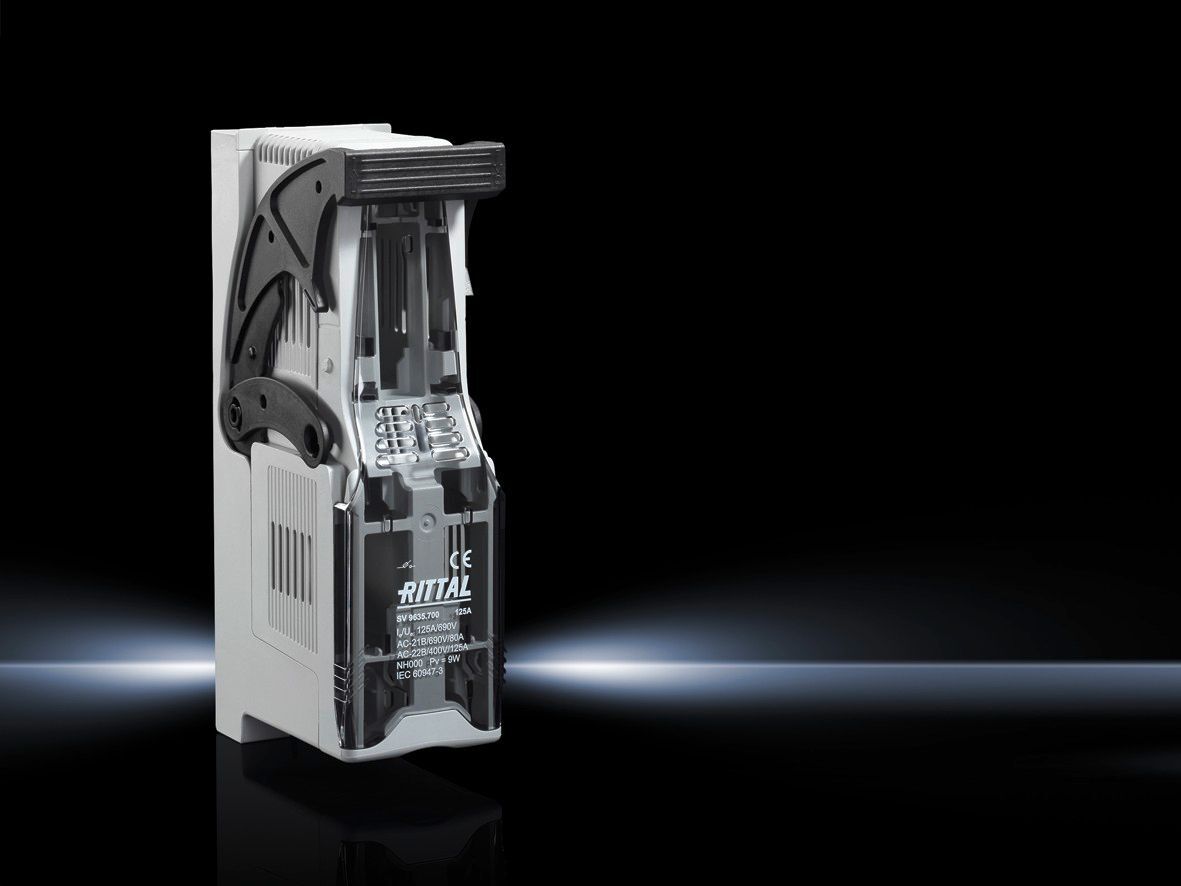

Rittal 9635700 LV HRC Fused Interrupter - IEC 60947-3
Part Number: 9635700
Manufacturer
Rittal
Part number
9635700
Category
Alt Part Number
SV 9635.700
Quick Summary
Rittal 9635700 LV HRC fused interrupter protects critical circuits in RiLine Compact busbar systems. Engineers face panel downtime and mis-protection challenges, which this device helps mitigate with reliable interruption and fast fault isolation. It is designed to meet IEC 60947-3 standards and uses UL 94-V0 fire-rated polyamide, supporting safe operation in demanding environments. With a rated operating current up to 125 A and a rated voltage of 440 V DC/3~, the solution delivers compact, compliant protection for LV distribution. Its top/bottom cable outlets and box-terminal connections simplify installation and enable scalable integration across modular power solutions.
Product Information
Extended Description
9635700 Rittal: LV HRC fused interrupter, size 000, 690 V (RiLine Compact)
Article number
SV 9635.700
Function principle
To protect connected equipment
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Silver-plated hard copper
Colour
RAL 7035
Test specification
IEC/DIN EN 60 947-3
For NH size
000
Rated operating current max.
125 A
Rated operating voltage
440 V (DC), 3~
Number of poles
3-pole
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Connection for round conductor
2.5 ‐ 50 mm²
Clamping area for laminated copper bars (W x H)
10 x 10 mm
Dimensions
Width: 49.5 mm | Height: 174.5 mm | Depth: 96 mm
Packs of
1 pc(s).
Weight/pack
0.576 kg
Copper weight (kg per piece)
0.145
Customs tariff number
85369095
EAN
4028177937604
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
LV HRC fused interrupter, size 000, 690 V (RiLine Compact)
Feature: 3-pole design with a 125 A rated operating current. This configuration ensures balanced protection across all phases, supporting reliable fault clearing in demanding LV systems. Application: Ideal for RiLine Compact busbar assemblies in industrial control panels. Business impact: reduces risk of uneven phase loading and enables fast, predictable protection. Feature: Fire-safe, UL 94-V0 polyamide housing with silver-plated copper contacts. Benefit: enhances safety and longevity in harsh environments while maintaining reliable contact integrity. Application: panel enclosures exposed to heat or arcing risks in manufacturing cells. Feature: Rated voltage 440 V (DC), 3~ with IEC 60947-3 compliance. Benefit: ensures seamless integration with standard low-voltage distribution networks and regulatory alignment. Application: LV distribution zones in data centers and process lines. Feature: Top/bottom cable outlets and box-terminal connection supporting 2.5–50 mm² conductors. Benefit: simplifies wiring, improves serviceability, and reduces install time. Application: modular RiLine Compact installations where quick field upgrades are needed. Feature: Compact footprint (49.5 mm width; 174.5 mm height; 96 mm depth) with 0.576 kg per pack and copper weight of 0.145 kg. Benefit: saves panel space and delivers predictable weight/load for DIN rail and busbar mounting. Application: space-constrained switchgear panels in automation environments.
