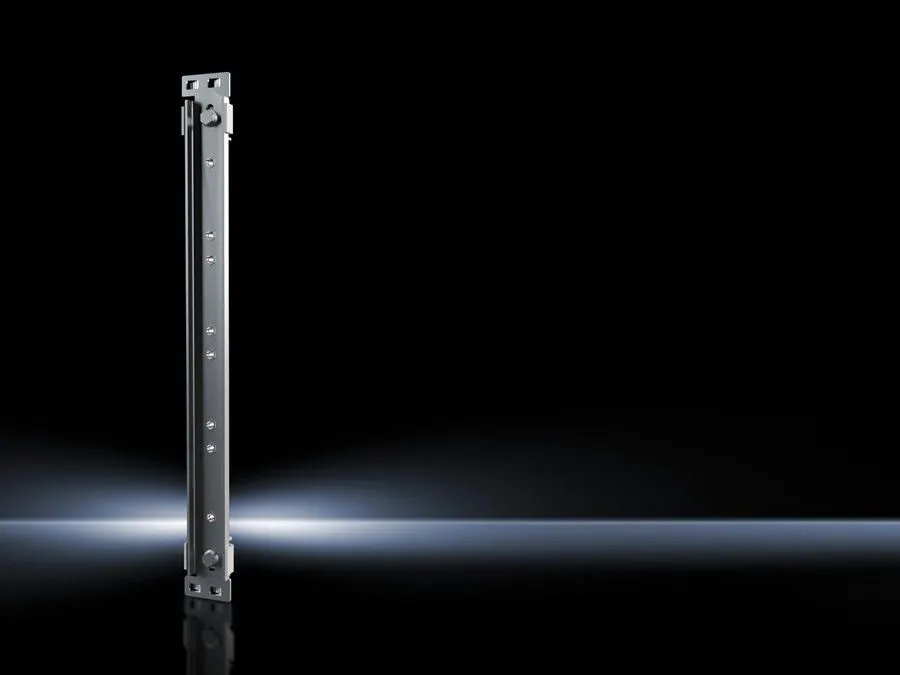

Rittal 9640080 SV System Attachment - 100 mm bar centre distance
Part Number: 9640080
Manufacturer
Rittal
Part number
9640080
Category
Alt Part Number
SV 9640.080
Quick Summary
Rittal SV System attachment is a stainless steel mounting accessory for busbar supports in TS enclosures. Engineers often struggle with precise alignment and secure mounting in compact switchgear, where busbars must stay in place during vibration and maintenance. Note: The data provided does not specify CE, SIL, or IP certifications; verify these requirements with your compliance team. Designed to fit Maxi-PLS 1600 busbars in TS roof/base sections with a 100 mm centre distance, it streamlines installation and reduces setup time. The two-pack packaging and robust stainless steel construction help minimize downtime and long-term maintenance, delivering consistent performance in demanding industrial environments. This accessory supports efficient, scalable power distribution in modern automation cabinets, aligning with procurement classifications ETIM EC001900 and ECLASS 27400613.
Product Information
Extended Description
9640080 Rittal: SV System attachment, for busbar support, SV 9649000/160 (Maxi-PLS 1600/2000), 100 mm bar centre distance, for TS roof/base section (D: 600 mm)
Article number
SV 9640.080
Design
for mounting in the roof/base section
Applications
For installing busbar supports
Material
Stainless steel
Number of poles
100 mm
To fit busbars
Maxi-PLS 1600
To fit
Enclosure type: TS 8 | Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
2.04 kg
Customs tariff number
73269098
EAN
4028177368019
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV System attachment, for busbar support, SV 9649000/160 (Maxi-PLS 1600/2000), 100 mm bar centre distance, for TS roof/base section (D: 600 mm)
Feature: Stainless steel construction provides excellent corrosion resistance in challenging industrial environments. Business impact: Extends service life of busbar supports and reduces maintenance cycles in factory floors and outdoor cabinets. Application: Suitable for TS roof/base sections where exposure to dust, humidity, and cleaning chemicals is commonplace. Feature: Designed for mounting in the TS roof/base section with 100 mm bar centre distance, compatible with Maxi-PLS 1600. Business impact: Ensures precise alignment and reliable support for high-capacity busbars, reducing rework and voltage drop concerns. Application: Fits TS 8 enclosure designs at D: 600 mm depth, enabling quick, plug-and-play installation. Feature: Packaged in sets of two with a combined weight of 2.04 kg per pack. Business impact: Simplifies procurement and logistics while enabling balanced on-site handling and safer installation. Application: Ideal for projects requiring repeatable mounting kits across multiple panels. Feature: Clear compatibility with Maxi-PLS 1600 busbars and TS roof/base sections. Business impact: Improves interchangeability across Rittal enclosures, cutting spare-parts stock and maintenance lead times. Application: Supports scalable power distribution in growing automation cabinets. Feature: Item identity and traceability with article SV 9640.080 and EAN 4028177368019. Business impact: Streamlines procurement and catalog integration for ERP/PLM workflows. Application: Ensures accurate part selection in MRO and project pipelines.
Get a Quick Quote for a Rittal 9640080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640080?
Enquire Now
FAQs
To install, insert the SV System attachment into the TS roof or base section of a TS enclosure, align to the 100 mm bar centre distance, and secure with standard mounting hardware. Verify Maxi-PLS 1600 busbar compatibility and ensure the enclosure is TS 8 with D 600 mm depth. The kit comes in a two-pack for balanced installation and consistent assembly across panels.
Key specs include stainless steel construction for corrosion resistance, a fixed 100 mm centre distance for Maxi-PLS 1600 busbars, and compatibility with TS roof/base sections at 600 mm depth. These factors support stable busbar mounting, reduce vibration-induced wear, and improve long-term reliability in demanding environments.
Yes. The SV 9640.080 is explicitly designed for Maxi-PLS 1600 busbars and fits TS roof/base sections with a 600 mm depth. It provides precise alignment and robust support, making it suitable for power distribution roles in industrial cabinets requiring reliable high-current busbar mounting.
The provided data includes ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications, along with the EAN 4028177368019. CE conformity and IP ratings are not specified in the data; verify regulatory requirements with your compliance team for your application.
Two-pack packaging simplifies stocking and replacement planning, reducing downtime during maintenance windows. Stainless steel construction lowers corrosion-related maintenance. Clear compatibility with Maxi-PLS 1600 and TS 8 enclosures ensures scalable deployment across multiple panels, delivering measurable ROI through longer service life and faster installations.
