Rittal 9640171 SV Contact Maker - Maxi-PLS 1600/2000
Part Number: 9640171
Manufacturer
Rittal
Part number
9640171
Category
Alt Part Number
SV 9640.171
Quick Summary
SV 9640.171 contact maker is a copper-based connector designed for Maxi-PLS busbars in industrial control panels. Engineers and purchasing teams often struggle with ensuring low contact resistance and reliable assembly under vibration and heat cycling. This part uses E-Cu material, fits Maxi-PLS 1600, and aligns with ETIM 9 and ECLASS 8.0 classifications for seamless cataloging. By specifying supply pieces included and copper weight, the business value becomes easier budgeting and faster installation. Designed for safety-critical environments, the part ensures consistent contact quality across Maxi-PLS busbar configurations. The included mounting parts reduce assembly time and field errors. Its compact 60x20 mm footprint supports tight panel layouts and scalable installations.
Product Information
Extended Description
9640171 Rittal: SV Contact maker E-Cu, WH: 60x20 mm, (Maxi-PLS 1600/2000)
Article number
SV 9640.171
Applications
For contacting the connection brackets to the Maxi-PLS busbars
Material
E-Cu
Supply includes

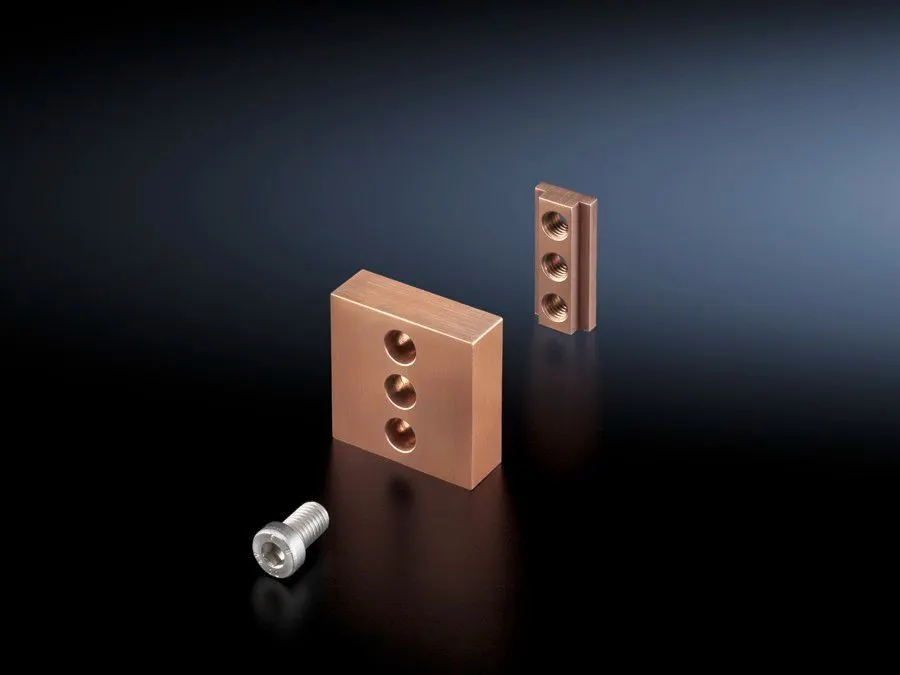

Contact piece | Sliding block | Assembly parts
To fit busbars
Maxi-PLS 1600
Packs of
1 pc(s).
Weight/pack
0.493 kg
Copper weight (kg per piece)
0.49
Customs tariff number
74198090
EAN
4028177642942
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Contact maker E-Cu, WH: 60x20 mm, (Maxi-PLS 1600/2000)
The SV 9640.171 leverages copper-based E-Cu to deliver a distinctly low contact resistance, directly reducing heat generation and improving overall efficiency in Maxi-PLS busbar circuits. The business impact is tangible: longer service life, fewer maintenance cycles, and lower panel operating costs. In practice, installers gain a streamlined connection process thanks to the supplied contact piece, sliding block, and assembly parts, which shortens commissioning time and lowers field error rates. Compatibility with Maxi-PLS 1600 busbars ensures a plug-and-play fit, minimizing the need for adapters or custom tooling while enabling scalable panel configurations. The product’s 0.49 kg copper weight per piece (0.493 kg per pack) provides predictable budgeting for material handling and freight. ETIM 9 EC001900 and ECLASS 8.0 27400613 align the part with standard procurement catalogs, simplifying sourcing and cross-referencing across projects. In demanding environments, the robust E-Cu contact remains stable under vibration and temperature cycling, supporting long-term reliability. Installation advantages include included assembly parts that reduce the risk of missing components during field assembly. Industry insight shows Rittal’s Maxi-PLS ecosystem benefits from standardized contact makers that speed up maintenance turnaround while preserving electrical integrity.
Get a Quick Quote for a Rittal 9640171
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640171?
Enquire Now
FAQs
Yes. The SV 9640.171 is specifically designed to contact the connection brackets to Maxi-PLS busbars, covering Maxi-PLS 1600 and 2000 variants. The package includes a contact piece, sliding block, and assembly parts to streamline installation in control panels using Maxi-PLS 1600 busbars. Material is E-Cu to ensure reliable low resistance connections.
The SV 9640.171 is made from copper-based E-Cu, offering low contact resistance and high electrical conductivity. This results in reduced heat generation, improved efficiency, and longer service life in Maxi-PLS busbar applications. The copper construction also provides reliable performance under typical panel conditions, including vibration and thermal cycling.
The supply includes a contact piece, a sliding block, and necessary assembly parts, all packaged as a single unit. The product is sold as 1 piece per pack, with a copper weight of approximately 0.49 kg per piece and 0.493 kg per pack. This packaging supports straightforward stocking and rapid field installation.
SV 9640.171 is classified under ETIM 9 EC001900 and ECLASS 8.0 27400613, ensuring seamless integration with standard catalogs. It carries GTIN 4028177642942 and EAN 4028177642942 for traceability, and the customs tariff number 74198090. These details assist in compliant, efficient procurement and logistics.
For reliable panel installations, ensure proper seating of the contact piece against Maxi-PLS 1600/2000 busbars, use the included sliding block and assembly parts as designed, and verify copper contact surfaces remain clean and corrosion-free. The 60x20 mm footprint fits typical control panel cavities, and ETIM/ECLASS alignment aids in consistent specification and future maintenance planning.
