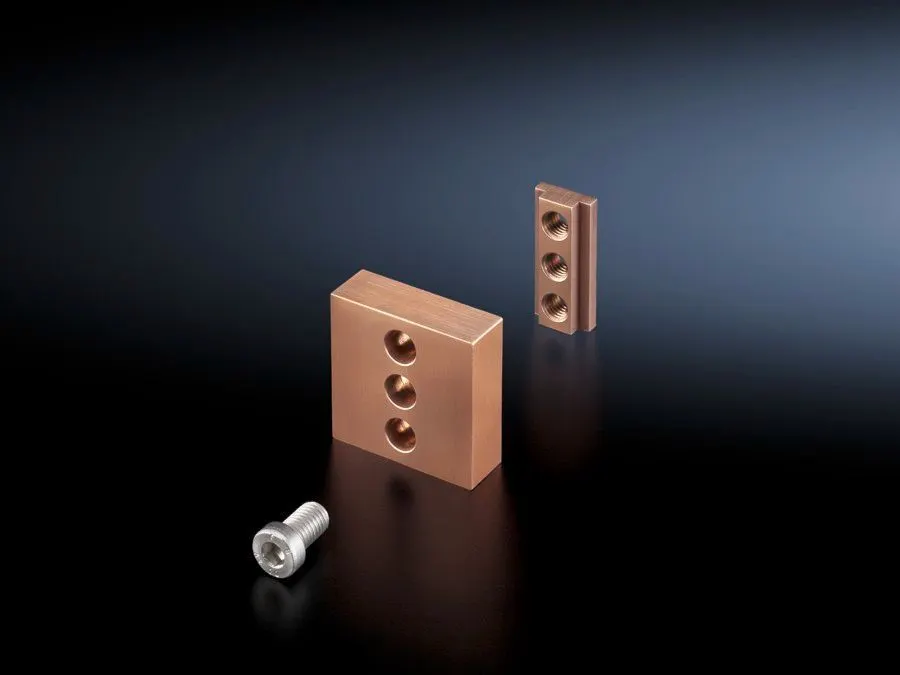

Rittal 9640181 SV Contact maker - Maxi-PLS 1600/2000
Part Number: 9640181
Manufacturer
Rittal
Part number
9640181
Category
Alt Part Number
SV 9640.181
Quick Summary
Rittal 9640181 SV contact maker enables reliable contact to Maxi-PLS busbars in power distribution, ensuring consistent current paths in enclosure assemblies and control panels. In practice, engineers face challenges with contact reliability, resistance variability, and time-consuming assembly tasks that drive downtime and service costs. The part uses copper E-Cu with a weight of 0.81 kg per piece and is designed specifically for Maxi-PLS 1600/2000, providing a robust, low-resistance connection and long-term durability. Supplied as a complete kit—including the contact piece, sliding block, and assembly parts—the solution streamlines installation and reduces on-site labor. By optimizing the contact interface, it supports scalable, compliant power distribution with predictable performance and lower lifecycle spend.
Product Information
Extended Description
9640181 Rittal: SV Contact maker E-Cu, WH: 100x20 mm, (Maxi-PLS 1600/2000)
Article number
SV 9640.181
Applications
For contacting the connection brackets to the Maxi-PLS busbars
Material
E-Cu
Supply includes
Contact piece | Sliding block | Assembly parts
To fit busbars
Maxi-PLS 1600
Packs of
1 pc(s).
Weight/pack
0.84 kg
Copper weight (kg per piece)
0.81
Customs tariff number
74198090
EAN
4028177648814
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Contact maker E-Cu, WH: 100x20 mm, (Maxi-PLS 1600/2000)
Feature: E-Cu contact material delivers minimal contact resistance and high conductivity. Business Impact: Lower voltage drop, improved current sharing, and reduced heating under normal operating conditions. Application: Suitable for Maxi-PLS 1600/2000 busbars in switchgear and distribution panels. Feature: Size WH 100x20 mm ensures precise mounting fit. Business Impact: Consistent contact geometry reduces installation errors and rework. Application: Directly compatible with Maxi-PLS 1600/2000 connection brackets in Rittal enclosures. Feature: Supplied with contact piece, sliding block, and assembly parts. Business Impact: Reduces BOM complexity, accelerates assembly, and shortens commissioning time. Application: Rapid field or workshop installation for power distribution systems. Feature: Pack of 1 piece with copper weight 0.81 kg per piece and total pack weight 0.84 kg. Business Impact: Clear inventory planning, cost control, and predictable procurement cycles. Application: Efficient stocking for ongoing maintenance and upgrades. Feature: Part number SV 9640.181 with clear product description and ETIM/ECLASS alignment. Business Impact: Improves traceability, compatibility checks, and data-driven procurement. Application: Streamlined sourcing for Maxi-PLS busbar assemblies and related accessories.
Get a Quick Quote for a Rittal 9640181
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640181?
Enquire Now
FAQs
Install by aligning the SV 9640.181 contact piece with the Maxi-PLS 1600/2000 busbars, insert the sliding block, and secure with the included assembly parts. Ensure proper seating to maintain low resistance path and verify with a basic continuity check after assembly.
Check material as E-Cu copper, dimensions WH 100x20 mm, copper weight of 0.81 kg per piece, and that the part fits Maxi-PLS 1600/2000 busbar configurations. The package includes the contact piece, sliding block, and assembly parts for straightforward mounting.
Yes. The SV 9640.181 is specifically designed to contact Maxi-PLS 1600/2000 busbars, delivering a robust mechanical connection and low-resistance electrical path in power distribution enclosures.
Copper contact pieces provide high conductivity and low contact resistance, reducing heat buildup and voltage drop, which improves reliability, uptime, and efficiency in distribution panels and switchgear.
Safety instructions and technical documents are available via the provided downloads: a product PDF page and Global Safety Instructions for 9640181, which cover installation, handling, and safety notes.
