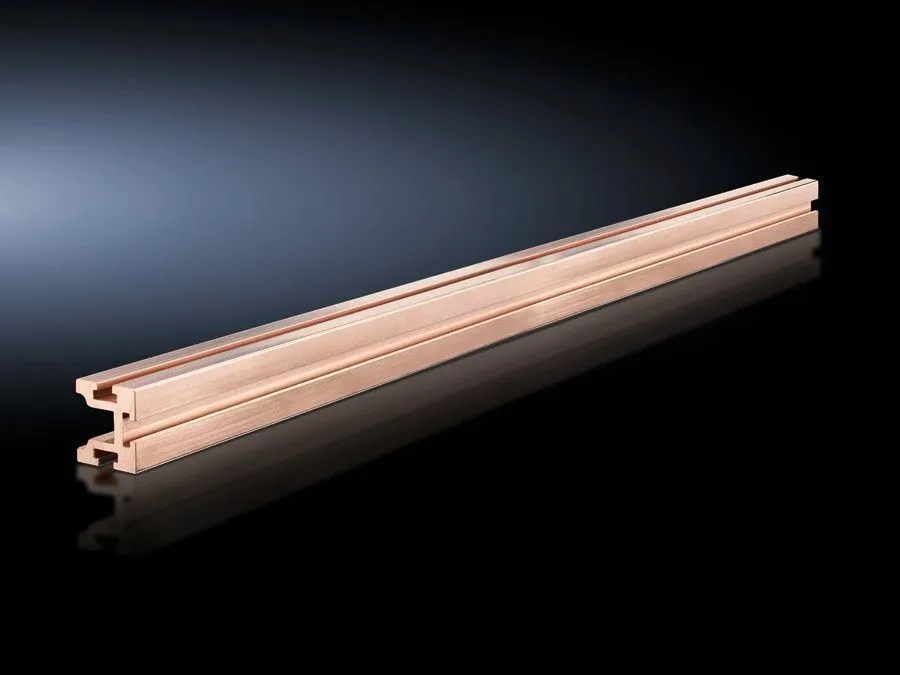

Rittal SV 9640.236 Busbar - Maxi-PLS E-Cu EC001522
Part Number: 9640236
Manufacturer
Rittal
Part number
9640236
Category
Alt Part Number
SV 9640.236
Quick Summary
Rittal SV Maxi-PLS busbar is a copper cross-section conductor designed for fast, reliable power distribution in switchgear and control cabinets. Engineers frequently battle voltage drop, overheating, and tangled wiring in compact enclosures, making clean, scalable distribution essential. This busbar delivers a 974 mm² cross-section and a 691 mm length, supporting Maxi-PLS 1600 configurations with robust mechanical stability. It is cataloged to ETIM EC001522 and ECLASS 27370303 standards, aiding procurement data, ERP integration, and lifecycle planning. By adopting this solution, teams can reduce installation time and wire clutter while improving electrical performance and maintainability. The 800 mm width fit and cut-to-length capability further enhance flexibility in diverse enclosure geometries, delivering tangible business value through predictable installation and long-term reliability.
Product Information
Extended Description
9640236 Rittal: SV Maxi-PLS busbar E-Cu, L: 691 mm, Maxi-PLS 1600
Article number
SV 9640.236
Product description
For assembling cable connection systems.
Material
E-Cu
Cross-section
974 mm²
Length
691 mm
Note
May be cut individually to required length
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
5.86 kg
Copper weight (kg per piece)
6.11
Customs tariff number
74071000
EAN
4028177569294
ETIM 9
EC001522
ECLASS 8.0
27370303
Product description
SV Maxi-PLS busbar E-Cu, L: 691 mm, Maxi-PLS 1600
Feature: 974 mm² cross-section copper (E-Cu) reduces resistive losses and mitigates voltage drop under high-current conditions. Business Impact: Improves overall system efficiency and lowers heat generation, contributing to cooler enclosures and extended component life. Application: Ideal for high-density power distribution in control cabinets and switchgear where Maxi-PLS 1600 configurations are used. Feature: 691 mm length with note that it may be cut to required length. Business Impact: Enables flexible installation in a range of enclosures, minimizes waste, and supports custom layouts without sourcing multiple parts. Application: Fits 800 mm wide footprints and allows on-site adjustments during panel assembly. Feature: Maxi-PLS 1600 compatibility and cable-connection system integration. Business Impact: Streamlines integration with existing Maxi-PLS infrastructure, reduces wiring complexity, and accelerates commissioning. Application: Recommended for cable connection systems in automated plants and panel builders. Feature: Weight and packaging details (5.86 kg per pack; copper weight 6.11 kg per piece). Business Impact: Predictable handling, safer lifting, and straightforward procurement planning. Application: Suitable for controlled cabinet assembly workflows and inventory management. Feature: Material and standards (E-Cu; ETIM EC001522; ECLASS 27370303). Business Impact: Ensures high conductivity with traceable data classification, improving parts cataloging, ERP integration, and compliance checks. Application: Supports procurement and engineering data workflows across automation projects. Feature: May be cut to required length (as noted). Business Impact: Further reduces waste and enables on-site customization to exact enclosure dimensions. Application: Beneficial for bespoke panel designs and retrofit projects.
Get a Quick Quote for a Rittal 9640236
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640236?
Enquire Now
FAQs
Check the enclosure footprint for an 800 mm width, confirm the available vertical space, and verify that the busbar length of 691 mm aligns with your layout. The part can be cut to length per the Note, and the cross-section of 974 mm² (E-Cu) ensures sufficient current carrying capacity for Maxi-PLS 1600 configurations.
Key specifications include material E-Cu, cross-section 974 mm², length 691 mm, and copper weight of 6.11 kg per piece. These attributes support high-current distribution with minimized resistive losses, while providing robust mechanical strength for cabinet installations and cable connection systems.
Yes, the SV Maxi-PLS busbar is designed for Maxi-PLS 1600 configurations. It is 691 mm long and fits an 800 mm wide footprint. It can be cut to length as needed to match your exact panel dimensions, simplifying integration with existing Maxi-PLS infrastructure and reducing wiring complexity.
The busbar is cataloged under ETIM 9 EC001522 and ECLASS 8.0 27370303, with associated identifiers such as EAN 4028177569294 and customs tariff 74071000. These classifications aid data-driven procurement, ERP integration, and consistent part cataloging across engineering and purchasing teams.
Because the busbar has no moving parts and uses high-conductivity copper, maintenance is minimal beyond regular panel checks. Its cut-to-length capability supports retrofit projects, and its robust mechanical design reduces wear during assembly and service intervals, contributing to lower lifecycle costs and predictable maintenance planning.
