Rittal SV 9640.246 Busbar E-Cu - Maxi-PLS 1600 EC001522
Part Number: 9640246
Manufacturer
Rittal
Part number
9640246
Category
Alt Part Number
SV 9640.246
Quick Summary
Rittal SV Maxi-PLS busbar is a copper conductor used for high-capacity cable connections in switchgear and control cabinets. Engineers often struggle with fitting long busbars to tight panel dimensions without compromising electrical performance or reliability. This part aligns with ETIM EC001522 and ECLASS 27370303 classifications, supporting interoperable data and consistent procurement, while standard identifiers like EAN 4028177569300 simplify ordering. By offering a 725 mm length, 974 mm² cross-section, and 45x45 mm footprint, it delivers a scalable solution for modern power-distribution layouts. The design also accommodates cut-to-length customization, enabling you to adapt to evolving panel architectures. In practice, adopting this busbar translates to faster installation, reduced waste, and improved system reliability across 800 mm-wide rack enclosures.
Product Information
Extended Description

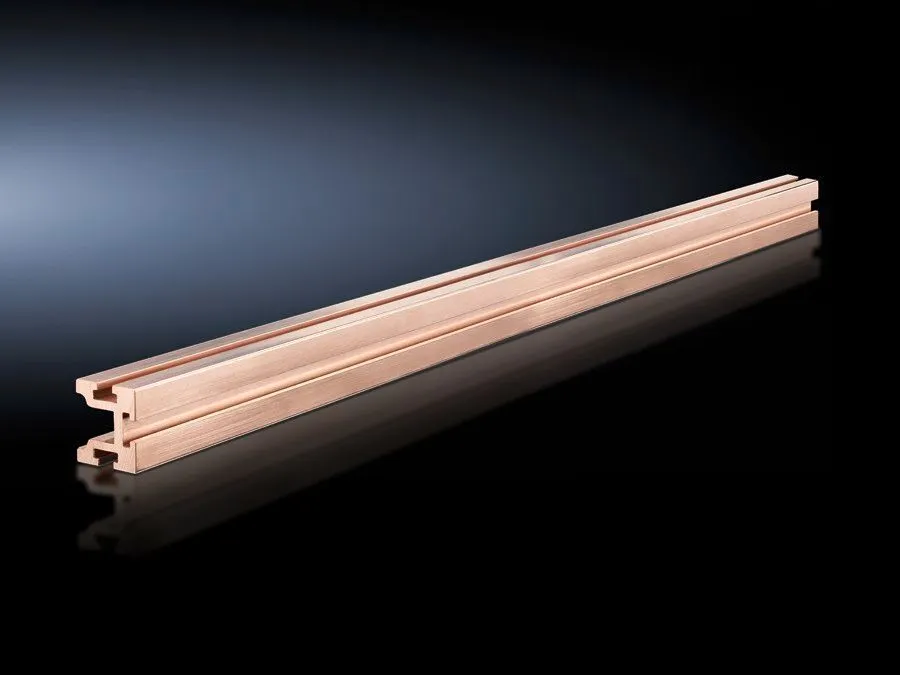

9640246 Rittal: SV Maxi-PLS busbar E-Cu, L: 725 mm, Maxi-PLS 1600
Article number
SV 9640.246
Product description
For assembling cable connection systems.
Material
E-Cu
Cross-section
974 mm²
Length
725 mm
Note
May be cut individually to required length
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
6.4 kg
Copper weight (kg per piece)
6.41
Customs tariff number
74071000
EAN
4028177569300
ETIM 9
EC001522
ECLASS 8.0
27370303
Product description
SV Maxi-PLS busbar E-Cu, L: 725 mm, Maxi-PLS 1600
Feature: E-Cu material with a 974 mm² cross-section and 725 mm length. Business Impact: High current-carrying capability with low electrical resistance supports efficient power distribution in compact enclosures. Application: Ideal for cable connection systems in 800 mm-wide panel layouts. This combination reduces energy losses and improves overall panel performance. Feature: May be cut individually to required length. Business Impact: Cuts waste, accelerates on-site installation, and enables precise routing in complex cabinet geometries. Application: Custom busbar runs with minimal trimming required during final assembly. Feature: Maxi-PLS 1600 compatibility and 800 mm width fit. Business Impact: Streamlines integration with existing Maxi-PLS components, improving space utilization and scalability. Application: Used in standard Rittal power distribution schemes for modular cabinets. Feature: Copper weight 6.41 kg per piece; packs 1 pc. Business Impact: Robust construction supports durable connections and predictable handling in warehouse and installation environments. Application: Ready-to-order inventory for controlled procurement and logistics. Feature: ETIM 9 EC001522 and ECLASS 8.0 27370303 data, plus EAN 4028177569300. Business Impact: Enhances data quality for ERP systems and supplier collaboration, reducing procurement errors. Application: Seamless integration with digital catalogs and procurement workflows.
Get a Quick Quote for a Rittal 9640246
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640246?
Enquire Now
FAQs
Plan for a 725 mm long, 974 mm² cross-section busbar with a 45x45 mm footprint to fit 800 mm-wide enclosures. Use the cut-to-length option to match exact panel geometry and consider handling weight — copper weight is 6.41 kg per piece and packs are 1 piece per order to simplify logistics.
The 974 mm² cross-section on an E-Cu busbar provides high current capacity with low resistance. Exact ratings depend on installation conditions, cooling, and enclosure design; consult standard conductor tables and the specific Maxi-PLS system guidelines for precise current limits in your panel.
Yes. The SV 9640.246 is specifically described as a Maxi-PLS busbar with a 725 mm length designed to fit within 800 mm-wide assemblies, aligning with Maxi-PLS 1600 configurations for scalable power distribution.
It carries ETIM 9 EC001522 and ECLASS 8.0 27370303 classifications, plus EAN 4028177569300 and a Customs tariff of 74071000. These identifiers improve data quality in ERP systems and ensure consistent sourcing across catalogs and suppliers.
The product note states it may be cut individually to the required length, enabling precise tailoring to your panel design and reducing waste during fabrication and assembly.
