Rittal SV 9640.330 Connection Plate - Maxi-PLS 1600/2000
Part Number: 9640330
Manufacturer
Rittal
Part number
9640330
Category
Alt Part Number
SV 9640.330
Quick Summary
The Rittal SV 9640.330 connection plate enables secure lamination with copper busbars in power distribution panels. Engineers often struggle with unreliable clamp force, corrosion risk, and misalignment in tight panel spaces; this plate addresses those challenges with a robust, precision-machined interface. Designed to align with industry standards and procurement classifications such as ETIM EC002498 and ECLASS 27379201, it also adheres to CE-readiness expectations for European installations. By pairing with Maxi-PLS 45 S/45 busbars and a compact 32x20 mm clamping area, it delivers reliable electrical contact while simplifying installation and stocking for panel builders and maintenance teams. This translates into reduced downtime and improved long-term system reliability.
Product Information
Extended Description

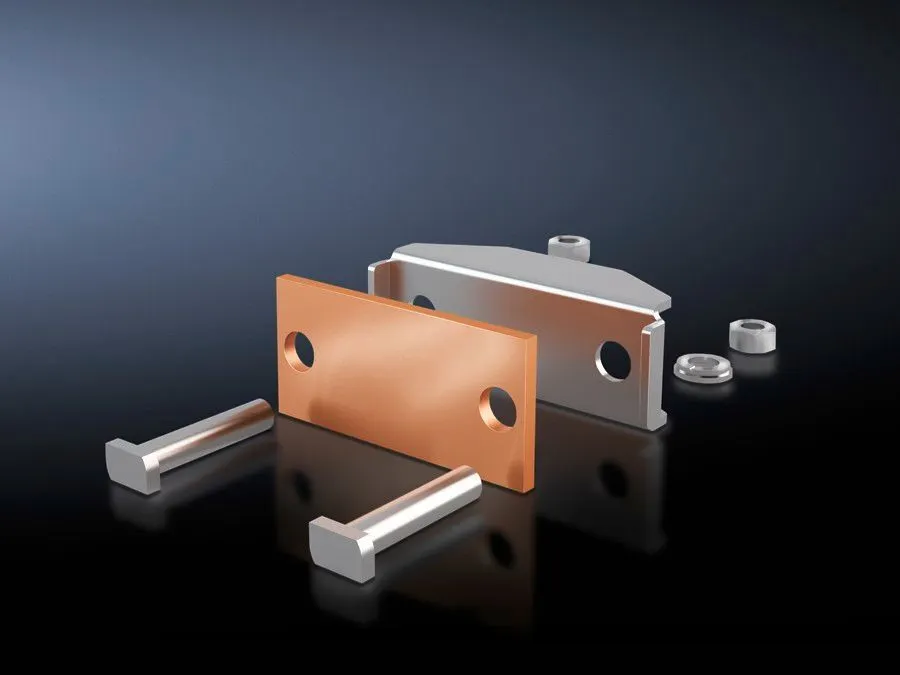

9640330 Rittal: SV Connection plate, clamping area WH: 32x20 mm, (Maxi-PLS 1600/2000)
Article number
SV 9640.330
Product description
For the connection of laminated flat copper bars.
Material
Connection plate: E-Cu | Thrust piece: Stainless steel
Supply includes
Assembly parts
To fit busbars
Maxi-PLS 45 S/45
Clamping area for laminated copper bars (W x H)
32 x 20 mm
Packs of
3 pc(s).
Weight/pack
1.071 kg
Copper weight (kg per piece)
0.13
Customs tariff number
85369010
EAN
4028177238671
ETIM 9
EC002498
ECLASS 8.0
27379201
Product description
SV Connection plate, clamping area WH: 32x20 mm, (Maxi-PLS 1600/2000)
Feature → Business Impact → Application: The 32x20 mm clamping area provides a compact, precise contact interface for laminated flat copper bars, delivering consistent clamp force and reliable electrical connection in space-constrained panels. This reduces retrofit time and supports safer, more predictable power distribution in automation cabinets. Feature → Business Impact → Application: Copper weight 0.13 kg per piece and E-Cu plate with a stainless steel thrust piece deliver excellent conductivity with corrosion resistance, extending service life in vibration-prone electrical enclosures and high-humidity environments. Feature → Business Impact → Application: Supplied as 3-piece packs, with assembly parts included, streamlining logistics and enabling faster stock turns for panel shops and OEMs while minimizing sourcing complexity. Feature → Business Impact → Application: Maxi-PLS 45 S/45 compatibility ensures seamless integration with common busbar systems, reducing engineering changes and boosting installation confidence in power management & distribution layouts. Feature → Business Impact → Application: ETIM 9 EC002498 and ECLASS 8.0 27379201 alignment supports accurate procurement and cross-system data management, improving BOM accuracy and supplier collaboration. Feature → Business Impact → Application: Stainless steel thrust piece and E-Cu combination deliver durable contact under load, supporting compliance with industry reliability expectations and minimizing maintenance intervals in critical automation lines.
Get a Quick Quote for a Rittal 9640330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640330?
Enquire Now
FAQs
Begin by aligning the laminated flat copper bars within the 32x20 mm clamping area. Insert the thrust piece (stainless steel) and secure the assembly with the supplied parts. The 3-pack packaging and included assembly components simplify mounting, reducing installation time and ensuring consistent clamp force. Verify busbar fitment with Maxi-PLS 45 S/45 to avoid misalignment.
Yes. The SV 9640.330 is designed for the connection of laminated flat copper bars, featuring a 32x20 mm clamping area and a copper weight of 0.13 kg per piece. Its E-Cu plate and stainless steel thrust piece provide reliable electrical contact and corrosion resistance, suitable for laminated copper bar applications in power distribution.
The clamping area and mounting geometry are specified to fit Maxi-PLS 45 S/45 busbars, ensuring a secure mechanical and electrical connection. The included assembly parts and compatible materials simplify integration, reduce alignment errors, and support robust performance in demanding panel layouts where Maxi-PLS is part of the busbar ecosystem.
The product aligns with ETIM 9 EC002498 and ECLASS 8.0 27379201 classifications for seamless procurement data. While the data does not list specific certifications like SIL or IP, the design supports CE readiness for European markets and typical regulatory expectations for electrical components, aiding compliance documentation and sourcing workflows.
Durable materials (E-Cu plate and stainless steel thrust piece) reduce wear, corrosion, and maintenance intervals, improving long-term reliability in power circuits. The 3-pack packaging, easy assembly, and compatibility with common busbar systems cut installation time and inventory complexity, delivering lower total cost of ownership for panel builders and maintenance teams.
