Rittal 9640350 Connection Plate - Maxi-PLS 1600/2000
Part Number: 9640350
Manufacturer
Rittal
Part number
9640350
Category
Alt Part Number
SV 9640.350
Quick Summary
9640350 is a connection plate that enables secure laminated flat copper bar connections inside electrical enclosures. Engineers often struggle with clamping reliability, misalignment, and wear under vibration; this plate’s clamp geometry and material choices address those pain points. Catalog data references ETIM EC002498 and ECLASS 27379201, highlighting standardization for procurement and integration. The assembly includes mounting parts and uses copper E-Cu with a stainless steel thrust piece for durable, corrosion-resistant contact. Designed to fit Maxi-PLS 45 S/45 busbars and compatible with Maxi-PLS 1600/2000 configurations, it supports scalable, serviceable power distribution in industrial cabinets.
Product Information
Extended Description

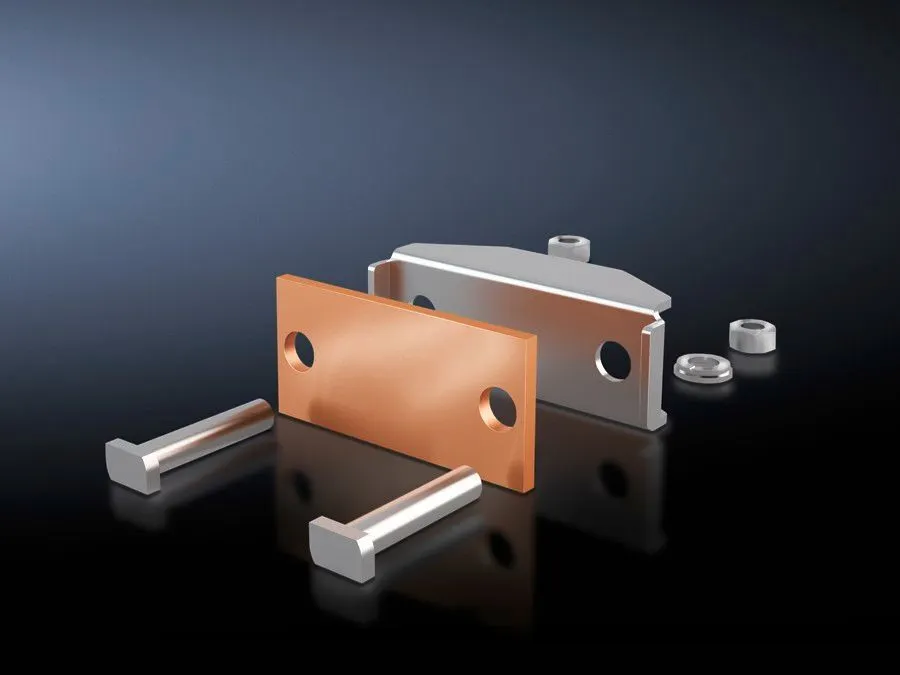

9640350 Rittal: SV Connection plate, clamping area WH: 100x20 mm, (Maxi-PLS 1600/2000)
Article number
SV 9640.350
Product description
For the connection of laminated flat copper bars.
Material
Connection plate: E-Cu | Thrust piece: Stainless steel
Supply includes
Assembly parts
To fit busbars
Maxi-PLS 45 S/45
Clamping area for laminated copper bars (W x H)
100 x 20 mm
Packs of
3 pc(s).
Weight/pack
1.959 kg
Copper weight (kg per piece)
0.27
Customs tariff number
85369010
EAN
4028177238695
ETIM 9
EC002498
ECLASS 8.0
27379201
Product description
SV Connection plate, clamping area WH: 100x20 mm, (Maxi-PLS 1600/2000)
Feature: Clamping area engineered for laminated copper bars (100 x 20 mm). Business Impact: Ensures stable, low-tolerance contact and reduces loosening over time. Application: Ideal for reliable power distribution in control cabinets using Maxi-PLS systems. In practice, users experience consistent torque distribution and reduced maintenance windows when wiring MLV channels.Feature: Material composition with copper plate (E-Cu) and stainless steel thrust piece. Business Impact: Improves electrical conductivity while resisting corrosion and wear in harsh environments. Application: Suitable for long service life in industrial enclosures where copper contact quality is critical.Feature: Includes assembly parts. Business Impact: Speeds up installation and minimizes the risk of missing components during field mounting. Application: Fast, repeatable assemblies in high-volume production environments.Feature: Pack configuration and weight data (3 pcs per pack; weight per pack 1.959 kg; copper weight 0.27 kg per piece). Business Impact: Simplifies logistics planning and inventory management for maintenance teams. Application: Efficient stocking for service contracts and OEM projects.Feature: Maxi-PLS compatibility (Maxi-PLS 45 S/45; Maxi-PLS 1600/2000). Business Impact: Enables scalable, modular busbar connections across different enclosure sizes. Application: Seamless integration into existing Rittal power distribution setups, reducing redesign costs.Feature: Catalog references (ETIM EC002498; ECLASS 27379201). Business Impact: Improves searchability and procurement accuracy in ERP/Kanban workflows. Application: Streamlined parts lookup and consistent specification in industrial purchasing.
Get a Quick Quote for a Rittal 9640350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9640350?
Enquire Now
FAQs
The SV 9640.350 is designed to fit Maxi-PLS 45 S/45 as well as Maxi-PLS 1600/2000 configurations. The clamping area is 100x20 mm, and the unit ships with assembly parts to facilitate quick mounting on laminated flat copper bars. Ensure the busbar width and thickness match your enclosure’s DIN rail layout for optimal contact pressure.
Key specs include a 100x20 mm clamping area, copper weight of 0.27 kg per piece, and packs of 3 with total weight per pack of 1.959 kg. Material is E-Cu for the connection plate and stainless steel for the thrust piece, with ETIM EC002498 and ECLASS 27379201 classifications for procurement clarity.
Yes. The design targets laminated flat copper bars, and the clamping area is specifically sized for 100x20 mm bars. The copper-to-metal contact is reinforced by a stainless steel thrust piece, improving reliability in vibration-prone environments common in control cabinets and switchgear.
Catalog data references ETIM EC002498 and ECLASS 27379201 for cataloging and interoperability. Explicit SIL, CE, or IP certifications are not listed in the provided data; verify with the supplier for region-specific compliance requirements and any additional certifications your project may mandate.
The plate delivers a robust, corrosion-resistant copper-to-metal connection with a stainless thrust piece, reducing maintenance and contact degradation. Its inclusion of assembly parts speeds up installation, while its compatibility with Maxi-PLS systems enables scalable wiring for growing power distribution needs, contributing to lower lifecycle costs and reduced downtime.
