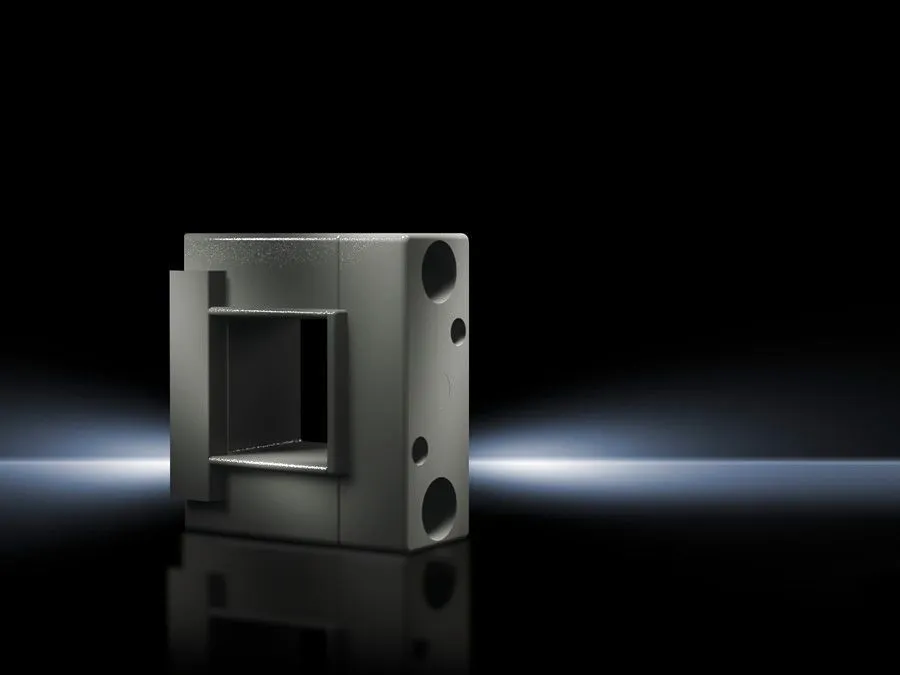

Rittal 9649000 SV Busbar Support - Maxi-PLS
Part Number: 9649000
Manufacturer
Rittal
Part number
9649000
Category
Alt Part Number
SV 9649.000
Quick Summary
Rittal 9649000 SV Busbar Support provides secure Maxi-PLS busbar attachment inside enclosure supports. This solution streamlines panel assembly by inserting the two-part insert directly into supports for fast, repeatable mounting. Engineers often face vibration, shifting busbars, and time-consuming alignment, which increases maintenance and risk of fault. The component aligns with CE safety expectations in Europe and is documented with ETIM EC002525 and ECLASS 27400613 classifications to support consistent procurement data. Its durable polyamide body and a compact 0.38 kg per-pack weight enable easier handling, while Maxi-PLS compatibility minimizes mis-match across the 1600/2000 busbar family. In short, it delivers reliable performance, lower installation costs, and better field service readiness for power distribution applications.
Product Information
Extended Description
9649000 Rittal: SV Busbar support, Maxi-PLS 1600/2000
Article number
SV 9649.000
Material
Polyamide
Colour
Similar to RAL 9011
To fit busbars
Maxi-PLS 1600
Packs of
1 pc(s).
Weight/pack
0.38 kg
Customs tariff number
85469010
EAN
4028177400764
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Busbar support, Maxi-PLS 1600/2000
Feature: The two-part SV Busbar support is designed for simple, tool-free assembly. Business Impact: This reduces installation time and minimizes the risk of misalignment during mounting. Application: Ideal for panel builders integrating Maxi-PLS 1600/2000 busbars inside switchgear enclosures. Feature: Polyamide body provides durability and resistance to typical enclosure environments. Business Impact: Enhances long-term reliability and reduces part replacement cycles. Application: Internal busbar supports in power management and distribution systems. Feature: Maxi-PLS 1600/2000 compatibility ensures a consistent fit across the Maxi-PLS family. Business Impact: Lowers spare-parts variety and simplifies procurement. Application: System integrators standardizing Maxi-PLS installations. Feature: Packs of 1 pc with a weight of 0.38 kg per pack. Business Impact: Simplifies BOMs and reduces shipping complexity. Application: Just-in-time inventory for panel assembly teams. Feature: Clear documentation including ETIM EC002525 and ECLASS 27400613 for digital catalogs. Business Impact: Improves ERP and procurement data quality. Application: Data-driven order workflows for electrical components.
Get a Quick Quote for a Rittal 9649000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9649000?
Enquire Now
FAQs
Install by aligning the two-part insert with the Maxi-PLS 1600 mounting points, then press into the supports until seated. The design supports quick, tool-free assembly, reducing alignment risk and installation time. Ensure the busbars sit firmly in place before wiring and enclosure enclosure closure.
SV 9649.000 is designed to attach Maxi-PLS 1600/2000 busbars inside enclosure supports. The 2-part design ensures a secure, repeatable fit with minimal adjustment, supporting reliable power distribution within Rittal enclosures and compatible systems.
The data for this product references CE safety expectations in Europe and includes ETIM EC002525 and ECLASS 27400613 classifications for procurement data. For definitive certification status and documentation, consult the official datasheet or contact the supplier directly.
The unit is sold in packs of 1 piece, with a weight of 0.38 kg per pack. This compact, single-article packaging simplifies BOM creation and inventory management for panel builders and distributors working with Maxi-PLS installations.
Choosing Rittal ensures Maxi-PLS compatibility, reliable polyamide material, and consistent data through ETIM and ECLASS classifications. The two-part design accelerates installation, reduces misalignment risk, and supports robust, field-ready power distribution in enclosures, lowering lifecycle costs and maintenance cycles.
