Rittal 9649010 End Support - Maxi-PLS 1600/2000 UL94-V0
Part Number: 9649010
Manufacturer
Rittal
Part number
9649010
Category
Alt Part Number
SV 9649.010
Quick Summary
Rittal 9649010 End Support for Maxi-PLS busbars securely attaches on enclosure sides for fast, clean cable integration. Design engineers often contend with cumbersome routing and misaligned connections during panel builds; this part simplifies insertion into the supports, reducing setup time and field errors. It features UL 94‑V0 fire protection and CE-compliance for European markets, and it is compatible with Maxi-PLS 45 S busbars to ensure reliable, scalable distribution. The polyamide housing and two-piece pack streamline handling, while the color match to RAL 9011 helps maintain consistent enclosure aesthetics. Together, these attributes translate to lower spare parts cost, faster project delivery, and improved overall equipment reliability for OEMs and integrators.
Product Information
Extended Description

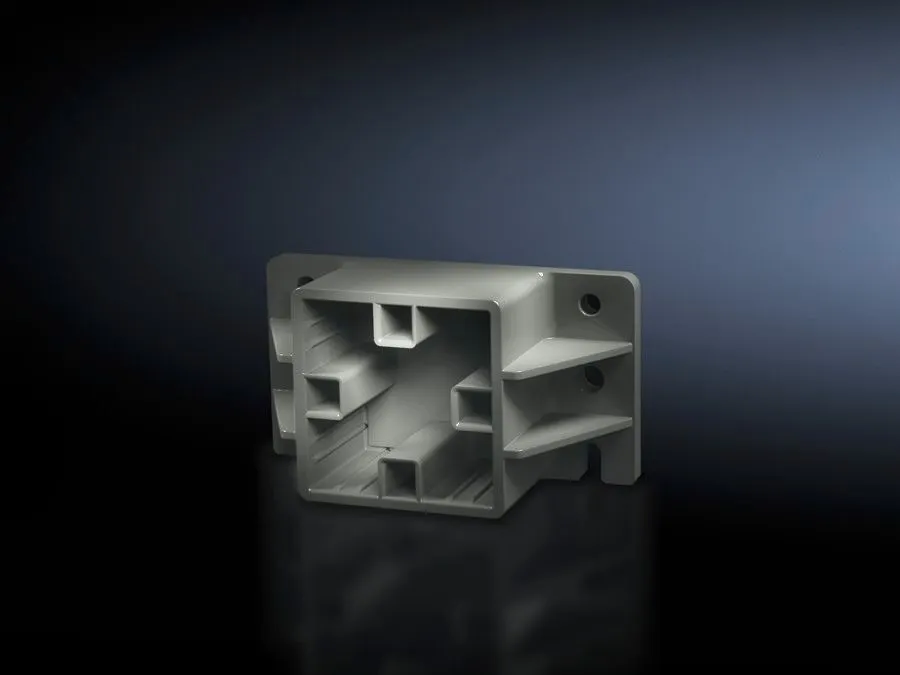

9649010 Rittal: SV End support, Maxi-PLS 1600/2000
Article number
SV 9649.010
Product description
For attaching Maxi-PLS busbars when used as a cable connection system. The stepped configuration ensures simple cable installation.
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Similar to RAL 9011
Supply includes
Assembly parts
To fit busbars
Maxi-PLS 45 S
Packs of
2 pc(s).
Weight/pack
0.276 kg
Customs tariff number
85469010
EAN
4028177400863
ETIM 7.0
EC001166
ECLASS 8.0
27400607
Product description
SV End support, Maxi-PLS 1600/2000
Maxi-PLS compatibility with 45 S busbars is the feature. This ensures secure attachment and reduces misalignment during enclosure assembly, cutting installation time and rework. Use this end support when wiring Maxi-PLS systems in standard control cabinets to streamline commissioning. The stepped configuration for cable installation is another key feature. It guides cables neatly into position, minimizing crossovers and contact resistance while improving traceability in diagnostic checks. The material choice—polyamide with UL 94‑V0 fire protection—is designed for durable, flame-retardant performance in interior enclosures, enhancing safety without adding complexity to the build. Supplied as a two-pack with assembly parts, it supports fast stocking and predictable lead times, reducing downtime during panel updates. Visual consistency is maintained with a RAL 9011-like colour, supporting OEM design standards and reducing revision work. Finally, the inclusion of ETIM 7.0 EC001166 and ECLASS 8.0 27400607 classifications improves procurement integration and data accuracy across enterprise systems, enabling smoother BOM management and repeatable sourcing.
Get a Quick Quote for a Rittal 9649010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9649010?
Enquire Now
FAQs
SV 9649.010 End Support is designed to work with Maxi-PLS 1600/2000 busbars and is compatible with Rittal enclosure concepts that use Maxi-PLS busbars. It aligns with Maxi-PLS 45 S configurations and installs by simple insertion into the side supports, enabling consistent mounting across cabinet rows.
Key specs include article number SV 9649.010, polyamide material with UL 94-V0 fire protection, colour similar to RAL 9011, two-pack packaging, and weight per pack of 0.276 kg. It is designed to fit Maxi-PLS 45 S busbars and includes assembly parts for quick installation.
Yes. The End Support uses UL 94-V0 fire protection material and carries CE-compliance to meet European market safety and conformity requirements. This combination supports safer operation and easier regulatory adherence for assemblies using Maxi-PLS busbars.
The stepped insertion design and compatibility with Maxi-PLS 45 S busbars simplify cable routing and reduce alignment errors. Supplied parts ensure faster assembly, while the two-pack configuration supports ready-to-use spares, lowering commissioning time and enabling repeatable installation across multiple cabinets.
By standardizing end-supports across Maxi-PLS installations, procurement data becomes cleaner through ETIM and ECLASS classifications, aiding automated BOM generation. The durable polyamide and two-pack packaging reduce replacement costs and stock waste, delivering predictable maintenance intervals and improved total cost of ownership for panel builders.
