Rittal 9650171 SV Contact Maker - Maxi-PLS 3200
Part Number: 9650171
Manufacturer
Rittal
Part number
9650171
Category
Alt Part Number
SV 9650.171
Quick Summary
Rittal SV 9650.171 contact maker is designed to connect brackets to Maxi-PLS 3200 busbars in panel assemblies. Engineers commonly face unreliable contact interfaces that drift under vibration, leading to increased resistance and intermittent power delivery. The part is cataloged with ETIM 9 EC002525 and ECLASS 8.0 27400613, supporting standardized procurement and compatibility checks. By leveraging copper contact surfaces and a compact 60x20 mm footprint, this solution offers stable, low-resistance connections that translate into lower operating temperatures and reduced maintenance costs for power management and distribution systems. This combination of material quality and standardization helps streamline sourcing while delivering tangible business value in larger electrical cabinet projects.
Product Information
Extended Description

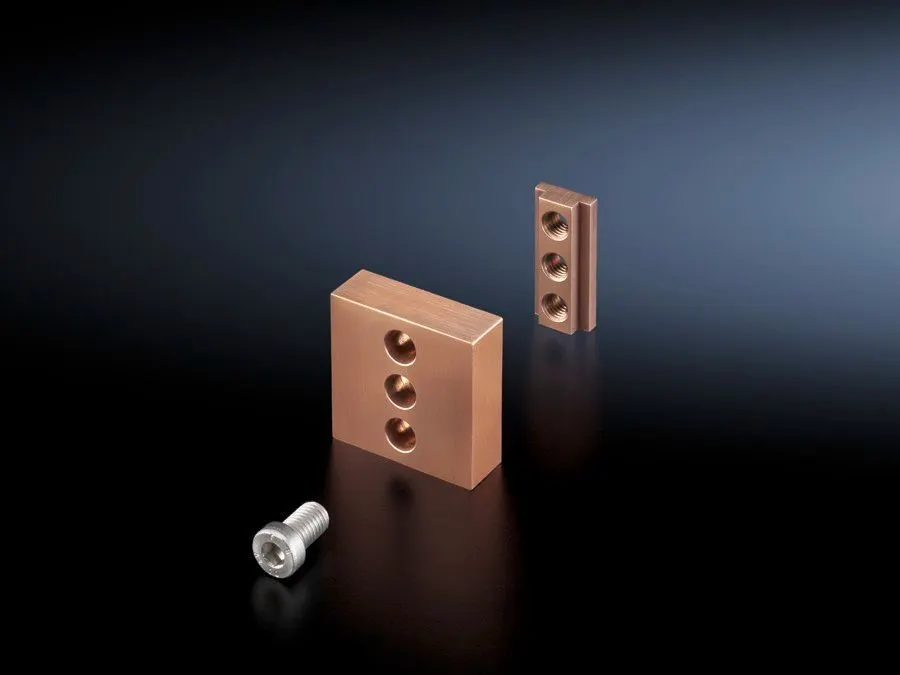

9650171 Rittal: SV Contact maker E-Cu, WH: 60x20 mm, (Maxi-PLS 3200)
Article number
SV 9650.171
Applications
For contacting the connection brackets to the Maxi-PLS busbars
Material
E-Cu
Supply includes
Contact piece | Sliding block | Assembly parts
To fit busbars
Maxi-PLS 3200
Packs of
1 pc(s).
Weight/pack
0.68 kg
Copper weight (kg per piece)
0.65
Customs tariff number
74198090
EAN
4028177643024
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Contact maker E-Cu, WH: 60x20 mm, (Maxi-PLS 3200)
Feature: E-Cu copper contact material provides high electrical conductivity and corrosion resistance → Business Impact: Lower contact resistance and longer service life reduce heat buildup and energy losses in Maxi-PLS busbar systems → Application: Suitable for high-current connections in Rittal power distribution panels. Feature: 60x20 mm WH contact area and a dedicated sliding block included in the supply → Business Impact: Faster, more reliable installation with fewer components to source separately → Application: Accelerates assembly in control cabinets, minimizing downtime during maintenance. Feature: Supply includes contact piece, sliding block, and assembly parts → Business Impact: Complete, ready-to-install kit reduces procurement steps and mismatch risks → Application: Ideal for field upgrades or OEM panel builds that require turnkey connectivity. Feature: Packs of 1 pc(s) and copper weight 0.65 kg per piece (weight/pack 0.68 kg) → Business Impact: Predictable inventory management and traceable material content for cost planning → Application: Supports accurate BOMs for Maxi-PLS 3200 projects. Feature: ETIM 9 EC002525 and ECLASS 8.0 27400613 alignment → Business Impact: Simplified cross-database searches and compliant supplier qualification → Application: Improves RFQ accuracy and procurement speed for electrical distribution programs.
Get a Quick Quote for a Rittal 9650171
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9650171?
Enquire Now
FAQs
This contact maker is designed specifically for Maxi-PLS 3200 busbars. It ships as a complete kit including the contact piece, sliding block, and assembly parts, with a 60x20 mm footprint suitable for standard Maxi-PLS mounting brackets. Follow the included parts and alignment guidelines to ensure a secure, vibration-resistant connection and minimize panel downtime during upgrades.
The component uses E-Cu copper for high conductivity, with a 60x20 mm contact area. Each pack weighs 0.68 kg, and copper weight per piece is 0.65 kg. It is identified as SV 9650.171 and is intended to fit Maxi-PLS 3200 busbars. The supply includes a contact piece, sliding block, and assembly parts to support a complete install.
Yes, the design emphasizes secure mechanical engagement with the Maxi-PLS 3200 busbars and includes a sliding block to maintain alignment under vibration. Copper contact surfaces also resist wear and maintain low resistance. For optimum performance, ensure proper mounting torque and panel tightening to further reduce movement in high-vibration environments.
The part is cataloged under ETIM 9 EC002525 and ECLASS 8.0 27400613, supporting standardization and procurement workflows. There is no explicit SIL, CE, or IP rating listed in the provided data; verify regulatory requirements with your supplier or project specs to ensure full compliance for safety-critical installations.
Copper-based contact interfaces reduce resistance and heat, improving efficiency and extending part life. Supplied as a single-pack kit with all mounting parts streamlines stocking and maintenance, lowering downtime during replacements. In addition, standardized classifications ease sourcing and supplier qualification, contributing to a faster return on investment in larger power distribution projects.
