Rittal SV 9650.181 Contact Maker - Maxi-PLS 3200
Part Number: 9650181
Manufacturer
Rittal
Part number
9650181
Category
Alt Part Number
SV 9650.181
Quick Summary
Rittal SV 9650.181 is a contact maker that connects brackets to Maxi-PLS busbars in electrical cabinets. It addresses reliability challenges in dense panel layouts by delivering precise alignment and a robust copper contact. While specific CE, SIL, or IP ratings aren’t listed here, the product aligns with ETIM EC002525 and ECLASS 27400613, supporting digital catalogs and procurement workflows. This combination minimizes maintenance downtime and ensures dependable connections, delivering smoother installations for Maxi-PLS 3200 busbars. Users benefit from predictable performance and streamlined sourcing for panel builds and retrofits.
Product Information
Extended Description

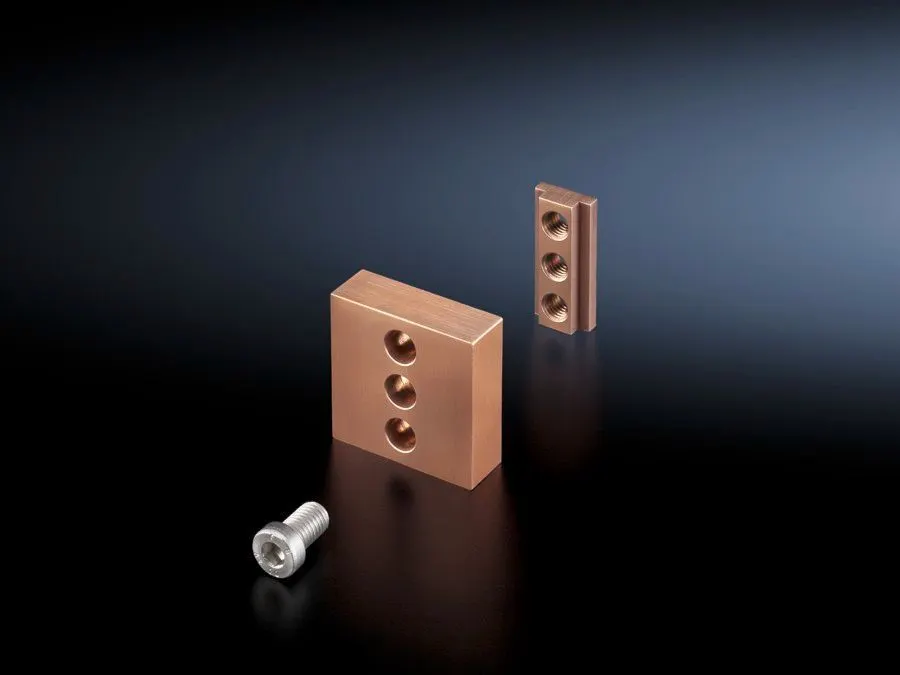

9650181 Rittal: SV Contact maker E-Cu, WH: 100x20 mm, (Maxi-PLS 3200)
Article number
SV 9650.181
Applications
For contacting the connection brackets to the Maxi-PLS busbars
Material
E-Cu
Supply includes
Contact piece | Sliding block | Assembly parts
To fit busbars
Maxi-PLS 3200
Packs of
1 pc(s).
Weight/pack
1.12 kg
Copper weight (kg per piece)
1.08
Customs tariff number
74198090
EAN
4028177643031
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Contact maker E-Cu, WH: 100x20 mm, (Maxi-PLS 3200)
Feature—E-Cu contact material delivers consistently low contact resistance for reliable current transfer. Business impact—this reduces heat buildup, extends component life, and minimizes downtime under high load. Application—ideal for Maxi-PLS 3200 busbars in tight electrical cabinets where stable copper-to-bracket connections are critical. Feature—WH: 100x20 mm footprint provides precise alignment with Maxi-PLS 3200 brackets. Business impact—improves installation accuracy, reduces rework, and shortens commissioning time. Application—suitable for new panel builds and retrofits in space-constrained distribution enclosures. Feature—Supplied with contact piece, sliding block, and assembly parts. Business impact—reduces field labor time, speeds commissioning, and lowers inventory complexity. Application—plug-and-play readiness for service teams replacing worn connectors. Feature—Copper weight 1.08 kg per piece. Business impact—robust, low-resistance current paths with predictable performance. Application—ensures dependable connections in Maxi-PLS 3200 installations. Feature—Packs of 1 piece; Weight per pack 1.12 kg. Business impact—predictable logistics and procurement. Application—easy stocking through standard distribution channels. Feature—ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications. Business impact—simplifies cataloging, ERP integration, and cross-system compatibility. Application—efficient procurement workflows and BOM creation.
Get a Quick Quote for a Rittal 9650181
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9650181?
Enquire Now
FAQs
SV 9650.181 installs by aligning the 100x20 mm E-Cu contact piece with the Maxi-PLS 3200 busbar brackets, then inserting the sliding block and securing with the supplied assembly parts. Ensure correct orientation, verify contact surfaces are clean, and confirm full seating before powering. The kit is designed for straightforward field assembly and minimizes misalignment risk.
Performance relies on copper contact quality and mass. The piece uses E-Cu with a copper weight of 1.08 kg per piece, providing robust conductivity and stable contact resistance under typical Maxi-PLS 3200 configurations. The pack weight is 1.12 kg, supporting predictable handling and consistent electrical paths in panel assemblies.
Yes, SV 9650.181 is designed to contact the connection brackets of Maxi-PLS 3200 busbars. Its 100x20 mm footprint and copper contact piece support reliable current transfer in compact control panels, making it well-suited for industrial automation cabinets where space and electrical performance are critical.
The product data includes ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, which support cataloging and interoperability. While explicit CE/SIL/IP certifications aren’t listed, these classifications help procurement and digital systems validate compatibility with standard industrial specifications.
The included supply components (contact piece, sliding block, assembly parts) shorten field labor and commissioning time. Its robust E-Cu copper contact minimizes resistance and heat, reducing downtime and extending busbar life. The standardized packaging and clear classifications further streamline procurement, BOM creation, and long-term maintenance planning.
