Rittal 9650380 SV Terminal Stud - Maxi-PLS 60
Part Number: 9650380
Manufacturer
Rittal
Part number
9650380
Category
Alt Part Number
SV 9650.380
Quick Summary
SV Terminal stud is the core connection component for secure ring-terminal cables in electrical enclosures. Engineers often struggle with loose terminations and corrosion risk in harsh environments, which this part helps mitigate with robust materials and a precise M16 thread. The design aligns with industry classifications such as ETIM EC002525 and ECLASS 27379201 to streamline procurement and compliance workflows. By delivering reliable, easy-to-install terminations for Maxi-PLS 60 busbars, it supports faster panel commissioning, reduced maintenance, and consistent electrical performance in control panels and power distribution enclosures.
Product Information
Extended Description
9650380 Rittal: SV Terminal stud, M16, L: 32 mm, (Maxi-PLS 3200)
Article number
SV 9650.380
Product description
For connecting cables with ring terminals.
Material

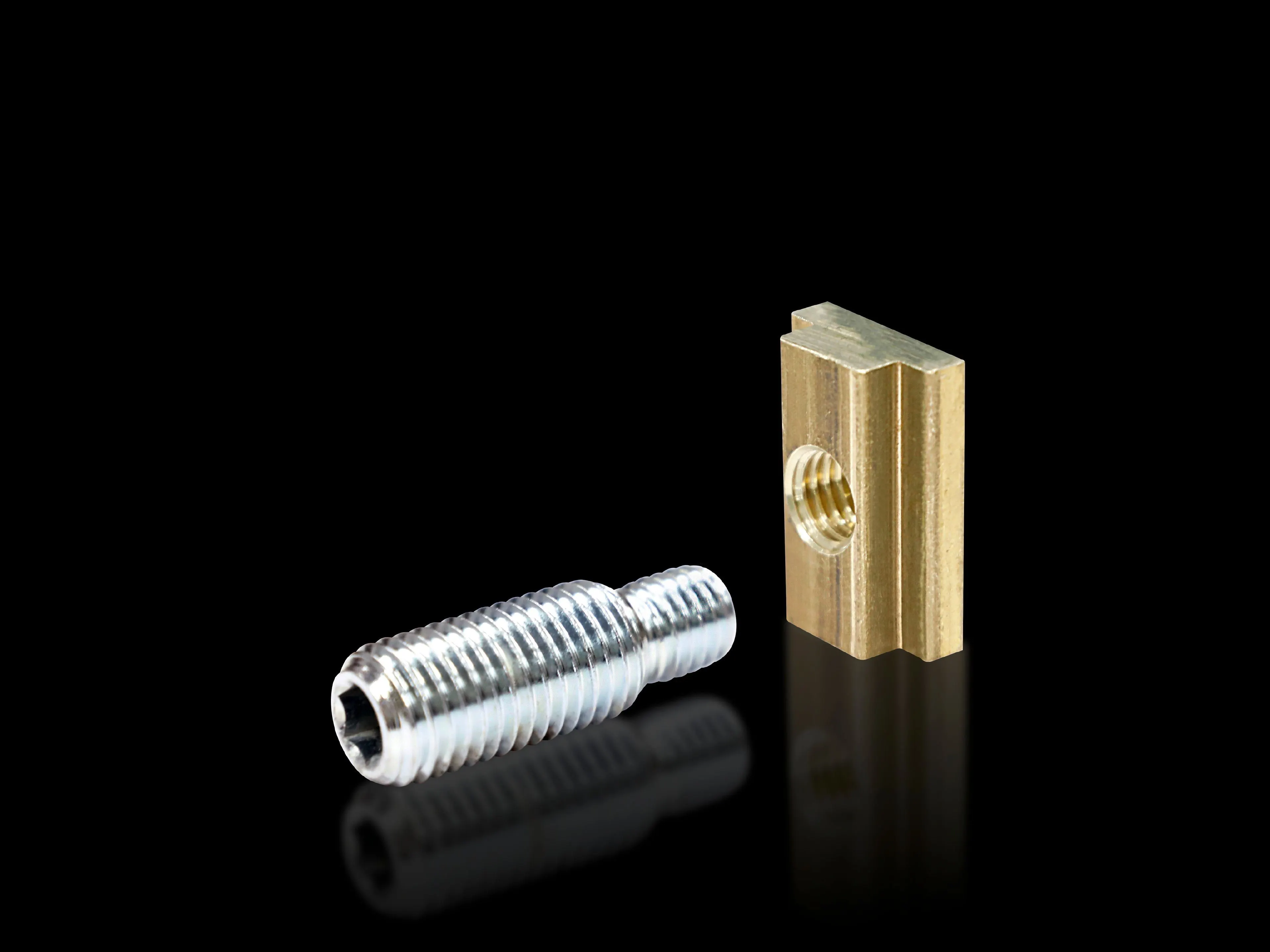

Terminal stud: Steel, zinc-plated | Sliding block: Copper alloy
Supply includes
Terminal studs | Sliding blocks | Assembly parts
To fit busbars
Maxi-PLS 60
Dimensions
Thread: M16 | Thread length: 32 mm
Packs of
3 pc(s).
Weight/pack
0.444 kg
Customs tariff number
74198090
EAN
4028177239555
ETIM 9
EC002525
ECLASS 8.0
27379201
Product description
SV Terminal stud, M16, L: 32 mm, (Maxi-PLS 3200)
Feature → Business Impact → Application: Material and durability—terminal stud in steel with zinc plating and copper alloy sliding block deliver superior corrosion resistance and long service life, reducing maintenance intervals in harsh environments; Ideal for durable power terminations in enclosure-mounted wiring and ring-terminal connections. Feature → Business Impact → Application: Maxi-PLS 60 compatibility ensures correct seating and minimizes misalignment during assembly, improving install time and contact reliability in busbar terminations. Feature → Business Impact → Application: Supplied as 3-piece packs with assembly parts simplifies stocking and field service, enabling faster replacements and standardized maintenance across panels. Feature → Business Impact → Application: M16 thread and 32 mm length provide predictable termination depth, supporting consistent torque control and safer electrical connections in control cabinets. Feature → Business Impact → Application: Material mix (zinc-plated steel, copper alloy) delivers a robust balance of strength and conductivity, ensuring reliable performance in energy distribution tasks within industrial automation environments.
Get a Quick Quote for a Rittal 9650380
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9650380?
Enquire Now
FAQs
To install the SV 9650.380, align the terminal stud with the Maxi-PLS 60 busbar, insert the ring-terminal cable, and secure using the included assembly parts. The M16 thread and 32 mm length ensure the proper engagement depth, while the zinc-plated steel stud and copper alloy sliding block provide reliable contact. Caters to quick commissioning in control panels.
Key specs include M16 thread with 32 mm thread length, terminal stud made from zinc-plated steel and sliding block from copper alloy, supplied as 3 pieces per pack, with a weight of 0.444 kg per pack. It is designed to fit Maxi-PLS 60 busbars and is compatible with ring-terminal cable connections.
Yes. The SV 9650.380 is specifically described for connecting cables with ring terminals and is designed to function with Maxi-PLS 60 busbars in electrical enclosures, delivering secure, reliable terminations and ease of installation in control panels and power-distribution cabinets.
The product aligns with industry classifications such as ETIM 9 EC002525 and ECLASS 8.0 27379201. These classifications support standardized descriptions for procurement, data management, and cross-system compatibility in industrial automation workflows.
The zinc-plated steel and copper alloy construction provide corrosion resistance and durable termination performance, reducing maintenance cycles in harsh environments. The 3-piece pack and bundled assembly parts streamline stocking and field service, lowering downtime and improving total cost of ownership for panel wiring and enclosure-terminals projects.
