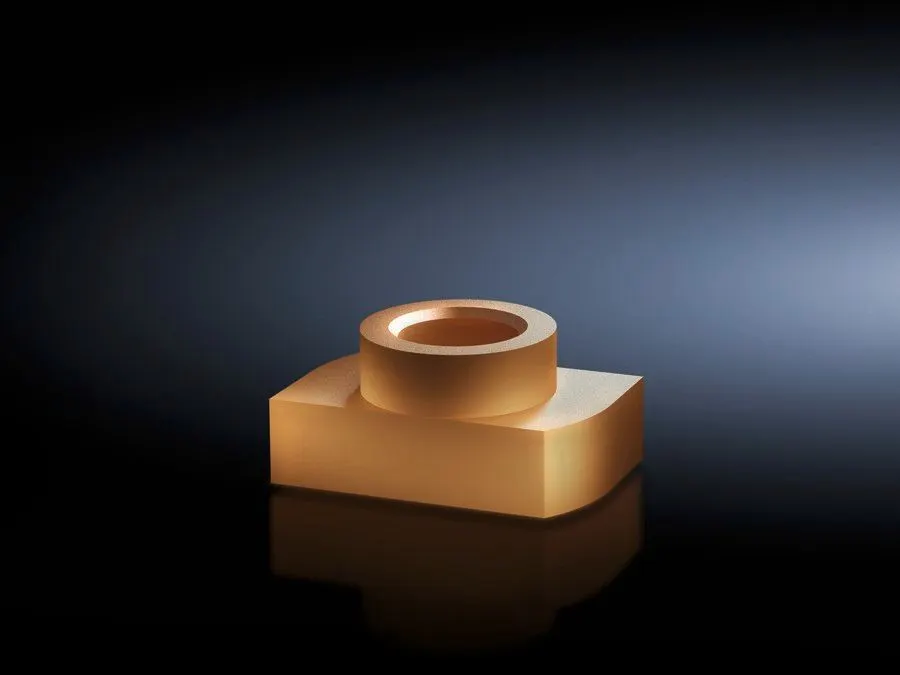

Rittal 9650905 Sliding Nut - Maxi-PLS 60 (M8)
Part Number: 9650905
Manufacturer
Rittal
Part number
9650905
Category
Alt Part Number
SV 9650.905
Quick Summary
Rittal 9650905 Sliding Nut attaches copper bars to Maxi-PLS busbars for efficient power distribution in industrial control panels. Retrofits can disrupt schedules; this slide-in solution minimizes downtime by letting you retrofit without removing existing components. The product aligns with ETIM 9 EC002525 and ECLASS 8.0 23110804 standards, supporting cataloging and cross-system interoperability. With an M8 thread and E-Cu material, the nut delivers reliable, low-resistance connections even in vibration-prone environments. Its Maxi-PLS 60 compatibility ensures a consistent fit across common panel builds, while the three-pack packaging simplifies stocking for ongoing maintenance programs. By enabling quick upgrades, it reduces maintenance costs and improves project timelines for electrical distribution upgrades.
Product Information
Extended Description
9650905 Rittal: SV Sliding nut, M8, (Maxi-PLS 3200)
Article number
SV 9650.905
Product description
For attaching flat copper bars and connection components to Maxi-PLS busbars. For sliding into the busbar section retrospectively and tightening the threaded bolts.
Material
E-Cu
To fit busbars
Maxi-PLS 60
Dimensions
Thread: M8
Packs of
3 pc(s).
Weight/pack
0.075 kg
Customs tariff number
74198090
EAN
4028177662810
ETIM 9
EC002525
ECLASS 8.0
23110804
Product description
SV Sliding nut, M8, (Maxi-PLS 3200)
Feature: Slide-in retrofit design enables retrofitting without dismantling existing busbars. Benefit: dramatically reduces installation time and downtime, lowering labor costs. Application: ideal for Maxi-PLS 60 panel upgrades in space-constrained control cabinets. Feature: M8 threaded copper nut (E-Cu) provides a robust electrical connection with low contact resistance. Benefit: reliable power transfer and resistance to loosening under vibration. Application: suitable for continuous industrial operation where mechanical shocks are routine. Feature: Packs of 3 with a weight of 0.075 kg per pack streamline inventory and logistics. Benefit: lower stocking costs and predictable replenishment. Application: efficient procurement for service teams handling multiple sites. Feature: Designed for Maxi-PLS busbars with 60 mm width and compatible with Maxi-PLS 3200 deployments. Benefit: reduces fit risk and accelerates component standardization. Application: scalable panel design across a growing automation architecture. Feature: Clear product labeling including EAN 4028177662810 and customs tariff 74198090. Benefit: improved traceability and compliance in procurement workflows. Application: supports ERP integration and accurate parts management.
Get a Quick Quote for a Rittal 9650905
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9650905?
Enquire Now
FAQs
Installation is performed by sliding the SV 9650.905 into the Maxi-PLS busbar section and then tightening the M8 threaded bolts. The process is designed for retrofits, enabling you to add copper-bar connections without disassembling existing components. Ensure alignment with Maxi-PLS 60 sections and use standard torque specs for M8 bolts.
The sliding nut is made from E-Cu (electrolytic copper) and uses a metric thread of M8. Each pack contains 3 pieces, with a weight of 0.075 kg per pack. The product is designed to attach flat copper bars and connection components to Maxi-PLS busbars.
Yes, the SV 9650.905 is specified to fit Maxi-PLS 60 busbars and is suitable for retrofitting into Maxi-PLS sections. The extended product description also notes compatibility with Maxi-PLS 3200 in context, which supports broader deployment in mixed Maxi-PLS environments.
The part is cataloged with ETIM 9 EC002525 and ECLASS 8.0 23110804 classifications, aiding interoperability in ERP and procurement systems. The EAN is 4028177662810 and the customs tariff number is 74198090, which helps with import classification and customs processing.
Retrofitting with this sliding nut enables rapid upgrades of Maxi-PLS busbar connections, reducing panel downtime and labor costs. The M8 E-Cu connection delivers reliable performance, supporting long-term operation in vibration-prone environments while simplifying procurement with a 3-pack packaging strategy.
